BLDC stands for Brushless DC Motor. It's a broad category, not a specific motor architecture. Any electric motor that:
…qualifies as a BLDC motor.
That's a wide umbrella. Under it, you'll find motors used in computer cooling fans, washing machines, electric power tools, electric bicycles, and high-performance electric motorcycles. They share the brushless principle but differ enormously in how they're constructed — and that construction is where performance is actually determined.
The most important structural variable inside a BLDC motor is where the permanent magnets are placed on the rotor. That single design decision creates two fundamentally different motor families: SPM and IPM.
SPM stands for Surface Permanent Magnet motor. In an SPM design, the permanent magnets are bonded directly to the outside surface of the rotor.
This is the simpler, older, and more common approach. The magnets are easy to position and the manufacturing process is straightforward, which keeps costs down. SPM motors work well across a wide range of applications and have been the backbone of the electric motor industry for decades.
But SPM motors have a structural limitation that becomes significant under high-performance conditions: the magnets are only held on by adhesive and sometimes a retaining sleeve. At very high rotor speeds, centrifugal force tries to pull those magnets outward. This imposes a ceiling on maximum RPM and limits how aggressively the motor can be driven. It also constrains the electromagnetic geometry in ways that affect efficiency.

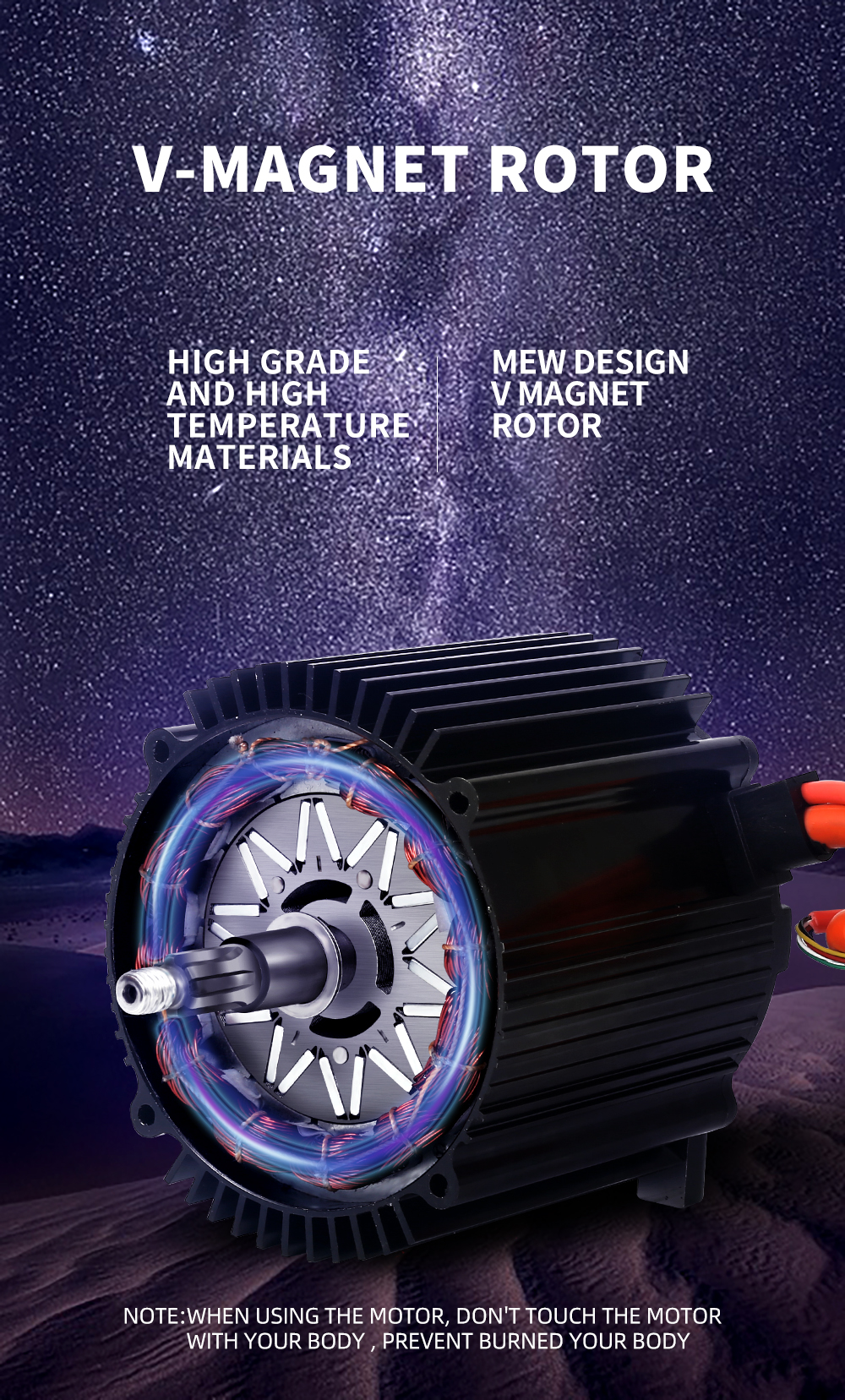

IPM stands for Interior Permanent Magnet motor. The key difference is exactly what the name says: the permanent magnets are embedded inside the rotor core, not bonded to the surface.
This seemingly simple change has a cascade of engineering consequences — almost all of them beneficial for high-performance applications.
This is the most technically significant advantage of IPM motors, and it's worth understanding properly.
In any permanent magnet motor, torque is generated by the interaction between the rotor magnets and the rotating magnetic field produced by the stator windings. This is called magnet torque — and both SPM and IPM motors produce it.
But IPM motors produce a second type of torque that SPM motors cannot: reluctance torque.
Reluctance torque arises from the asymmetry in the rotor's magnetic permeability — the buried magnets create different magnetic resistance in different directions (the d-axis and q-axis, in technical terms). The motor controller can exploit this asymmetry to extract additional torque without increasing current. In effect, you're getting torque from the rotor's geometry itself, not just from its magnets.
In practical terms: an IPM motor produces more torque per amp than a comparable SPM motor. For an e-moto application where battery current is finite and thermal limits matter, this efficiency advantage is real and meaningful.
Because the magnets are inside the rotor rather than on its surface, they're held in place by the rotor laminations — solid metal, not adhesive. This means:
The KR5V V2, for example, peaks at 8000 RPM. Running an SPM motor at that speed over rough terrain with sustained high-torque loads creates real stress on surface-mounted magnets. The IPM architecture handles that operating profile without structural concern.
IPM motors tend to run cooler than SPM motors under equivalent load conditions — primarily because they extract more work from each unit of current (the reluctance torque contribution), so they don't need to push as hard to produce the same output.
For an air-cooled motor in an off-road application — which is exactly what the KR5V V2 is — thermal management matters enormously. A motor that runs cooler under the same load has more thermal headroom for hard use, is less likely to trigger temperature protection cutoffs, and will maintain consistent performance over longer sustained riding sessions.
IPM motors respond well to a control technique called field weakening, which allows the motor to operate at speeds above its base speed by reducing the effective magnetic field strength. This extends the usable RPM range beyond what the motor's back-EMF would otherwise allow.
In e-moto terms: an IPM motor with good field weakening tuning can maintain meaningful torque at higher speeds rather than falling off sharply as RPM climbs. This translates to better high-speed performance and a more linear throttle response across the full speed range — a characteristic that experienced riders notice immediately.
The IPM architecture isn't new — it's been the dominant choice in high-performance electric vehicle applications for years.
Automotive: The motors in the Tesla Model 3 rear drive unit, many BMW i-series drives, and most modern EV traction motors are IPM designs. The reason is the same as in e-motos: efficiency, torque density, and thermal performance under sustained load.
E-Moto: Sur-Ron, Talaria, and E-Ride Pro — the bikes that define the current benchmark in performance electric off-road — all use IPM motor architecture. This isn't a coincidence. The IPM's combination of high torque density, thermal efficiency, and structural robustness at high RPM is exactly what aggressive trail riding demands.
Industrial: High-efficiency servo motors, CNC machine drives, and industrial automation systems where efficiency and precise torque control matter have been using IPM designs for decades.
When you see those brand names next to the KR5V V2 in product descriptions, it's a meaningful comparison — not marketing hyperbole. The motor architecture is genuinely the same class.
The KR5V V2 is explicitly an IPM motor. Understanding the architecture explains several of its real-world characteristics that might otherwise seem like marketing numbers:
The 35 N·m peak torque figure is credible — IPM motors can produce torque spikes significantly above their rated continuous output because reluctance torque adds on top of magnet torque without a proportional increase in current. The current path is more efficient, so peak torque can be genuinely high without immediately cooking the windings.
The temperature sensor matters more than you might think — Not because the motor runs hot (it doesn't, by the standards of high-output motors), but because the KTY84-130 sensor lets the Fardriver controller implement proper field weakening and current derating strategies. The controller and motor work as a system. The sensor is the feedback loop that allows the controller to push the motor intelligently rather than blindly.
The 8000 RPM ceiling is structurally sound — With surface-mounted magnets, 8000 RPM under load is the kind of number that raises engineering questions. With buried magnets held by laminated steel, it's not. The IPM architecture is why that number is in the spec sheet without asterisks.
The IP54 rating and air-cooled design are sustainable together — IPM's thermal efficiency means air cooling is genuinely sufficient for most use cases. An SPM motor producing the same output in the same housing would need more airflow or active cooling to maintain safe temperatures under equivalent conditions.
Honestly? No. You don't need to understand reluctance torque to install a KR5V V2 and have it work well.
But knowing this changes how you think about a few things:
Temperature monitoring becomes less stressful. The 65°C limit isn't a fragile threshold that the motor constantly approaches — it's a conservative safety margin on a motor that, by design, produces less heat than lower-tier alternatives under the same conditions. If you set up temperature protection in the Fardriver app and ride sensibly, you're unlikely to see it trigger under normal use.
You understand why the controller matters. IPM motors require a controller that understands how to exploit reluctance torque — specifically, one that implements proper MTPA (Maximum Torque Per Amp) control. The Fardriver NS18 is designed with this in mind. A generic budget controller might technically run the motor, but it won't extract the full performance potential because it won't be managing the d-axis and q-axis currents correctly.
You can evaluate competing motors more critically. When another motor's listing says "BLDC" without specifying IPM, you now know to ask: is it SPM or IPM? The answer tells you a lot about where that motor sits in the performance hierarchy.
Here's what all of this means in terms you feel on the trail:
More torque where you need it. IPM's reluctance torque contribution adds muscle at low and mid-range RPM — exactly the range where off-road riding happens most. The motor pulls harder for less electrical effort.
Consistent performance across a ride. Because the motor runs more thermally efficiently, performance doesn't degrade over a sustained session the way it can with lower-efficiency designs. The last climb of the day feels like the first.
Higher ceiling for aggressive tuning. If you're running the Fardriver app and pushing current limits higher than the conservative defaults, the IPM architecture gives you more headroom before you hit thermal or structural limits.
Longer motor life. The combination of structural robustness (embedded magnets), lower operating temperatures, and inherently lower current-per-torque demand all point in the same direction: less cumulative stress on the motor over its service life.
BLDC is a category. IPM is a specific architecture within that category. IPM motors embed their permanent magnets inside the rotor rather than on its surface, which produces additional torque from magnetic reluctance (not just magnet interaction), allows higher safe RPM, runs cooler under load, and enables more sophisticated field weakening through the controller. It's the architecture used in Tesla drivetrains, Sur-Ron, Talaria, and E-Ride Pro — and it's what the KR5V V2 uses. If two motors claim the same rated power and one is IPM and one isn't, the IPM motor will perform better under real-world sustained load conditions. That gap is the practical reason the distinction matters.
The KR5V V2 Complete Kit puts IPM motor technology — matched with a Fardriver NS18 controller that knows how to use it — into one ready-to-build package.
