Programmable Electric Motorcycle Controller 80A 100A, Phase Current 260A/300A BLDC Controller For 2KW 3KW 5KW Brushless Motor Fardriver Controller NS12 NS18
About This Items:

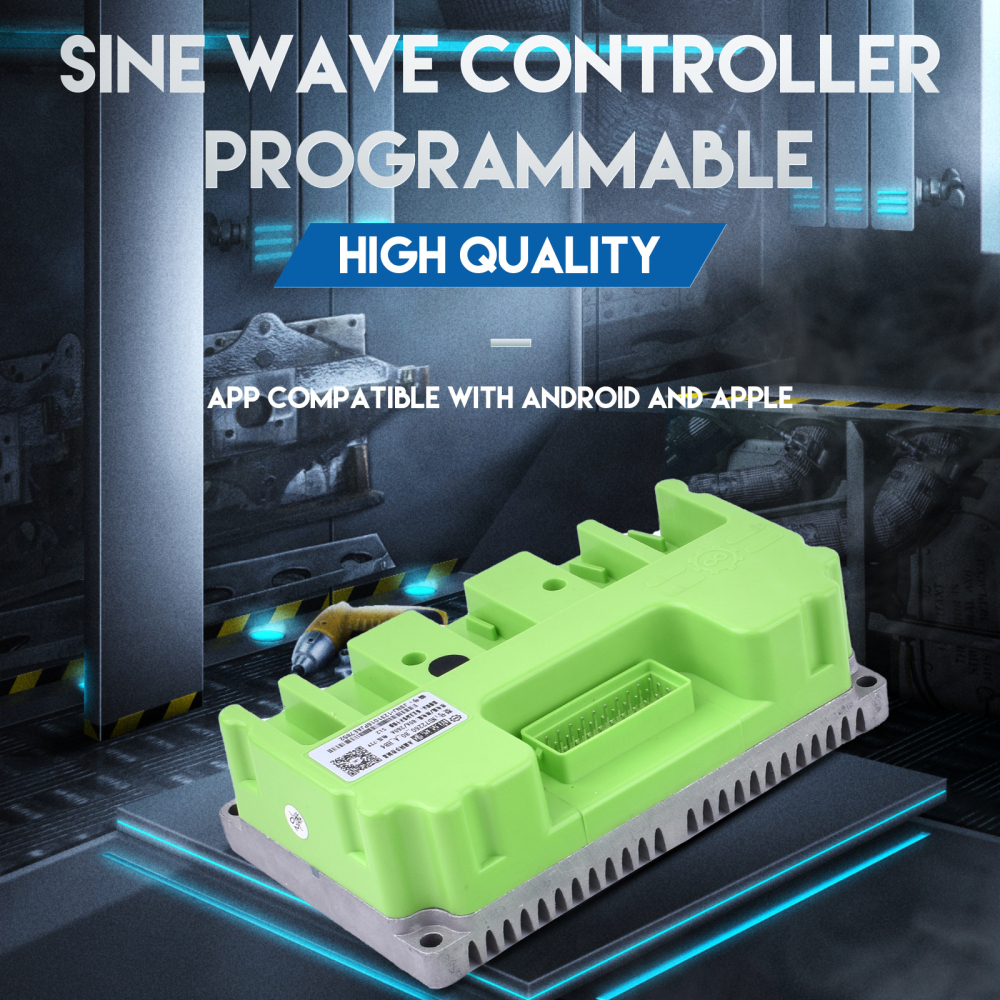

[SINE WAVE CONTROLLER] Feature: FarDriver controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, Kunray Motor,and others, but if you want to match with new brand motor, some parameters should be tested by yourself. It maybe need Program again , and must download the app, and buy fardriver bluetooth.
[ Programmable BLDC Controller] The app compatible with Android and Apple, Android download file in the describe or ask our sales to get it. Apple search in app store “ FARDRIVER”. After you download the APP, you can connect the bluetooth with your telphone to set the controller. The manual download link in the describe.( please see the user guider，Detailed instructions on how to set up)

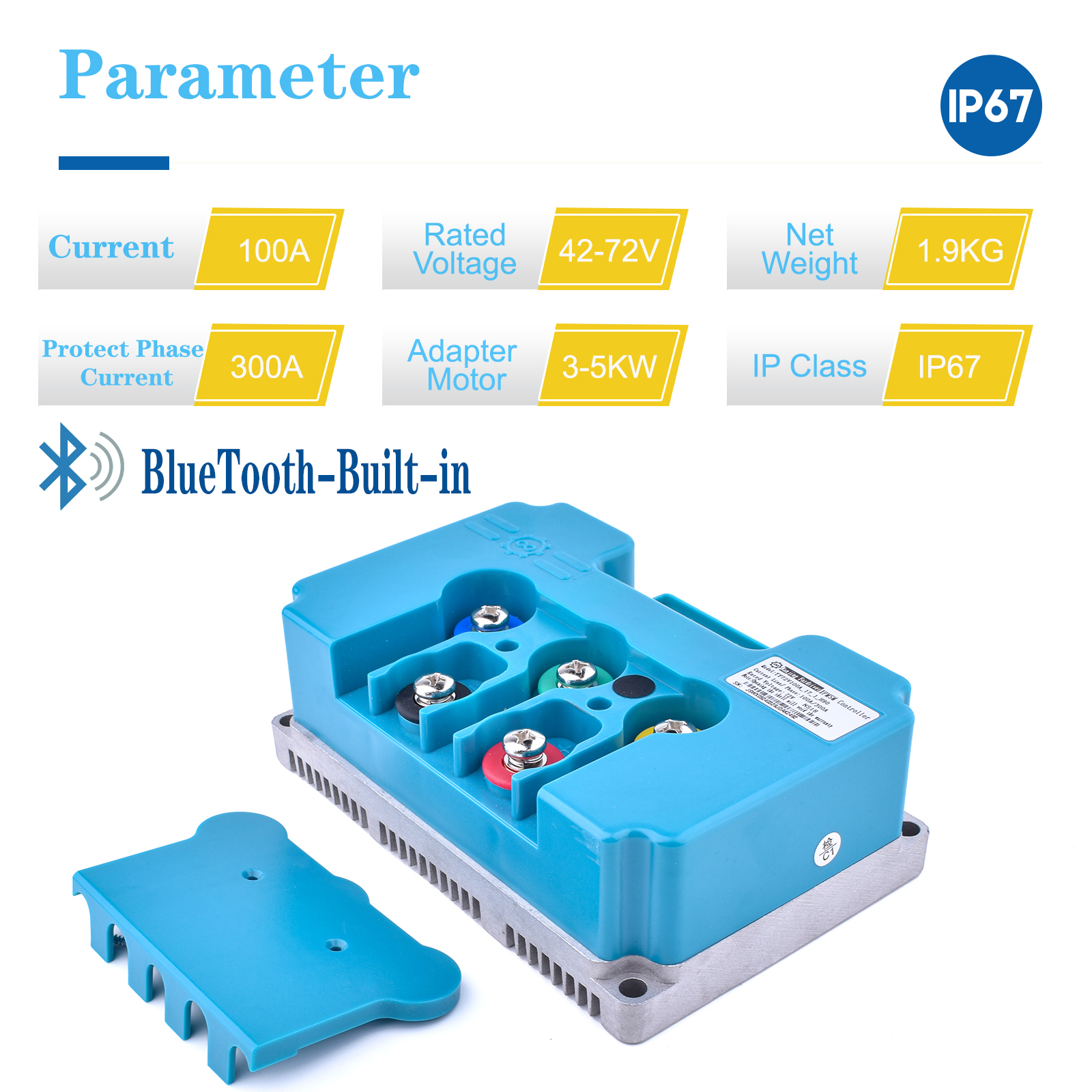

[Electric motorcycle Controller Parameter] NS12 /NS18 are sine wave controller with waterproofing grade IP67, suit for 2-5kw Brushless motors Hall. Rated Voltage 72V, the peak voltage is 88V, it suitable for 48-72V , NS12 rated power: 3KW,NS18 ：3-5KW，NS12: Max DC Current 80A, Phase current 260A, NS18: Line Current 100A,Phase Current 300A, Net Weight 1KG, It’s hall version (as default) which suit with hall motors.
[Electric Dirt Bike Upgrade] All the raw materials are imported, using high-performance Moss tube
With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board.
Small in size, High efficiency, low temperature rise, small running current With self-learning function, excellent commonality, With flux weakening function.(The product does not contain magnetism) It suit for electric Motorcycle Motor and other type Motors.
