Are you tired of the tame performance of your stock electric bike? Do you dream of kicking up dirt on the trails or dominating the go-kart track? The answer lies in a powertrain upgrade. Today, we're putting the spotlight on the KUNRAY KR5V V2—a 5000W beast engineered to transform your electric dirt bike, motorcycle, or go-kart into a heart-pounding speed machine. If you’re seeking a high-torque, high-power motor that’s built for both performance and affordability, the KR5V is a standout choice.
Let's look beyond the numbers and see what they mean for your ride.

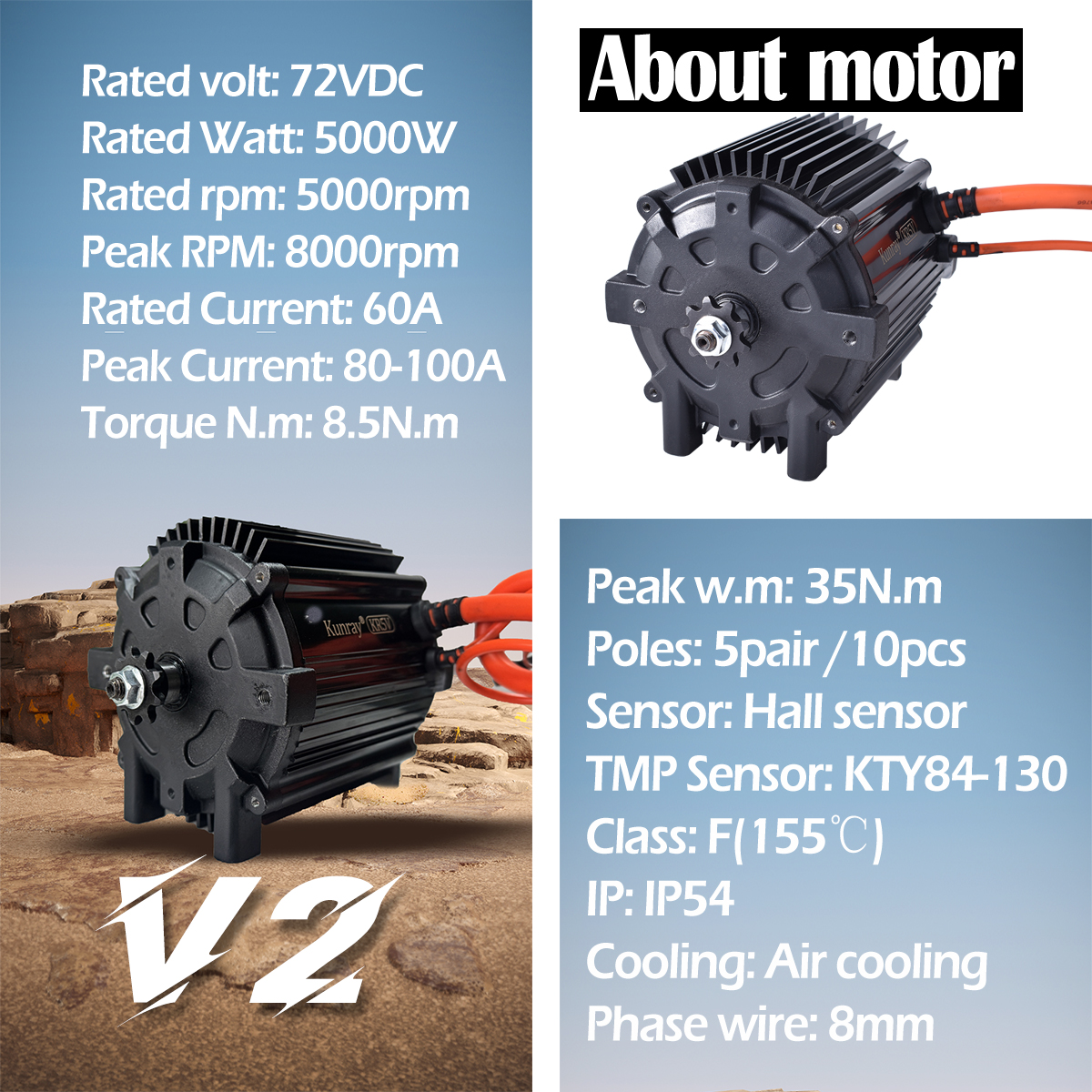

Power Output (5000W Rated / 10000W Peak): Think of this as your "cruising confidence" and "instant rocket boost." The rated power ensures sustained speed, while the peak power gives you that explosive acceleration for overtaking or climbing steep hills.
Torque Output (8.5 N.m Rated / 35 N.m Peak): This is the "neck-snapping" force that pulls you off the line. This high torque output is what enables wheelies, conquers rocky inclines, and provides thrilling acceleration out of corners.
IPM Motor Technology: The KR5V V2 is an Interior Permanent Magnet (IPM) motor, the same technology trusted by top-tier brands like Sur-Ron, Talaria, and E-Ride Pro. IPM motors are renowned for their high efficiency, reliability, and excellent thermal performance, making them the go-to choice for serious e-moto builds.
1. Electric Dirt Bike: Master the Trails
Goal: Brutal low-end torque, jump stability, and mud-proof reliability.
Setup Recommendations:

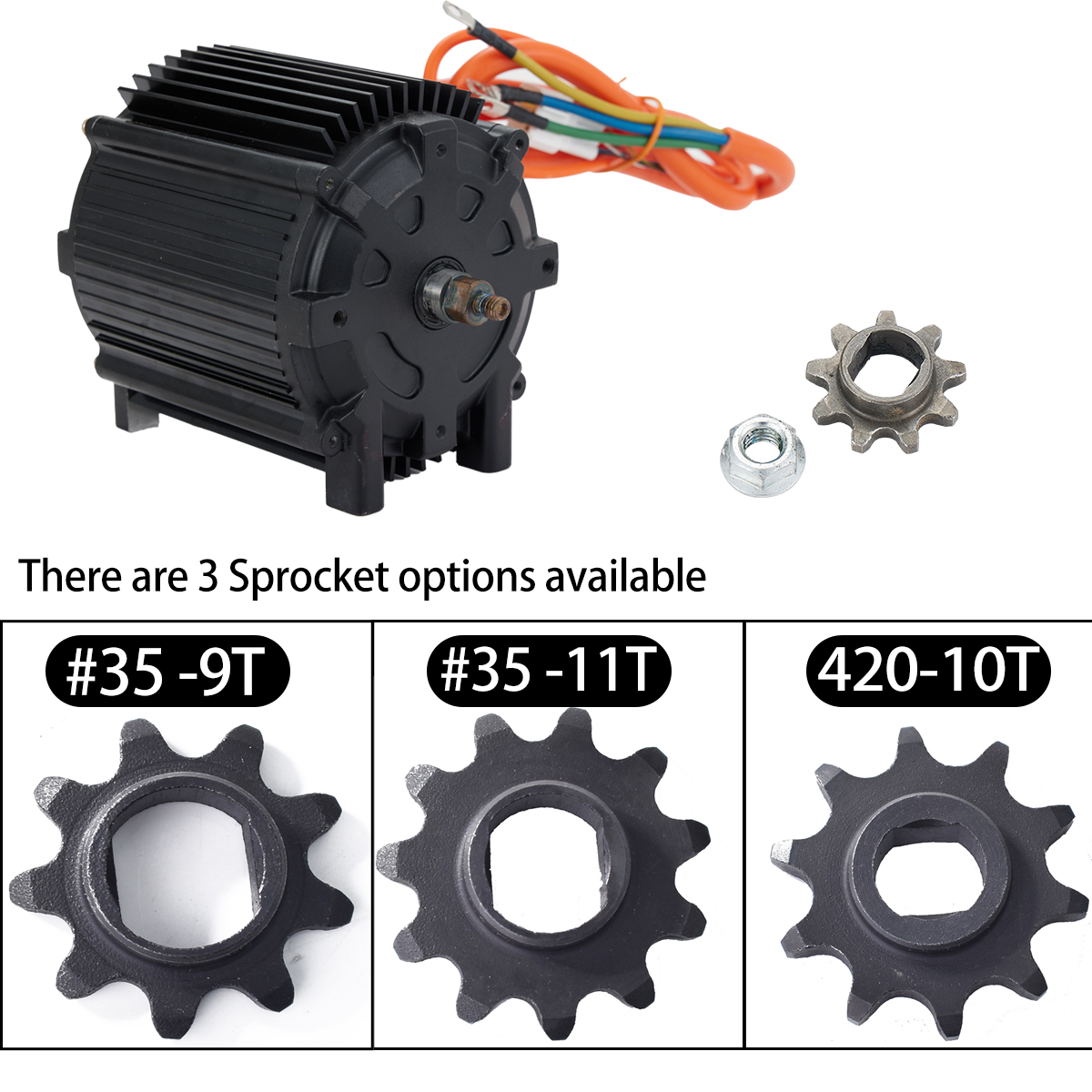

Sprocket Choice: Opt for the #35 11T sprocket to maximize torque multiplication for climbing and technical terrain.
Controller Pairing: Pair with a controller capable of delivering 100A+ phase current to fully unleash the motor's 35 N.m peak torque.
Durability Advantage: The V2's IP54 waterproof rating, reinforced casing, and thickened mounting points (now 12/15mm) are built to withstand the impacts and vibrations of hardcore off-road riding.
2. Electric Go-Kart: Dominate the Track
Goal: Higher top speed and blistering corner-exit acceleration.
Setup Recommendations:
Sprocket Choice: Experiment with the 420 -10T or a smaller tooth-count sprocket to achieve a higher gear ratio for more top-end speed.
Real-World Performance: As one builder reported: "With a 6.0 gear ratio we are hitting 60MPH at full battery on 72 volt with 100 line amps." Your final speed will vary based on rider weight, wheel size, and setup, but this demonstrates the motor's incredible potential. The 8000 rpm peak speed is your key to unlocking high velocity.
3. RAZOR MX Series & Other E-Motorcycles: The Ultimate Plug-and-Play Upgrade
Goal: A direct, bolt-on replacement that doubles performance.
Setup Recommendations:
Perfect Compatibility: This motor is a direct fit for popular models like the RAZOR MX650, MX500, SX500, and RSF650.
Installation Stability: The V2's upgraded 17mm motor shaft and enlarged mounting holes ensure a rock-solid connection, eliminating the flex and play often found in lesser motors.
⚠️ CRITICAL WARNING: Manage the Heat!
The number one killer of high-performance motors is heat. As per the manufacturer's warning: "Do NOT Exceed 150 Degrees Fahrenheit (65 Celsius). This Could Result in Motor Failure."
The built-in KTY84-130 temperature sensor is your best friend. Use a compatible controller or display that allows you to monitor real-time temperatures.
Avoid sustained full-throttle climbs on hot days. Allow the air cooling system to do its job.
Building a Balanced High-Performance System:
A motor this powerful demands supporting components.
Battery: You need a robust 72V battery with a high discharge rate (continuous C-rate) to supply the 60A-100A peak current the motor can draw.
Controller: This is the brain. A quality 72V controller properly tuned is essential to manage the power delivery efficiently and safely.
Drivetrain: Use a high-quality #35 or 420 chain and maintain proper tension. The brutal torque will expose any weak link.
The KUNRAY KR5V V2 is more than just a component; it's a soul transplant for your ride. It combines brutal torque, a reinforced structure for unmatched reliability, and wide sprocket compatibility into an incredibly affordable package. It makes the dream of 60 MPH top speed a tangible reality and makes every twist of the throttle an event.
Ready to unlock insane acceleration and power? The KR5V V2 is waiting to become the heart of your next ultimate e-moto project.
