Vetting a Brushless Motor Supplier
Every rebuild reaches the same question sooner or later: which brushless motor manufacturer will still answer the phone when a sensor fails eighteen months from now? The same discipline applies when you shortlist an electric motorcycle motor supplier for a run of mini builds. This guide is an eight-point test you can run before money changes hands — and Kunray's own MY1030 documentation is the worked example at every step.
Mid-drive formatKart, drift trike and mini e-moto builds
KTY83-122 sensorBuilt into the housing
Ships from US or CNChosen at checkout
Step 0
Manufacturer, Assembler, or Reseller?
Three words get used interchangeably in motor listings, and the difference between them decides whether spares, warranty and documentation still exist three months after delivery. Settle the vocabulary first — every test later on this page measures a supplier against it.
Manufacturer
Builds the platform
A manufacturer designs the motor platform, holds tooling for the housing and shaft, and publishes specifications its own engineering team stands behind. The loudest tell is lineage: a documented predecessor and a named successor with a stated reason for the change.
Kunray's MY1030 is published as the upgraded next-generation motor built on the proven MY1020, and the housing carries the maker's "R" brand mark rather than an anonymous plate.
What you can ask forWhich motor this replaces, and exactly what changed in the new version.
Assembler
Combines bought parts
An assembler buys stators, housings and shafts from other factories and bolts them into a package. The motor can still work well, but the paperwork usually stops at the box label: no published sensor type, no sprocket tooth count, no service route.
The risk lands on you at the repair bench, because the party holding the specification is not the party that sold you the motor.
What you can ask forWhich components are in-house, which are sourced, and who services them.
Reseller
Sells someone else's stock
A reseller lists other people's inventory under a storefront name. Prices can be sharp and delivery fast, but there is rarely an engineering contact, a spare sprocket shelf, or an answer when a warranty claim needs a specific part.
Ask early, because the answer is cheapest to act on before the order exists.
What you can ask forWho actually fulfils the warranty, and where that commitment is written down.
The framework
The 8-Point Evaluation Checklist
Run these eight tests in order. Each one links to the section further down where it is worked through, so the checklist doubles as navigation rather than a wall of advice.
01 Specification honesty Rated figures, voltage options and mounting variants are published, not implied. Go to the test 02 Repairability A sensor fault should be a bench repair, not a scrapped motor. Go to the test 03 Sprocket and shaft documentation Real tooth counts and shaft details instead of "fits most". Go to the test 04 Thermal management Heat shedding and heat sensing designed into the housing itself. Go to the test 05 Sensor wiring disclosure Which connector, which controller input, and what happens without it. Go to the test 06 Spares availability Sprockets, brackets and sensors you can still buy after the sale. Go to the test 07 MOQ realism A workable minimum for one rebuild and for a workshop batch. Go to the test 08 Support responsiveness A named channel that answers fit, wiring and warranty questions. Go to the test
Test 1
The Spec Sheet Test

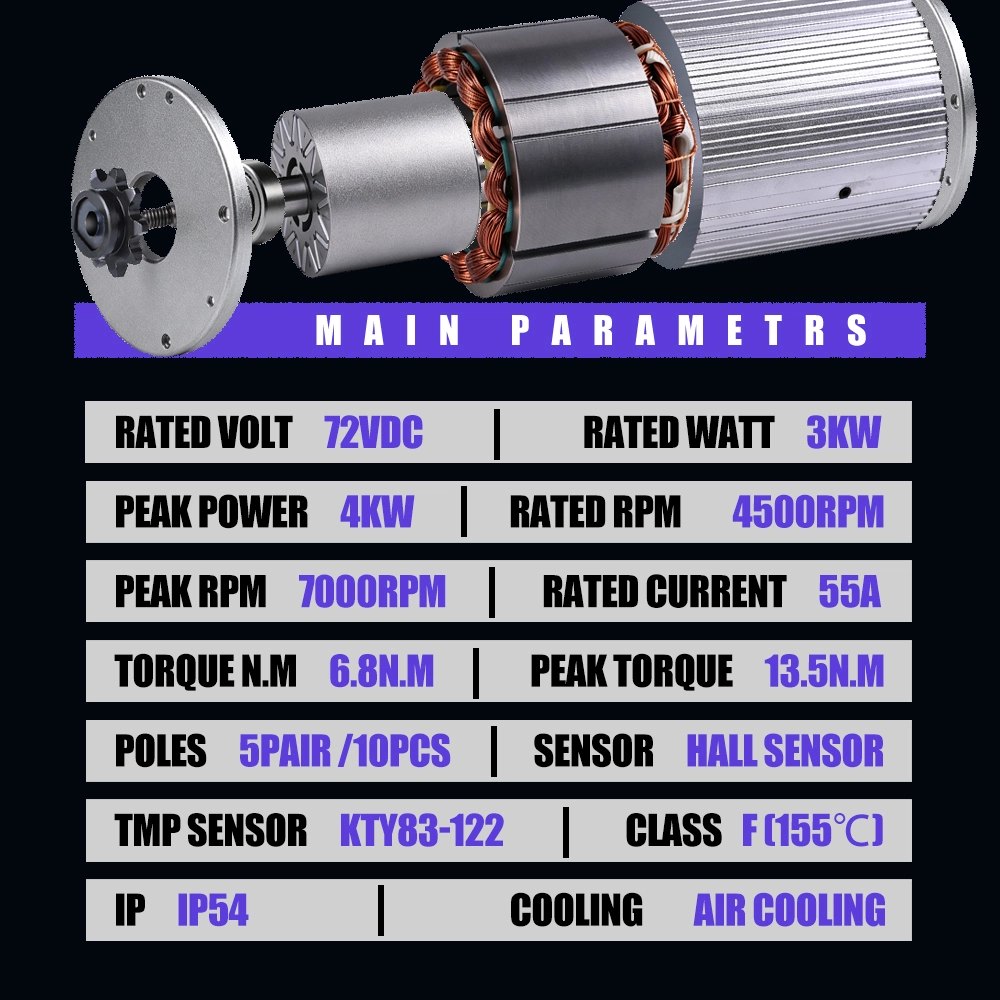

A marketplace listing sells a feeling. A datasheet lets you check a number. Read both side by side and the difference is usually obvious within ten seconds — the vague column is short, confident and useless; the documented column is longer and boring in exactly the way you want.
| Checkpoint | Vague listing says | Documented spec says |
|---|---|---|
| Power | "High power 3000W brushless motor" | 72V 3000W, with a parameter selector running from 36V 1000W through 48V and 60V steps to 72V 3000W. |
| Mounting | "Universal fit" | Two published options: with bracket or without bracket — described as the same motor with different mounting hardware. |
| Drive interface | "Fits most chains" | Five listed sprockets: 25H 11T, T8F 11T, #35 9T, #35 11T, and 420 10T available on request. |
| Heat | "Runs cool" | Integrated cooling fins on the housing, plus a built-in KTY83-122 temperature sensor. |
| Service | "Long life, no maintenance" | External Hall sensor, reachable without stripping the motor down, described as easy to service. |
| Supply | "Fast worldwide shipping" | Ships from US or CN, selected as a required option before purchase. |
Buyer decision
A supplier who cannot state the voltage configuration, the bracket variant and the sprocket tooth count before you order will not be able to state them after a failure either. If two of those three are missing, treat the listing as an assembler or reseller until proven otherwise.
Test 2
The Repairability Test: Can You Reach the Sensor?
The Hall sensor is the most common failure point on a brushless motor, and its mounting decides what that failure costs. Reachable means a bench repair. Potted or sealed inside means a new motor, a new order and a lost weekend.
- 1 External Hall sensor Reachable without stripping the motor down, so a sensor fault is a repair rather than a replacement. The product page describes it as easy to service.
- 2 Sealed output shaft Water, grit and mud stay out of the bearing end on wet tracks and dusty circuits — the part of the motor that dies first on off-road builds.

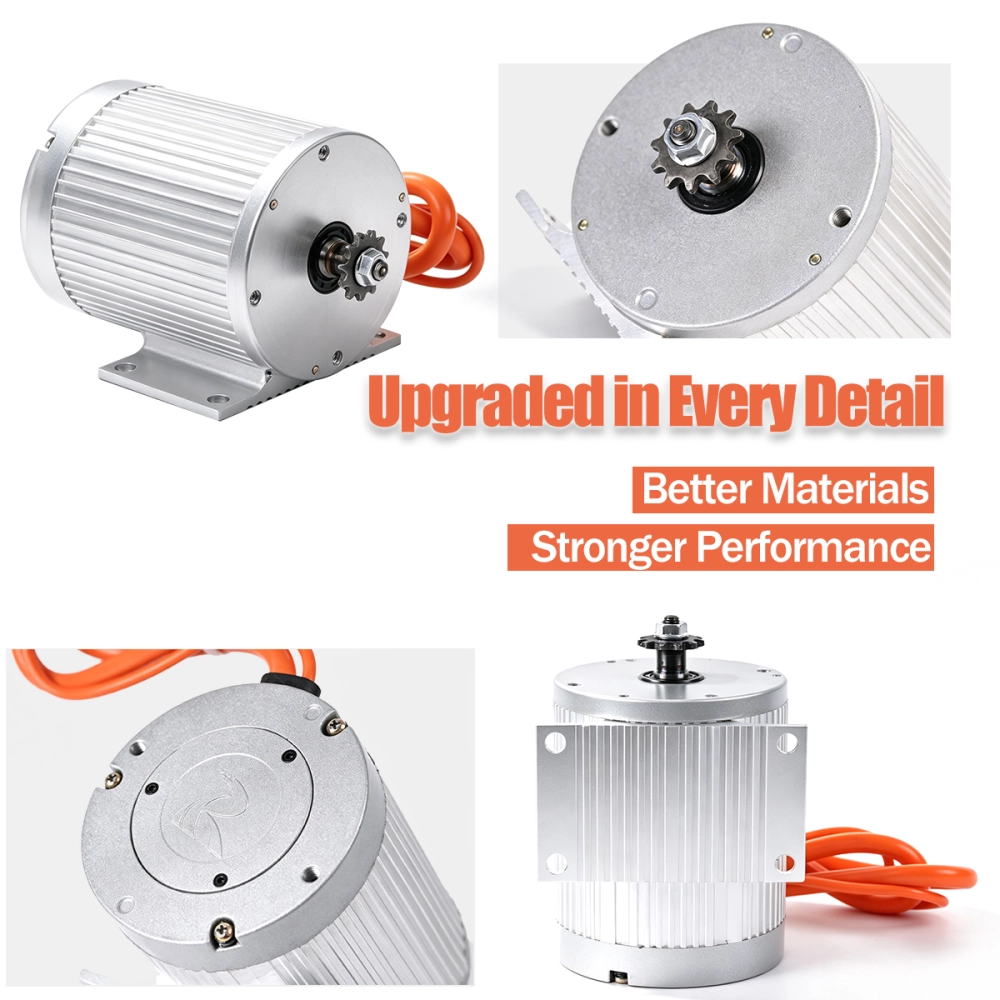

- 3 Integrated cooling fins The housing sheds heat on its own, so there is no separate heat sink cover to buy or fit, and nothing extra to lose on a rebuild.
- 4 KTY83-122 temperature sensor Built into the housing and reporting how hot the motor is running — but only to a controller or display that can read the signal.
Buyer decision
Before ordering, ask how the sensor is accessed. If the answer is "sealed, so replace the unit", price that replacement into the whole build, not just the first purchase — a shop running six karts will meet that failure repeatedly.
Test 3
The Compatibility Test: Sprocket and Shaft Documentation
Gearing is where a build quietly succeeds or fails, and it is the easiest thing for a supplier to hide behind. A shop that publishes real tooth counts has already done the fit thinking for you — and a shop that publishes none is asking you to gamble a weekend on "fits most".
| Sprocket option | Where it fits | Gearing consequence |
|---|---|---|
| 25H 11T | The lightest of the five options. | Typical of compact ride-on drivetrains. |
| T8F 11T | The chain used on many electric scooters and mini bikes. | The usual match for those frames. |
| #35 9T | One tooth below the standard #35. | Lower gearing and more pull on hills or with heavier riders, at the cost of some top speed. |
| #35 11T | The standard #35 ratio. | The balance most kart and mini-bike builds are after. |
| 420 10T | Available on request for heavier chain setups. | State the tooth count you need when you order. |
Buyer decision
Count your chain first, then pick the tooth count that suits the terrain. Hill-heavy karts and heavier riders want the #35 9T trade; flat circuits where top speed matters want the standard #35 11T. If you need a heavier chain setup, the 420 10T request has to be raised at order time, not after delivery.

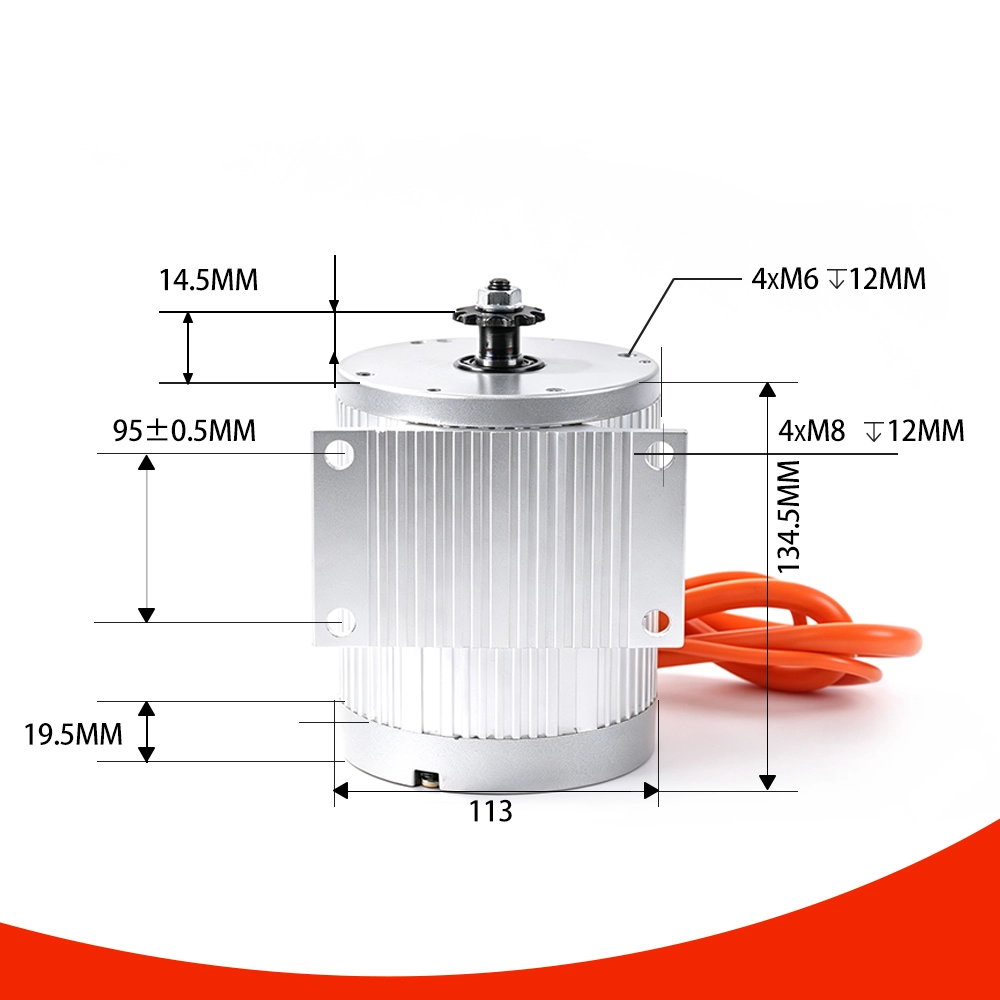

Shaft and bearing end
The output shaft is sealed so water, grit and mud stay out of the bearing end on wet tracks and dusty circuits — a wear item that most listings never mention at all.

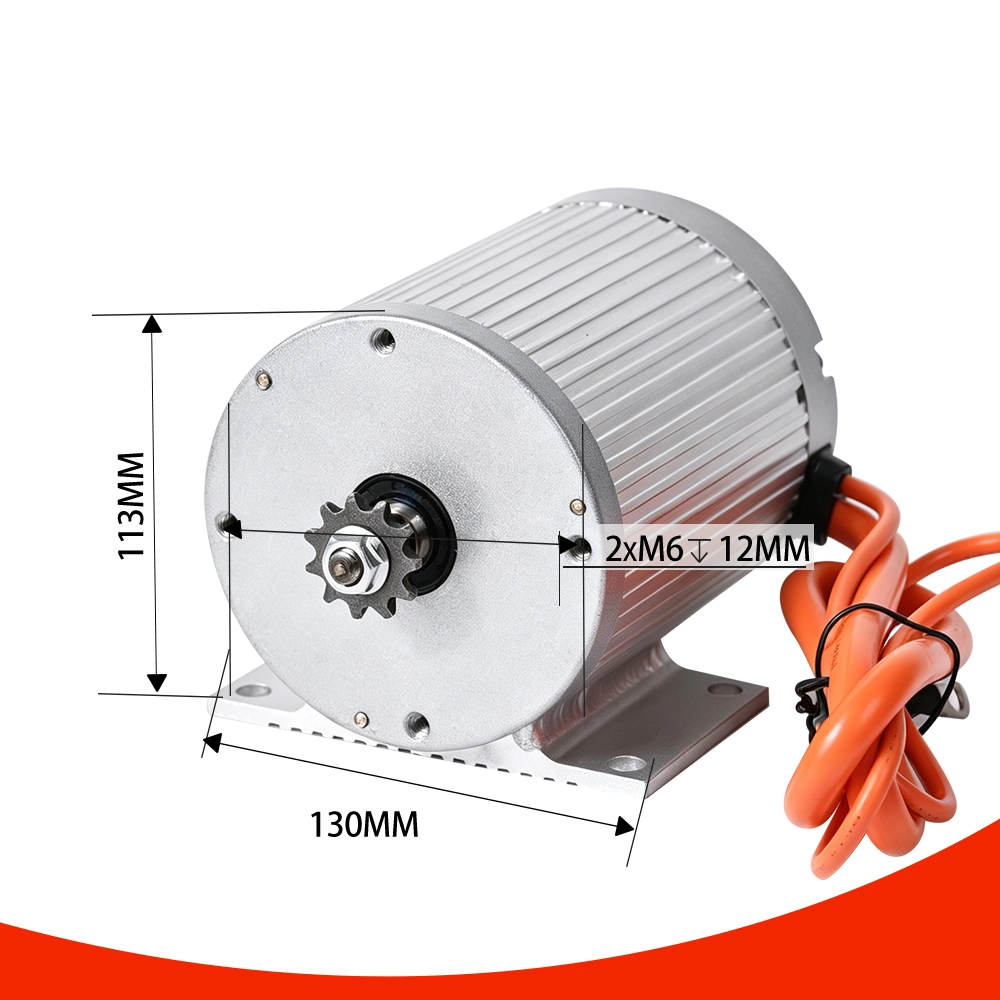

Mounting envelope

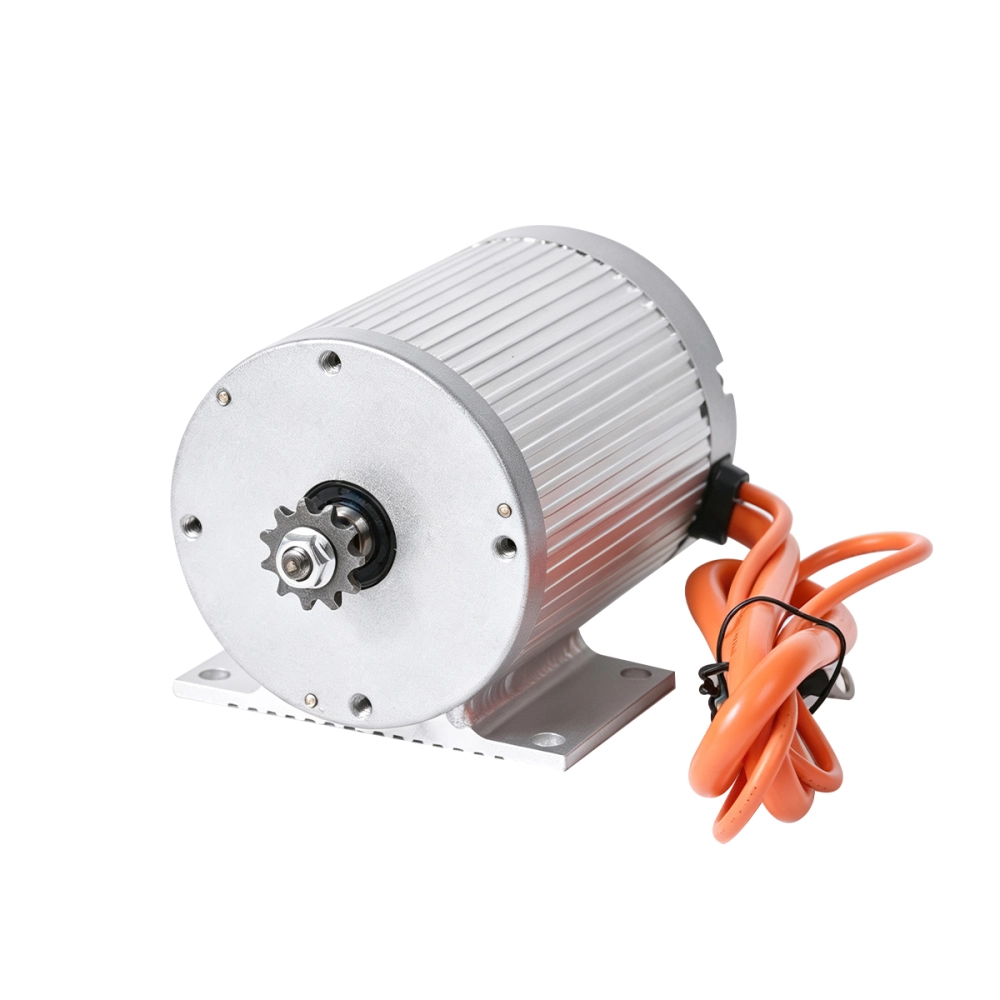

With bracket or without bracket, both described as the same motor with different mounting hardware. Order the version that matches the frame you already have drilled and welded.
Same mid-drive format
The MY1030 keeps the position of the motor it replaces, which is what lets a rebuild keep the battery, controller and chain that are already fitted.
Tests 4 & 5
Thermal Management and Sensor Wiring Disclosure
Heat is what converts a working build into a support ticket, and the supplier's own documentation opening line usually admits it: performance depends on adequate cooling, correct controller settings and the temperature protection being properly implemented. The evaluation question is whether the supplier tells you how.
- A Passive heat shedding Integrated cooling fins on the housing mean heat leaves through the case. No separate heat sink cover to buy, fit or lose.
- B Live temperature reporting The KTY83-122 sensor reports how hot the motor is running, and the page states that real-time monitoring helps protect the motor from overheating on demanding builds.
- C The honest caveat To use the sensor you need a controller or display that accepts a temperature input, plus the matching connector. Without that input the motor runs normally, but you lose the live reading.
- D What to request in writing Ask for the sensor type, the connector it uses, and which controller inputs will read it — before the order, not after the first hot run.
Buyer decision
A disclosed caveat is a good sign, not a bad one. If a supplier advertises a temperature sensor without telling you what it takes to read that signal, you are buying a feature you may never actually see. If your controller has no temperature input, either change the controller or accept that the protection is dormant.
Application fit
From Build Scenario to Specification
Fit is decided by four things before anything else matters: the chain already on the vehicle, the system voltage, the mounting style, and whether the controller can read a temperature signal. Work down the middle of this table until you reach your own build.
| Build scenario | What to check first | What that points to |
|---|---|---|
| Electric go-kart needing more pull than the stock motor | Chain type and the hills or rider weight the kart actually sees | #35 9T for lower gearing and more pull, accepting some top speed; #35 11T for the standard balance. |
| Drift trike, short-geared and running hard | Whether your controller or display reads a temperature input | The 72V 3000W configuration with the KTY83-122 sensor, plus a controller that can use the reading. |
| Razor MX650 / MX500 / SX500 rebuild | Whether the motor has failed rather than the controller | A direct replacement in the same mid-drive format: keep the battery, controller and chain already fitted. |
| Mini e-motorcycle in a compact frame | Available envelope and whether a bracket is needed | 72V 3000W with or without bracket, plus one of five sprockets to match the frame. |
| Wet or dusty circuit | How the output shaft end is protected | Sealed output shaft that keeps water, grit and mud out of the bearing end. |
| Workshop batch or repair bench | Which sprockets, brackets and spares you want held back | Raise the mix at quote stage so a single spare covers several builds. |
Tests 6, 7 & 8
Spares, Order Size and a Straight Answer
Send these five details and you get a fit answer rather than a catalogue link. Bulk quantities, workshop spares and made-to-order sprocket counts are all handled as quote requests, including heavier chain setups where you name the tooth count you need.
- Chain type already on the vehicle, and the tooth count you want
- System voltage and the power configuration you are targeting
- With bracket or without bracket
- Whether your controller or display accepts a temperature input
- Quantity for the build, plus any spares you want held back
Related Products
Keep adjacent product options together for a faster catalog comparison.
Kunray KR5V V2 New Upgrade Electric BLDC Motor 72V 5000W Upgrade Electric Motor For Razor
72V 5000W brushless DC electric motor with built-in temperature sensor and #35 or 420 sprocket options for Razor, dirt bike and go-kart builds.
View product
Kunray KR5V V2 72V 5000W New Upgrade Electric Brushless Motor
Kunray electric dirt bike motor kit with 72V 5000W mid-drive motor, NS18 Fardriver 100A Bluetooth controller, LED throttle and #35 chain set.
View productFrequently Asked Questions
how can i tell whether a motor seller actually makes the motor?
ask what the platform replaces and what changed. a maker can point to a predecessor and its successor: the my1030 is published as the upgraded next-generation motor built on the proven my1020, and it carries the maker's "r" brand mark rather than an unlabelled housing.
what should a motor datasheet include before i order?
at minimum the voltage and power options, the mounting variants, real sprocket tooth counts, the sensor type and the shipping origins. the my1030 publishes a parameter selector from 36v 1000w to 72v 3000w, with-bracket and without-bracket mounting, five sprocket choices and a kty83-122 temperature sensor.
can a hall sensor fault be repaired instead of replacing the motor?
on the my1030 the hall sensor is external and reachable without stripping the motor down, which the product page describes as easy to service. that turns a sensor fault into a bench repair rather than a full replacement.
will the temperature sensor work with my controller?
only if your controller or display accepts a temperature input and you have the matching connector. without that input the motor runs normally, but you lose the live temperature reading and the protection it supports on demanding builds.
which sprocket should i order for my build?
match the chain already on the vehicle. 25h 11t suits compact ride-on drivetrains, t8f 11t matches many electric scooters and mini bikes, #35 9t gives lower gearing and more pull on hills at some cost in top speed, #35 11t is the standard balance for kart and mini-bike builds, and 420 10t is available on request for heavier chain setups.
how do i set up a workshop or bulk order?
send the chain type, the target tooth count, the system voltage, the vehicle or frame model, and whether your controller reads a temperature input. bulk quantities, spares and build-specific sprocket requests go through the contact page so the answer covers the whole batch rather than one motor.
