Consistent Power for Diverse Applications

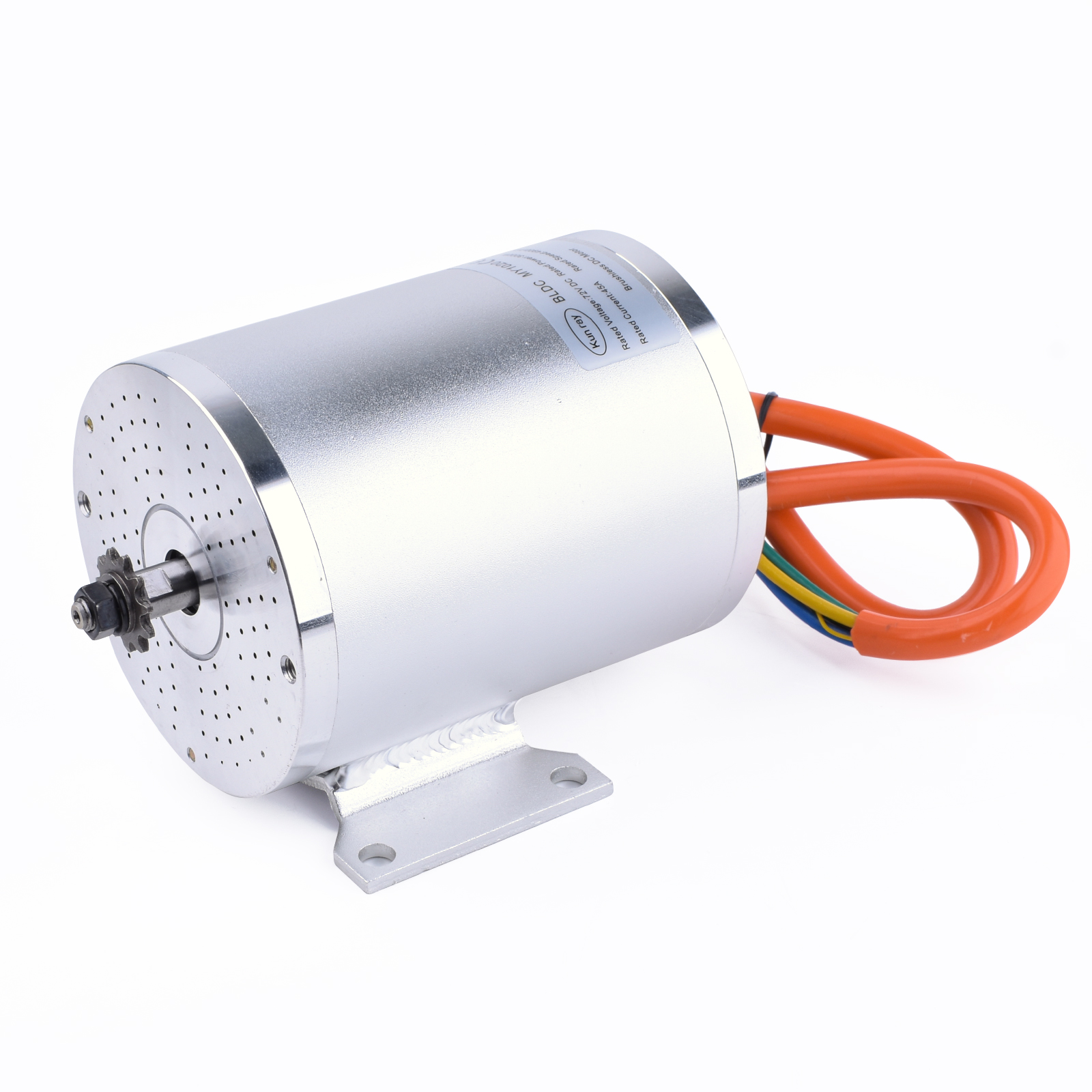

Whether you’re upgrading a scooter or building a custom go-kart, the MY1020 motor is ready to deliver. Available in 48V 2000W and 72V 3000W versions, it offers flexibility for different riding styles and terrains. Both models share the same form factor, featuring a 107mm diameter and 166mm length, making installation smooth and compatible with a wide range of vehicle types such as electric motorcycles, e-bikes, dirt bikes, tricycles, drift trikes, and scooters.
Integrated Temperature Sensor for Smarter Protection
One of the key highlights of the MY1020 is its built-in temperature sensor, which continuously monitors motor temperature. This function provides enhanced safety by preventing thermal overload, especially during high-load or long-distance rides. When paired with a compatible controller, it can trigger protective responses to maintain performance and prolong motor life.
Premium Build, Reliable Performance
The MY1020 motor is constructed with high-grade aluminum, 100% copper windings, and high-performance rotor magnets for excellent conductivity and heat dissipation. Its 6mm² phase wires allow for higher current flow, reducing resistance and boosting efficiency.
Key Performance Specs
• 48V 2000W
• Rated Current: 42A
• Max Speed: 5700 r/min
• Max Torque: 6.9 N.m
• 72V 3000W
• Rated Current: 45A
• Max Speed: 6700 r/min
• Max Torque: 5.4 N.m
Both models weigh 5.5kg, offering a balance of power and portability.
Bluetooth-Compatible for Intelligent Ride Control
The MY1020 motor works seamlessly with the Bluetooth controller, unlocking advanced features like temperature-based power adjustment and real-time performance management. This makes it a great option for users who prefer smart, customizable control systems. A complete kit with both the motor and controller is now available in our shop for easy integration.
Bracket Options for Flexible Mounting
To suit different frame designs, the MY1020 is offered in with-bracket and without-bracket versions. This allows users to match the motor to their specific installation needs without modification.
