BLDC 72V 3000W Brushless Motor Kit with 24 Mosfet 50A Controller and Throttle for Electric Scooter E bike Engine Motorcycle DIY Part Conversion Kit
SKU: 72V3KW-F-7IN1
About this item
Kunray MY1020 Brushless Motor Features: Electric Brushless DC Motor, Aluminum Body, Full Copper Coil, Heat Resistant, Naturally Air Cooled, Low Noise High Quality More Long Life.
BLDC Scooter Motor: Brushless High Speed Mid Drive Motor, Voltage 72V DC, Rated Power 3000W peak, Current 45A, Rated Speed 4900rpm/min, (Max 5800RPM), T8F 11Teeth Sprocket, Load Weight: About 100-200kg.
BLDC Controller: Voltage 48-72V, Proctect 42 volt, Power 3000 watt, 24 mosfet, Current 50 amp, Phase Degree: 120°, Smart Controller Can Work With Hall Sensor And Without hall, Brushless Motor Speed Controller, E-Brake, 3-Speed (Low Mid High Speed), Reverse Functions, Indicator Light And Power Lock Functions.
Handlebar Twist Throttle: Universal Accelerator Handlebar Throttle Twist Grips, 12V-72V Universal, With 3 Speed (High,Mid and Low Speed) And Reverse Functions, Wire Length About 150cm ( 59 inch) , High Quality Rubber And ABS Material.
Useful: Suit For Electric Scooter, Mini Electric Motorcycle DIY Engine Kit, Razor Push Scooter, Ebike Bicycle, Go Karts, E-bike, E-Tricycle,Mid Drive Motor Kit, Complete Set, DIY Engine System, Cycling Part and more.
High Quality Aluminum Motor And High Qulity Rotor Magnet All Copper.
About BLDC Controller:
Voltage: 48V-72V
Proctec Vol: 42V
Power: 3000W
Current: 50A
Mosfet: 24Mosfet.
Phage Degree: 120.
Product Description: High‑Torque Eco Performance： Experience elite power with the Kunray 72V 3000W motor. Pure copper coil, aluminum housing, and air‑cooled design deliver up to 6700 RPM top speed and reduce emissions by replacing gas engines Intelligent 24‑MOSFET 50A Controller： The advanced controller supports Hall sensor systems, 3‑speed modes, reverse, e‑brake, and indicator light. Built to handle high stress with smart thermal management and seamless throttle response Rugged & Reliable Construction： The die‑cast aluminum body with heat‑sink cooling ensures durability and longevity. Naturally cooled and low noise, it thrives in outdoor conditions—dirt, rain, or pavement.
Product Advantages:
Powerful Yet Energy-Efficient：Leverages a high-torque 3000W brushless DC motor with optimized copper winding and air-cooled casing—delivering peak performance while consuming less energy than traditional motors. Eco-Conscious Riding Experience：Eliminates fuel consumption and harmful emissions. Perfect for riders who want adrenaline without environmental guilt. Embrace sustainable power with zero noise and zero gas. All-in-One DIY Upgrade Kit:Comes with everything you need,3000W motor, 50A controller, twist throttle, and wiring accessories. Designed for seamless conversion or upgrade on electric dirt bikes, scooters, and Razor-style vehicles. Universal Fit & Plug-and-Play：Engineered to fit a wide range of e-bikes, scooters, motorcycles, and go-karts. Pre-wired connectors make installation quick and easy—even for non-professionals.
About Us Kunray's journey began in 2010, birthed from a moment of revelation. Our founder, inspired during a nostalgic walk through his old campus with his mentor, envisioned a world where quality electric vehicle components were accessible and affordable. Witnessing the challenges of expensive e-bike repairs, he pledged to revolutionize the industry.
At Kunray, we are driven by the spirit of innovation and freedom. We aim to shatter the barriers of cost and complexity by offering high-end, reliable e-bike and electric scooter components. Our dedicated team of over a hundred professionals continuously strives to advance technology and enhance performance, ensuring our products are at the forefront of the industry.
We're more than just manufacturers; we're pioneers in a movement toward sustainable and efficient transportation. Each Kunray product embodies our commitment to quality, from intensive research and development phases to meticulous quality control. Furthermore, we personalize solutions through OEM orders, providing a tailored approach to meet diverse customer needs.
FAQ
What vehicles can this 72V 3000W brushless motor kit be used with?
This BLDC motor kit is suitable for electric scooters, E‑bikes, mini electric motorcycles, go‑karts, trikes, and other DIY electric vehicle builds. It’s a versatile power upgrade for mid‑drive kits and conversion projects.
Does the kit include a battery or do I need to provide one?
The kit does not include a battery. You will need to supply a compatible 72V battery (e.g., a 72V Li‑ion pack or two 36V packs in series) to power the motor and controller.

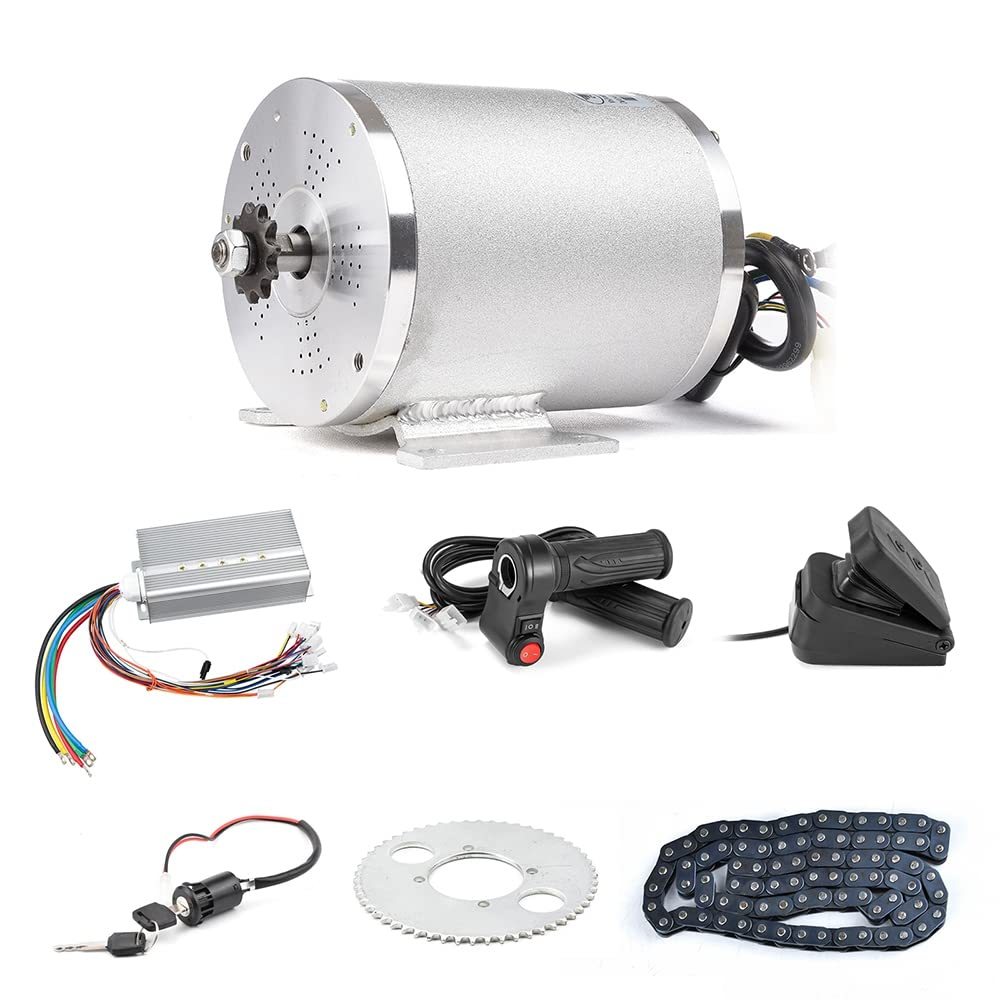

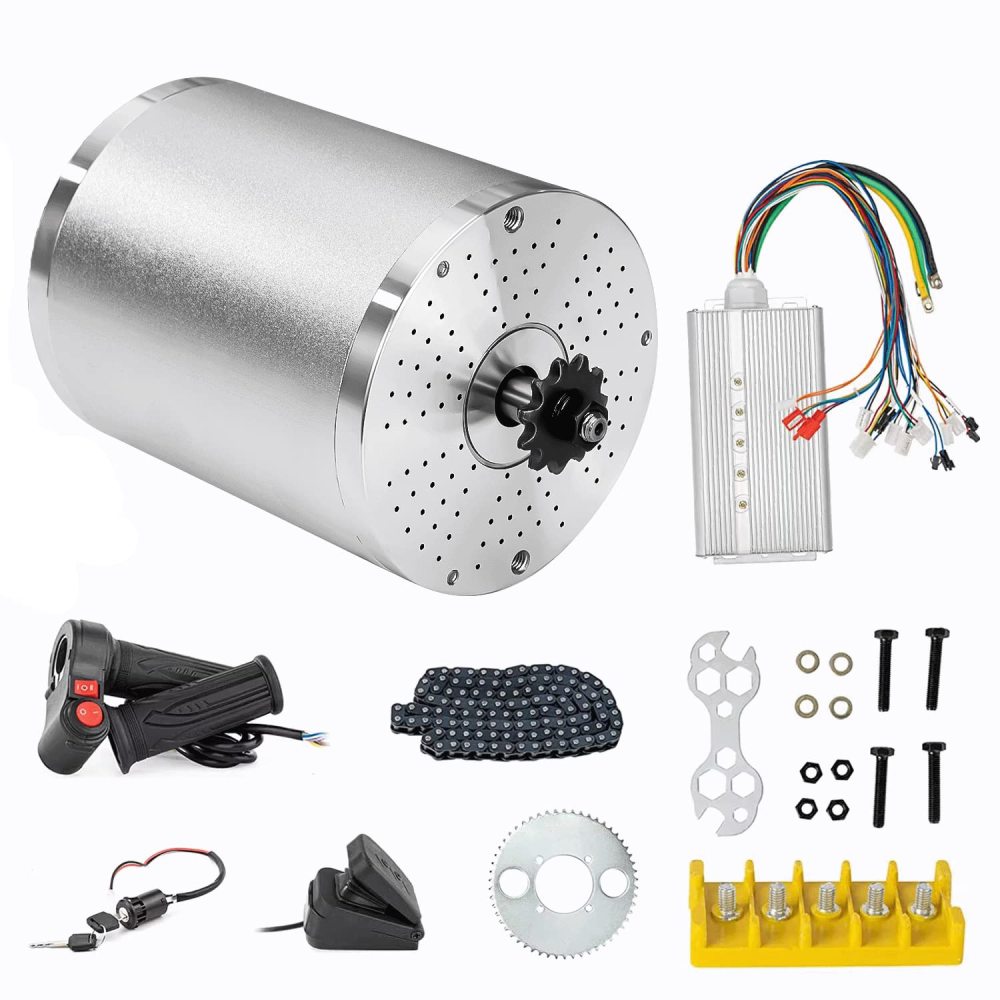

What is included in the motor kit?
The kit typically includes: 72V 3000W BLDC brushless motor 24 Mosfet 50A brushless controller Twist‑grip throttle Mounting accessories The controller supports multiple features like 3‑speed modes and reverse function. Kunray Electric
How fast can this motor make my vehicle go?
Performance depends on your vehicle setup (wheel size, weight, gearing). Many 72V 3000W brushless motor kits deliver high speed and strong torque, often with top speeds around 4900–6500 RPM under proper voltage and load conditions.
Can the motor run in reverse?
Yes. The included controller often supports a reverse function, allowing forward and backward rotation depending on wiring and throttle setup.
What batteries & controllers work best with this kit?
Use a 72V battery pack with sufficient capacity to support continuous current draw. A matched controller with a rating around 50A or higher ensures smooth performance and reliable throttle response.
Is installation difficult for beginners?
Installation requires basic mechanical and electrical skills. You need to mount the motor, connect the controller to the battery and throttle, and secure wiring. If you’re unfamiliar with electric vehicle wiring, consulting a guide or expert is recommended.
Will this motor handle heavy loads or hills?
A 3000W brushless setup offers strong torque but vehicle performance under heavy loads depends on overall design, weight, and gearing. For heavy‑load or steep terrain use, proper gearing and battery capacity are important.
