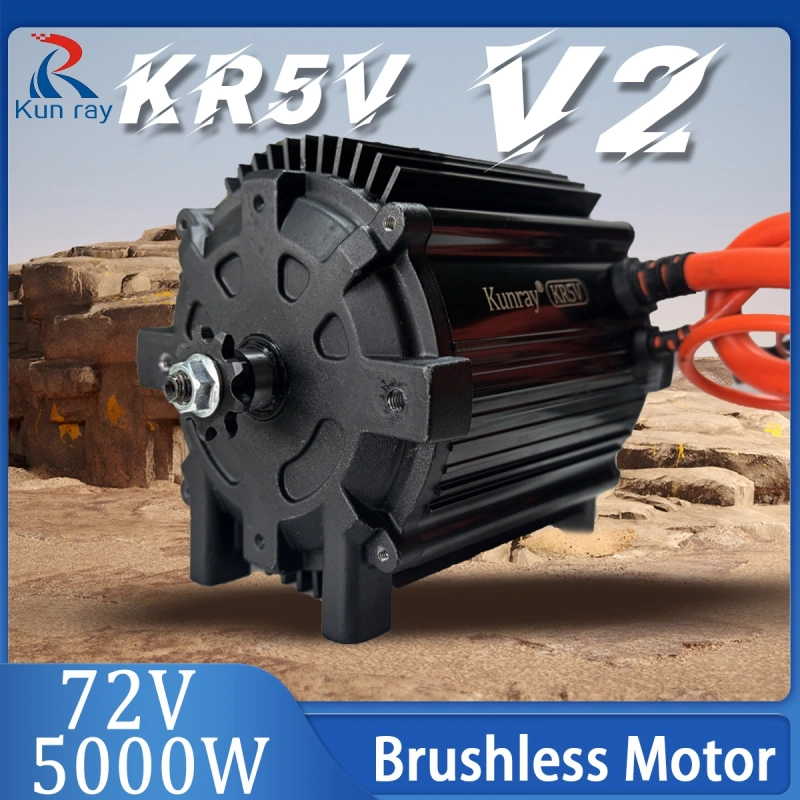

Brushless DC Motor With KTY84-130 Temperature Sensor, 8mm²PHASE WIRE
Mounts directly into Razor MX650, MX500, SX500, RSF650 chassis without modification

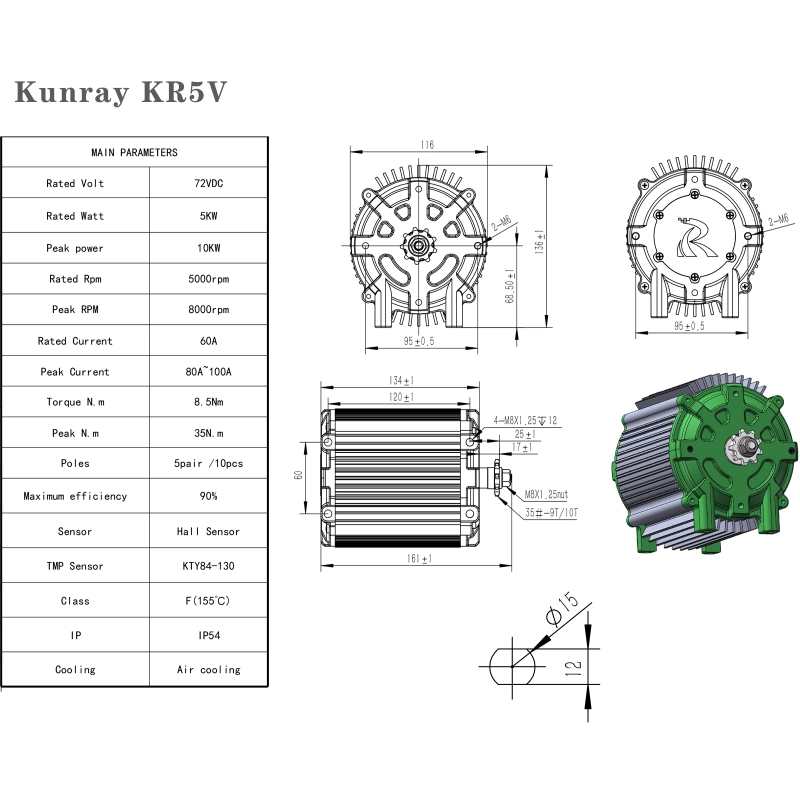

Rated power | 72V 5000W |
Rated RPM | 5000RPM |
Peak RPM | 8000RPM |
Rated Current |
60A
|
Peak Current | 80A-100A |
Torque N.m | 8.5N.m |
Peak w.m | 35N.m |
Poles | 5pair /10pcs |

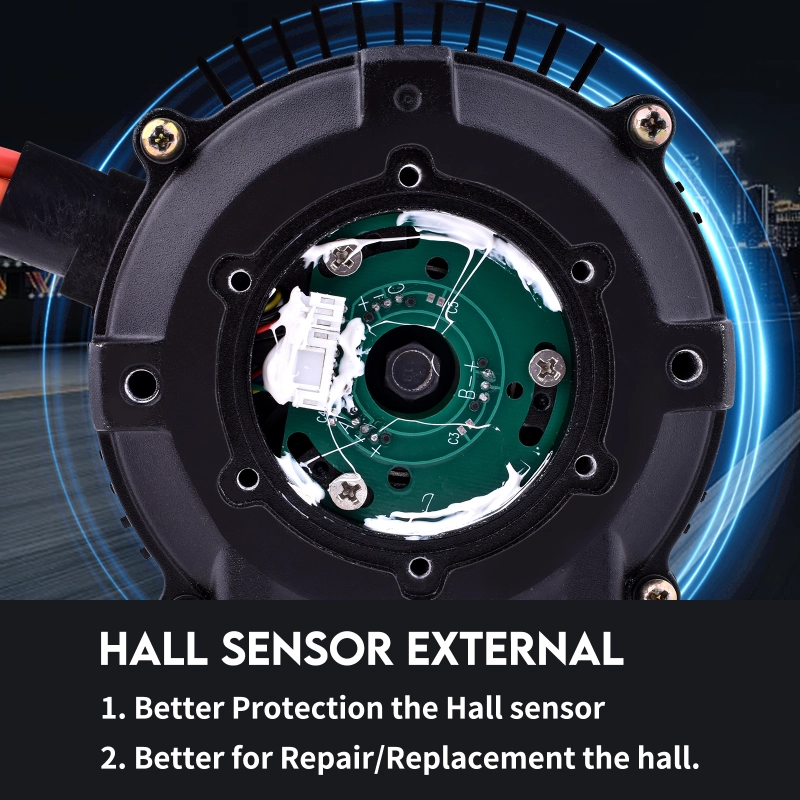

Sensor | Hall sensor |
TMP Sensor | KTY84-130 |
Class | F(155℃) |
IP | IP54 |
Cooling | Air cooling |

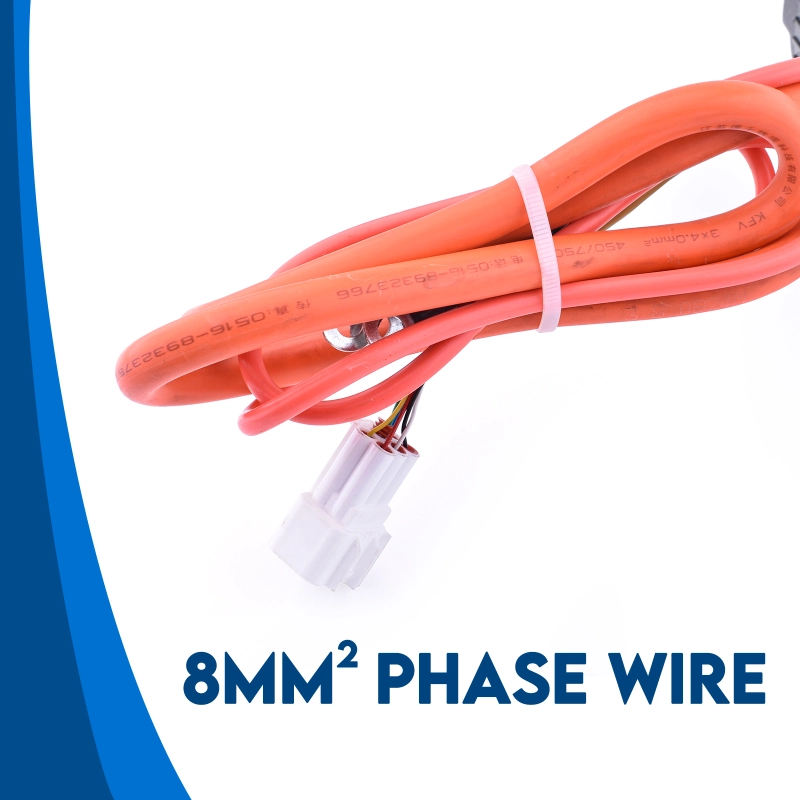

Phase wire | 8mm² |
Upgrade:

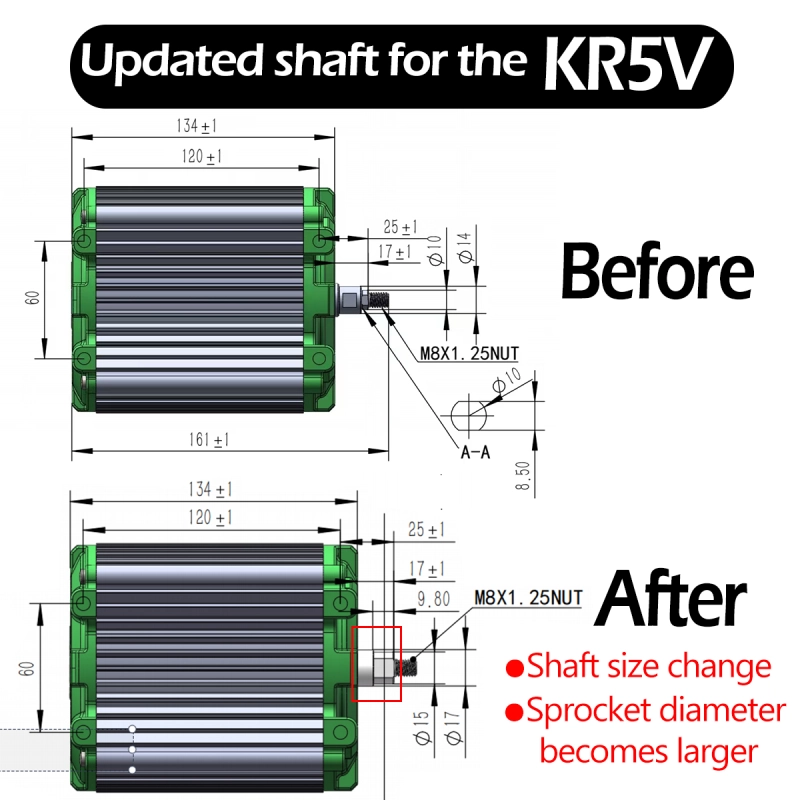

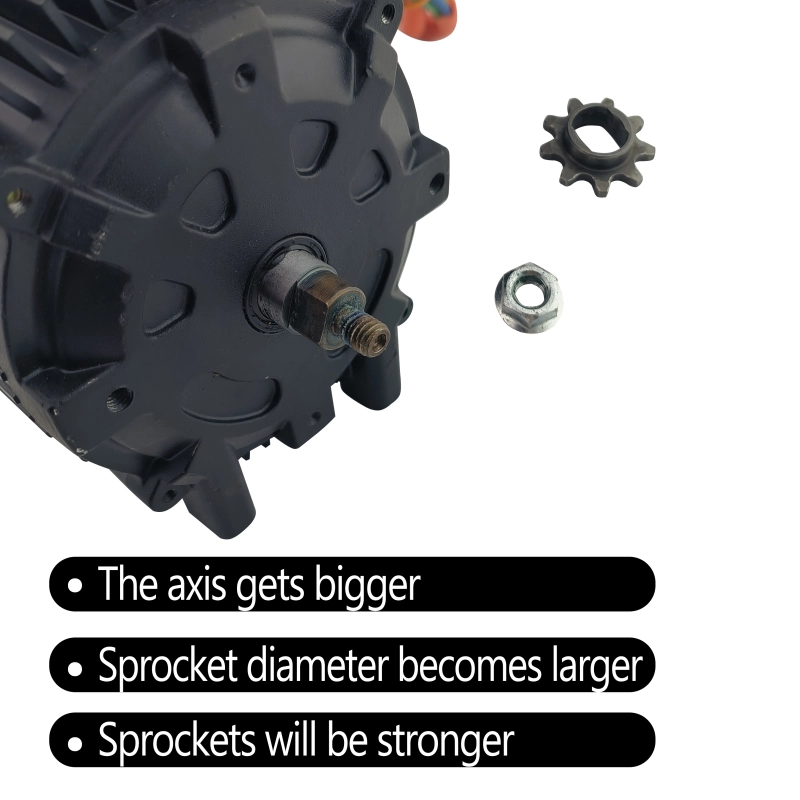

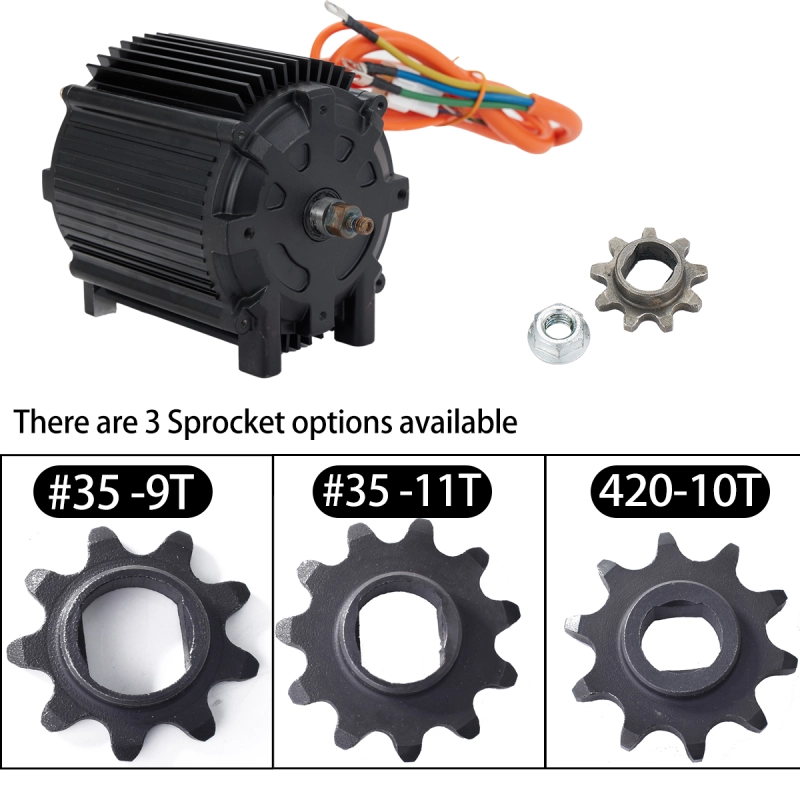

✅ we have change the Shaft size, Sprocket diameter becomes larger,Sprockets will be stronger.
✅#35 9T/#35 11T/420 -10T Sprocket Can Provided
When the motor is installed on the left side and requires counterclockwise rotation, the wiring configuration shall be as follows:
PHAGE WIRE:
yellow to yellow
blue to green
green to blue
HALL WIRE:
red - red
black - black
green - green
yellow - blue
blue - yellow
