KUNRAY 12inch Electric Scooter Motor Wheel 24V 36V 48V 350W 500W Brushless Motor with 17A /25A Controller LCD Display Throttle for Electric Bike Scooter Motor Kit

SKU: KUNRAY-12INKIT-24350
* 12inch Hub Motor with Pneumatic tyre, Aluminum alloy frame, good heat dissipation, stable performance and high reliability.
* Brushless Controller can provide steady speed and sensitive control of braking and direction changes.

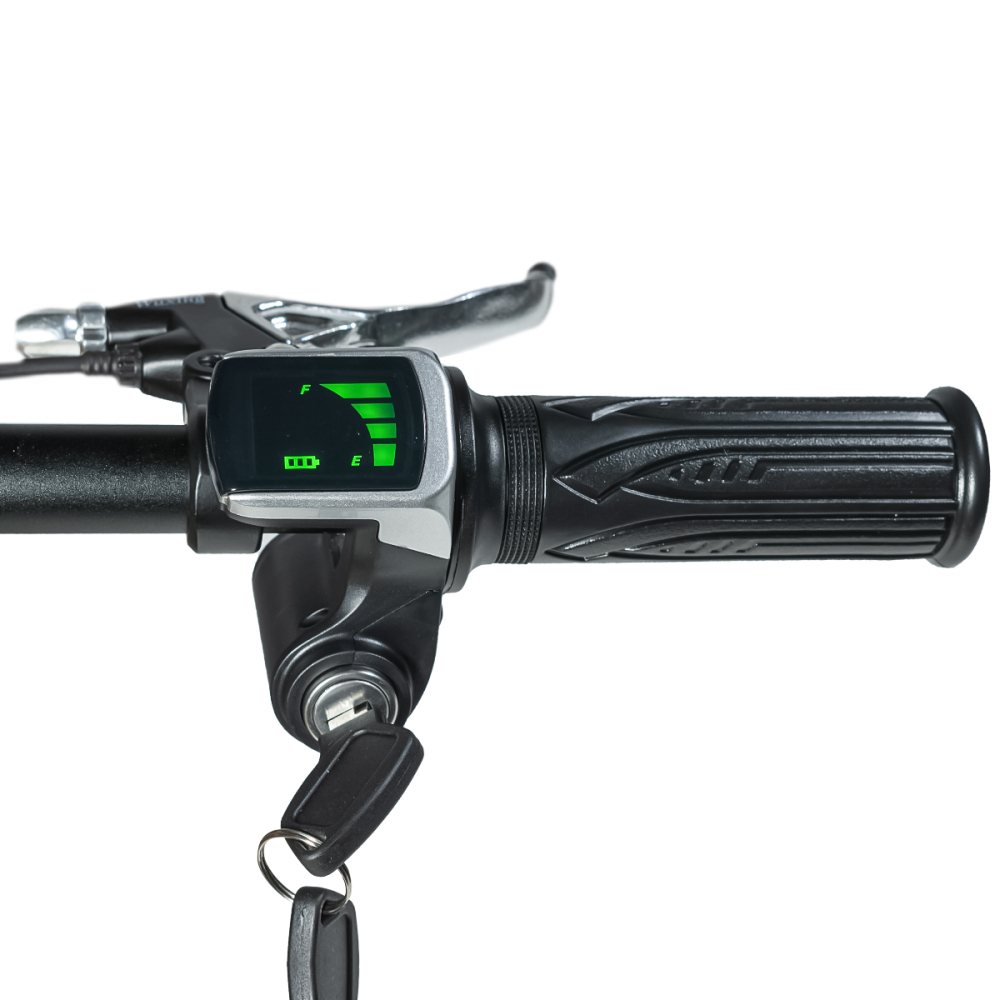

* LED throttle, Clearly display the power, so that it can be charged in time and give you a better riding experience
* Application: Electric scooter, folding electric car ,e-motorcycle,e-bike ,front/rear drive
0.0 (0 Reviews)
0 Sold
$115.90 $80.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Parameters:
    24V350W
    36V350W
    48V350W
    36V500W MOTOR KITS
    48V500W MOTOR KITS
Quantity
-
+
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
1/1
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • KUNRAY 12inch Scooter Motor Wheel 24V 36V 48V 350W  Brushless Motor with LCD Display for Electric Bike Scooter Motor Kit
  • Description
Packing List:

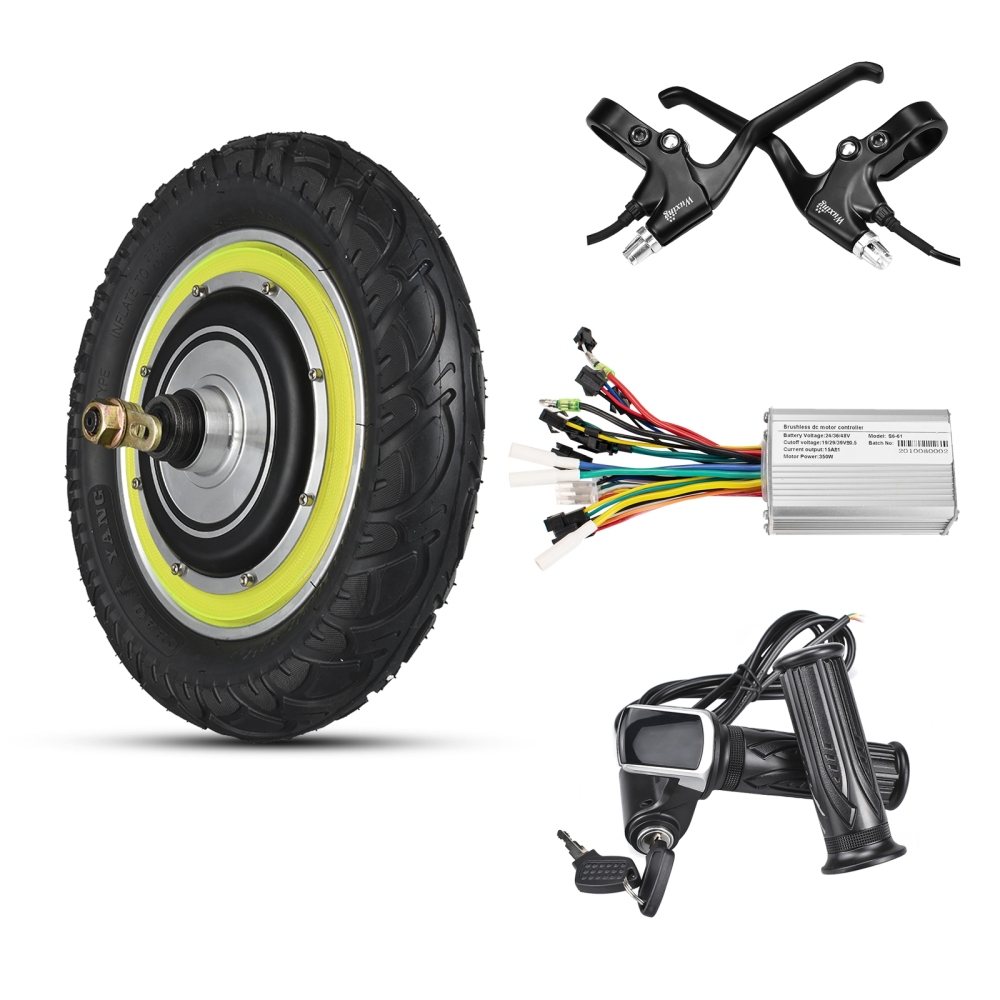

1x 12inch Motor Wheel+1x Brushless Controller+1x LED Twist Throttle+1x Cut-off Power Brake
Product Details

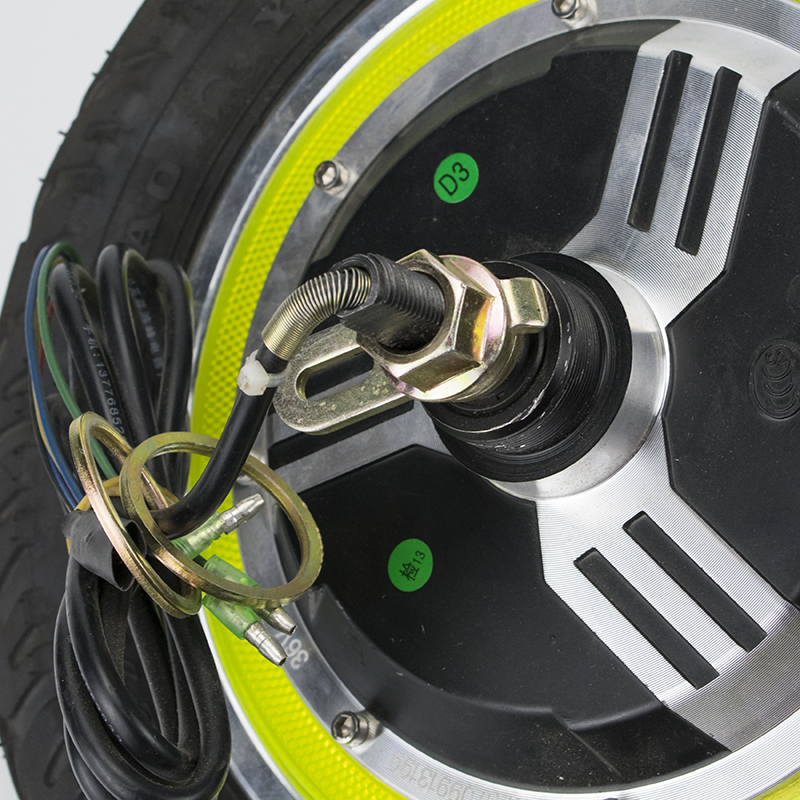

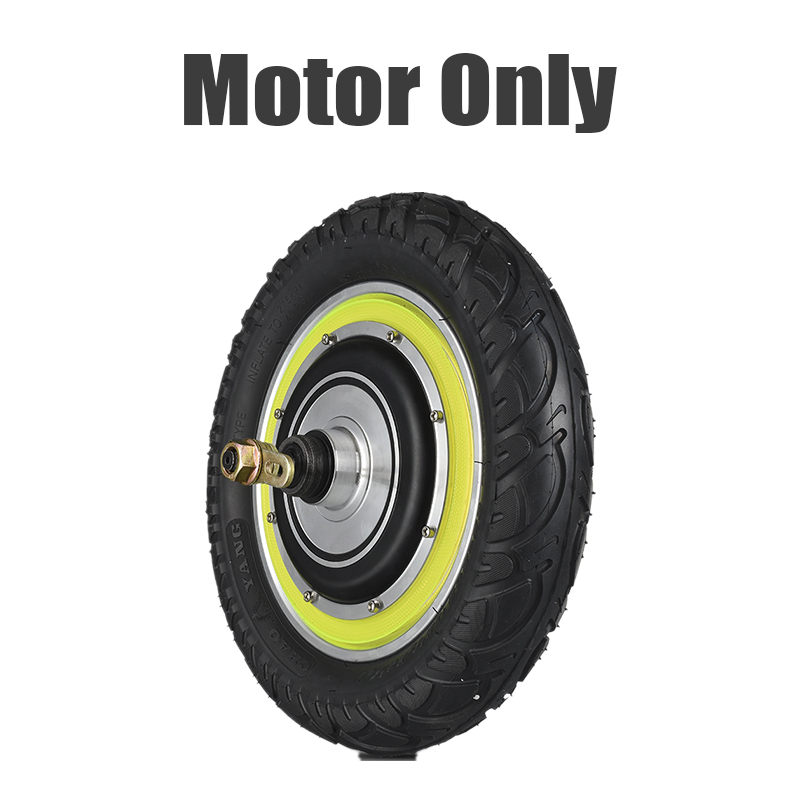

12-inch Brushless Gearless Wheel Hub Motor
  • Rated power :350W
  • Rated voltage :24V 36V 48V
  • Speed :12 ~ 35KM / H
  • Speed/RPM: 250 ~ 1000RPM

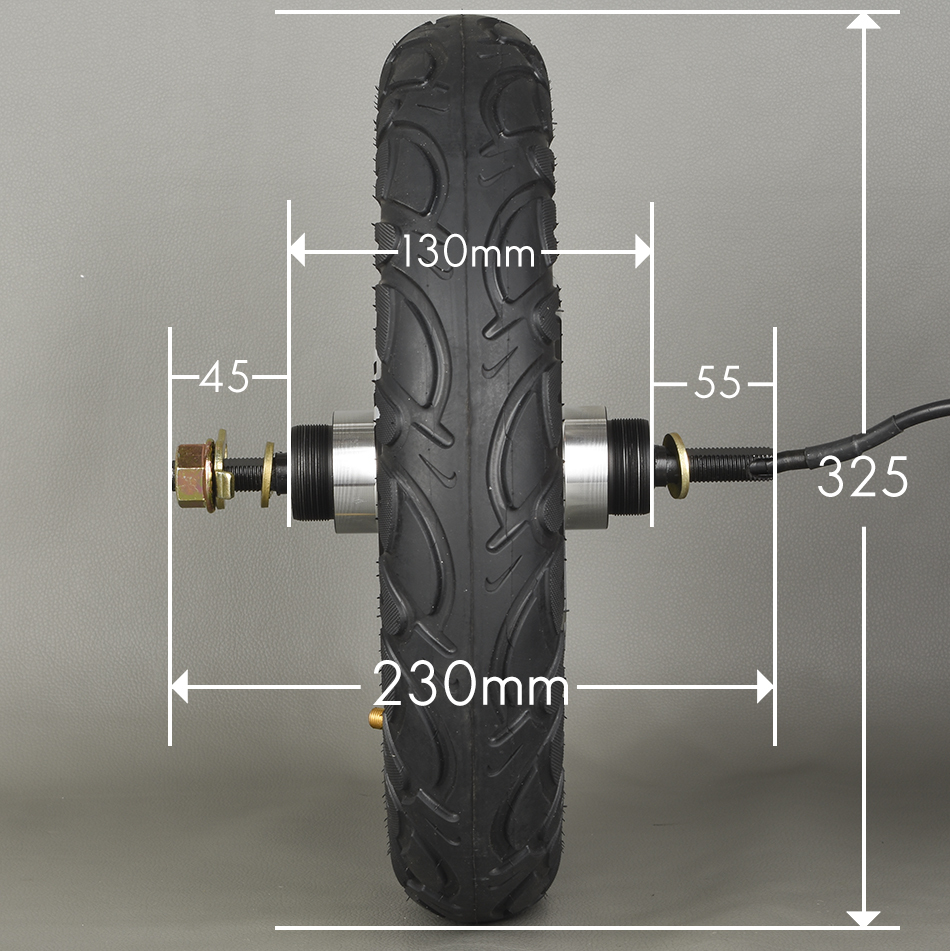

  • Diameter :275mm
  • Open Size: 140mm
  • Motor Weight :3.5KG -4KG
  • Load Weight: 150 -200KG
  • Brake: electronic brake ,disc brakes
  • Tires :12X2.125 / 2.5
  •  Waterproof :IP54
  • Application :electric scooter, folding electric car ,ebike,e-motorcycle,ebike ,front/rear drive

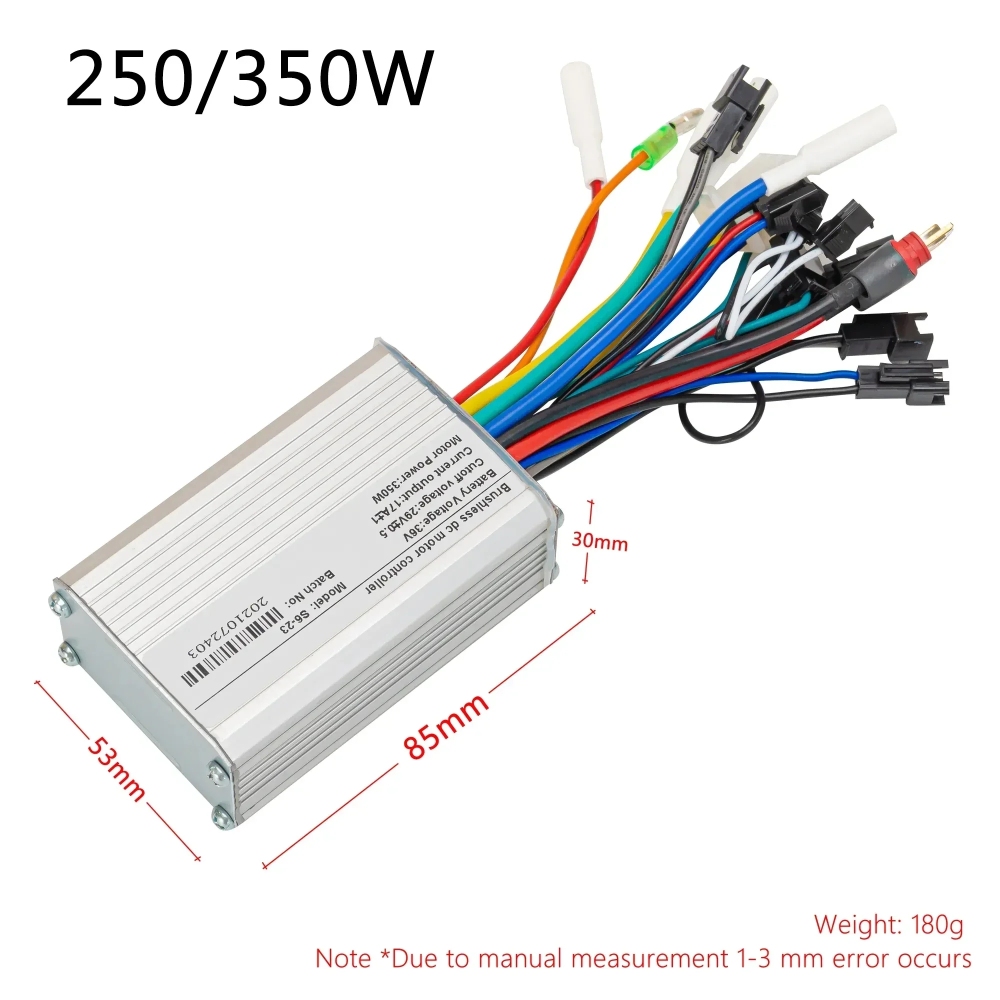

Brushless DC Controller:

* Voltage:24V DC
* Power: 350W
* Low-Voltage Protection: 19+-0.5
* Current Limite: 15A+-1A
* Throttle :4.3V
* Controller Type: Brushless Speed Controller
* Usage: For BLDC Motor 24V 350W e Bike,Electric Bicycle Scooter,Folding Bike,Unicycle Scooter,Blance CAR ,DIY Motor Controller
* Function: Hall Reverse

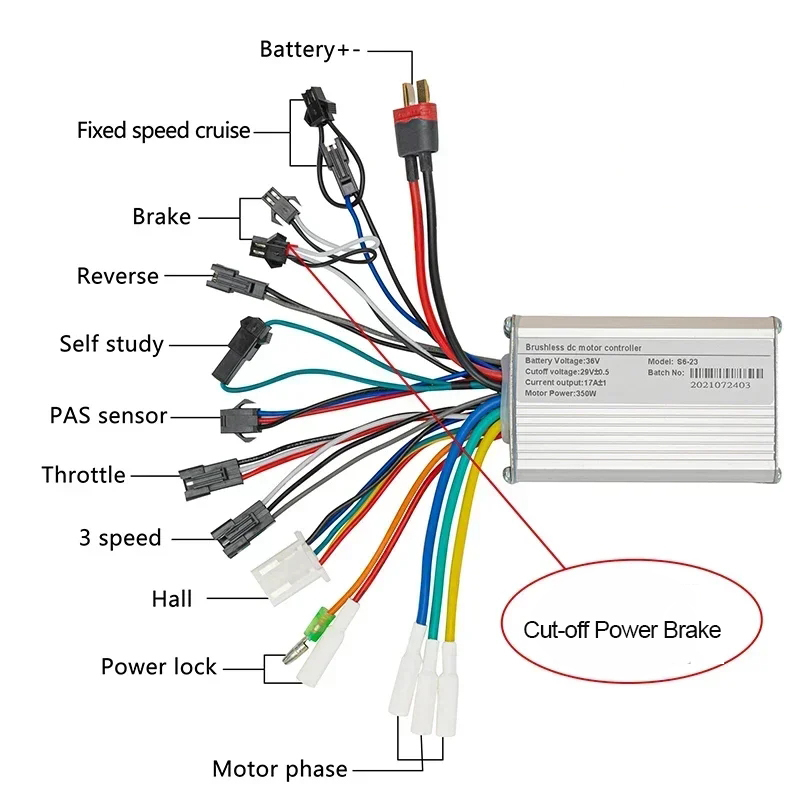

* Wiring diagram:power cable
