Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit

SKU: KR07F-36250-20
➤ Brushlesss Gear Wheel Motor, Rated Power is 250W/350W, Rated Voltage is 36V/48V, Front and Rear wheel motor, Size 20" to 28".
➤ Double-wall Aluminium Alloy Rim and adopts excellent technology, which is durable and low-noise, high efficiency.
➤ KT LCD 3 display can be only matched with KT controller.
➤ Easily convert your bicycle to an electric bike, if you have any question during intalling, please feel free to contact us, we will do our best to solve it.
0.0 (0 Reviews)
0 Sold
$275.00 $191.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Parameter:
    36V250W
    48V250W
    36V350W
    48V350W
  • Position:
    Front
    Rear
  • Size:
    20''
    24''
    26''
    27.5''
    28''
    700C
Quantity
-
+
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
1/1
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Kunray 36V 48V 250W 350W Ebike Motor Wheel Front Rear with KT LCD3 Display Ebike Conversion Kit
  • Description

Experience the Power of Electric Cycling

Upgrade your ride with the Kunray E-Bike Conversion Kit, featuring a robust brushless motor that offers quiet operation and enhanced longevity.

What's Included in the Kit?

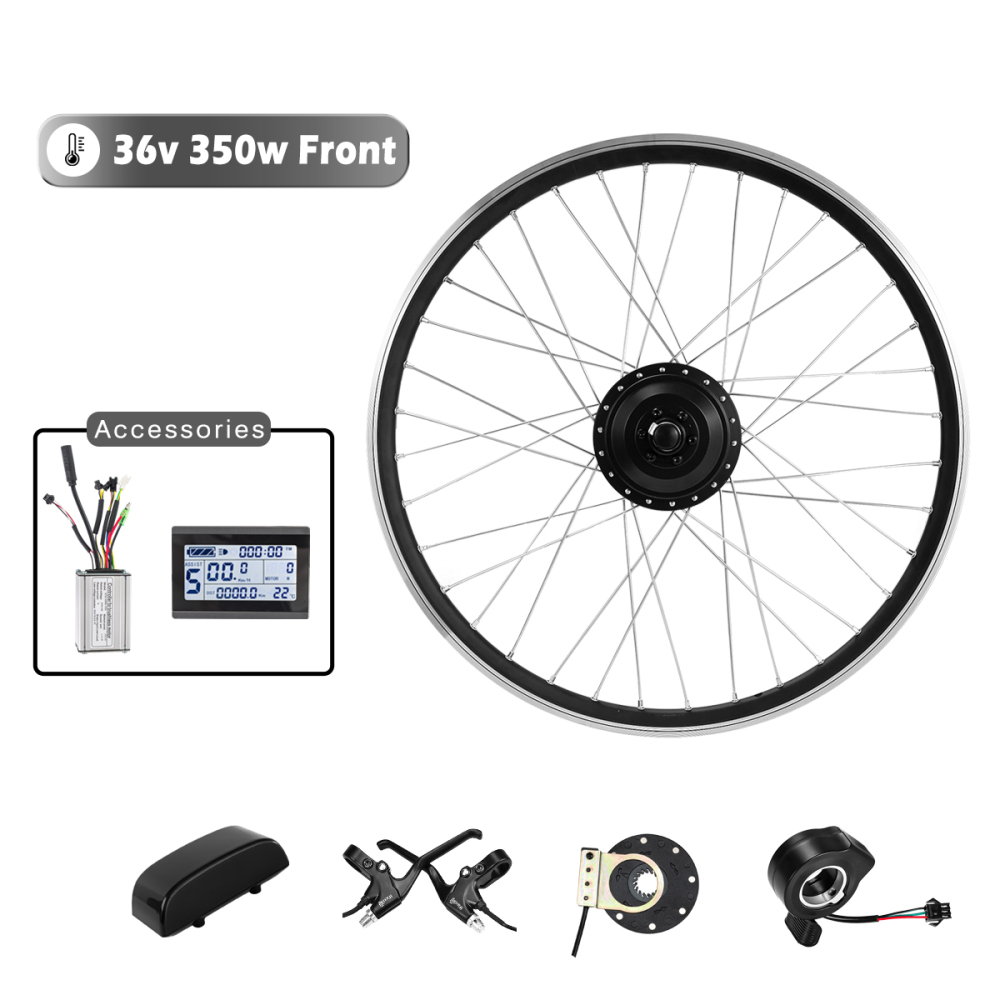

This kit contains everything needed to transform your bike: a high-torque motor wheel, LCD display, controller, and all necessary accessories for a straightforward installation.

Specifications and Performance

Available in 250W, 350W, and 500W options, our motors support 24V, 36V, and 48V setups, ensuring compatibility with a wide range of bicycles and riding styles.



About Motor:

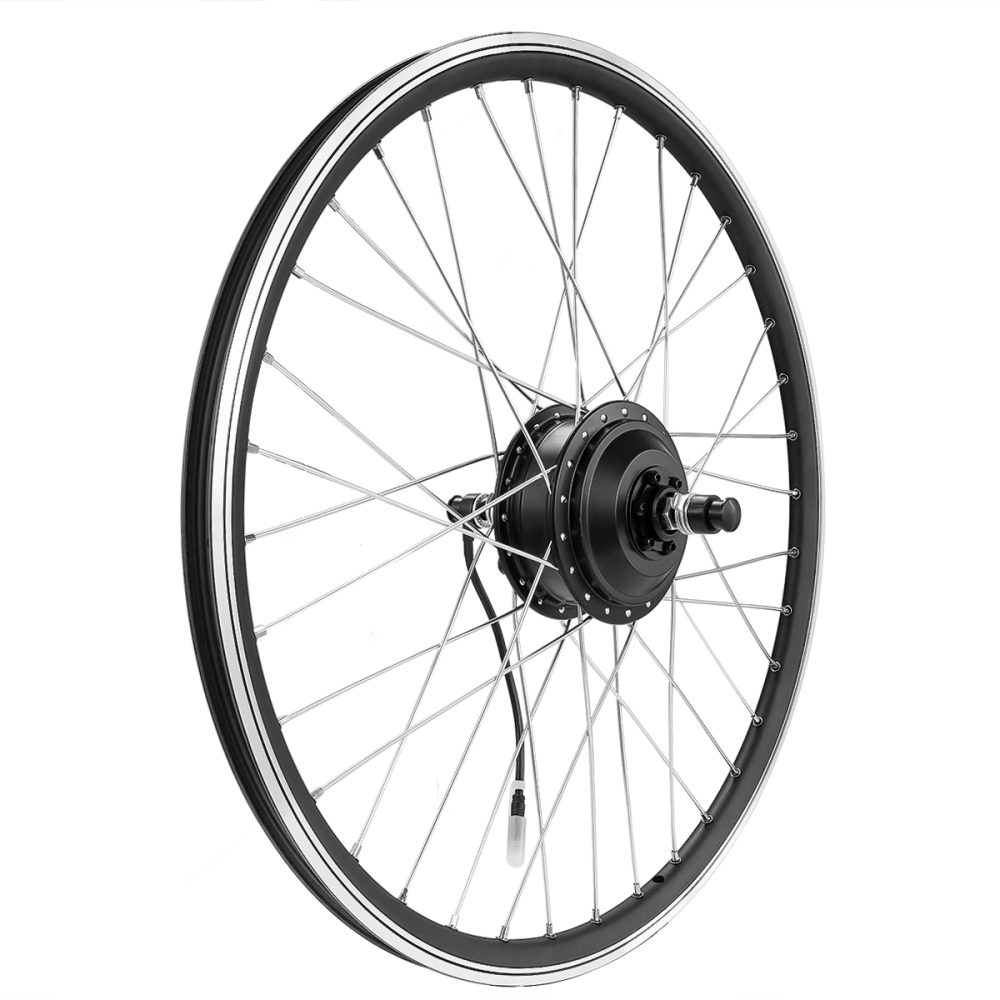

Type: Brushlesss Gear Wheel Motor
Rated Power: 250W/350W
Rated Voltage: 36V/48V
Speed:207-270RPM for 250W, 231-270RPM for 350W
Torque:29-31.2N/M for 250W, 31.8-33N/M for 350W

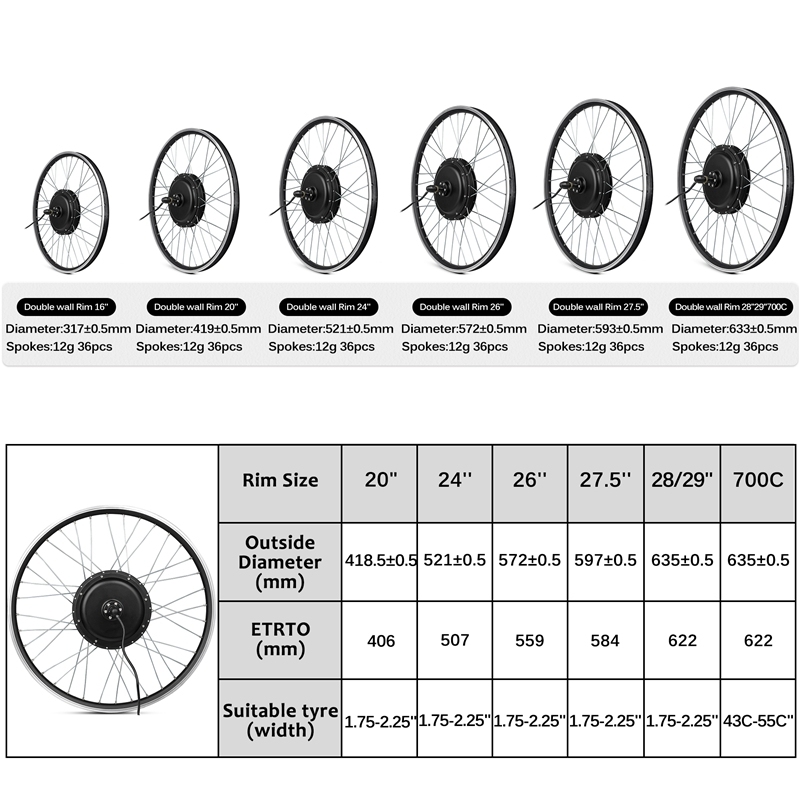

Size: 20'' 24'' 26'' 27.5'' 28'' 700C

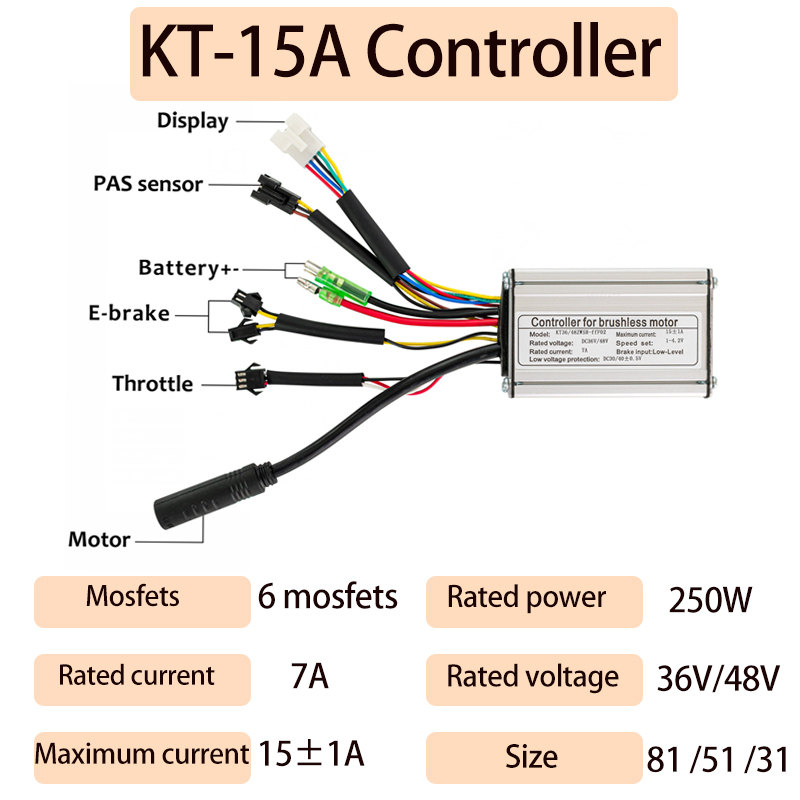

KT Controller:
Motor style: Brushless
Rated voltage: DC36V/48V
Speed set: 1-4.2V
Rated power:250W/350W
Maximum current: 15±1A/17±1A
Controller Size:
1.86mm*53mm*32mm(15A)
2.95mm*60mm*35 mm(17A)
Brake input: Low-Level

Low voltage protection: DC30/40±0.5V
Use for: Electrci Tricycle, ebike,e-scooter, etc

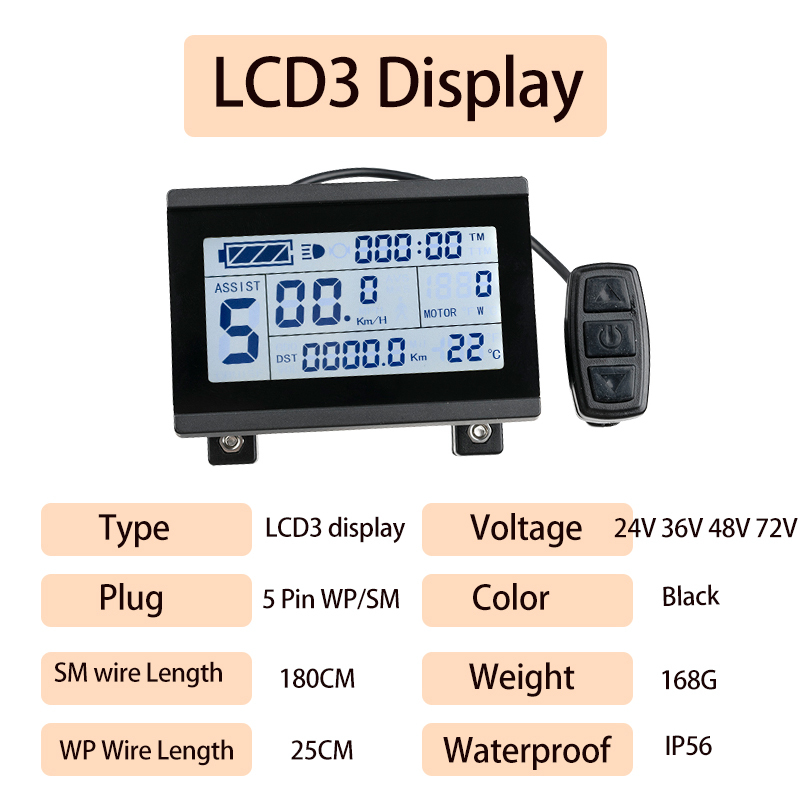

KT LCD3 Display:

Voltage: 24/36/48/72V
Plug: 5pin WP/SM
Color: Black
SM wire Length: 180CM
WP wire Length: 25cm
Waterproof: IP56
