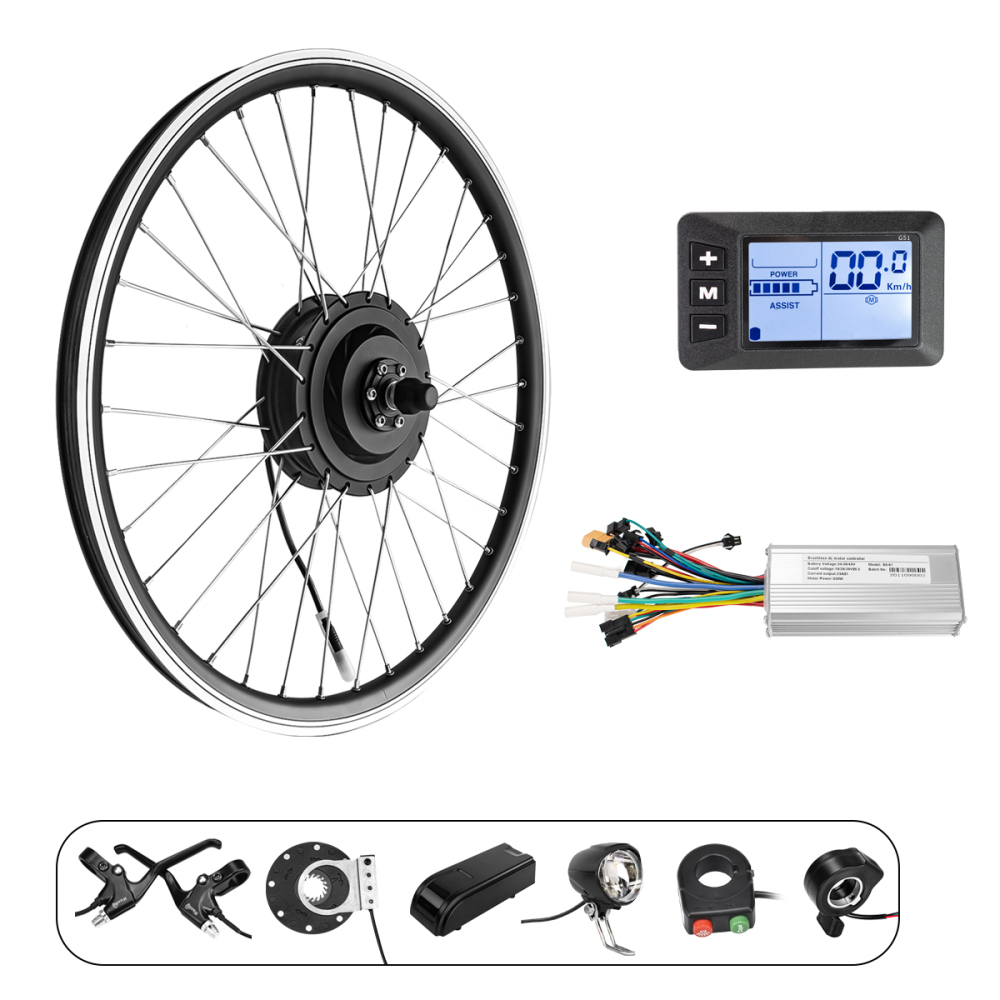

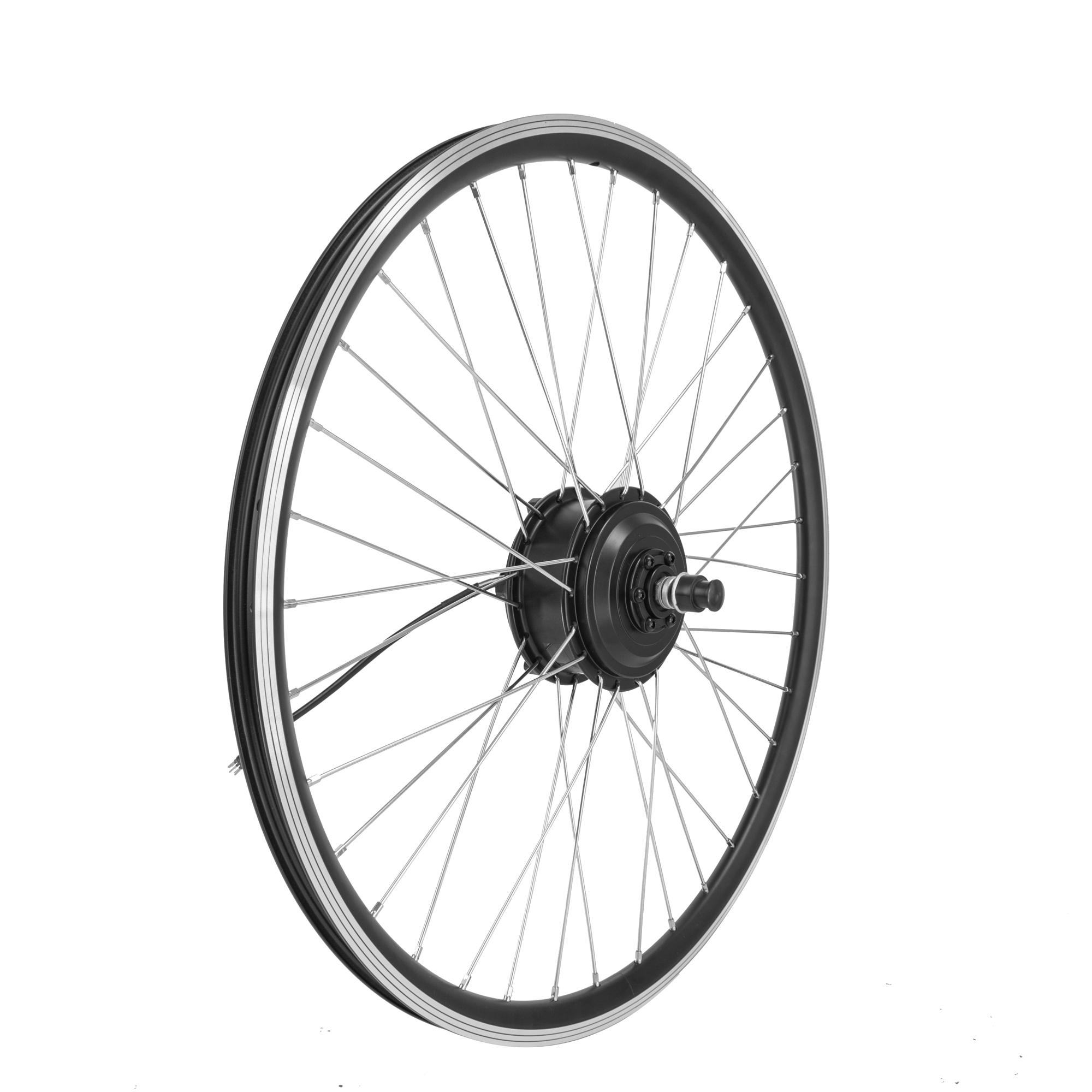

Kunray 24/36/48V 250W - 500W Electric Bike Hub Motor Wheel Kit Front / Rear Ebike Conversion Kit

250W Brushless Gear Motor Wheel
Voltage: 24V 36V 48V
Power: Rated 250W
Rated Speed: 25Km/h
Torque: 27-31.2N/m
RPM:207-270
Spoken Specification:12g/13g
Rated Efficiency:＞＝83
Weight(kg): 2.8
Noise(db):＜55db

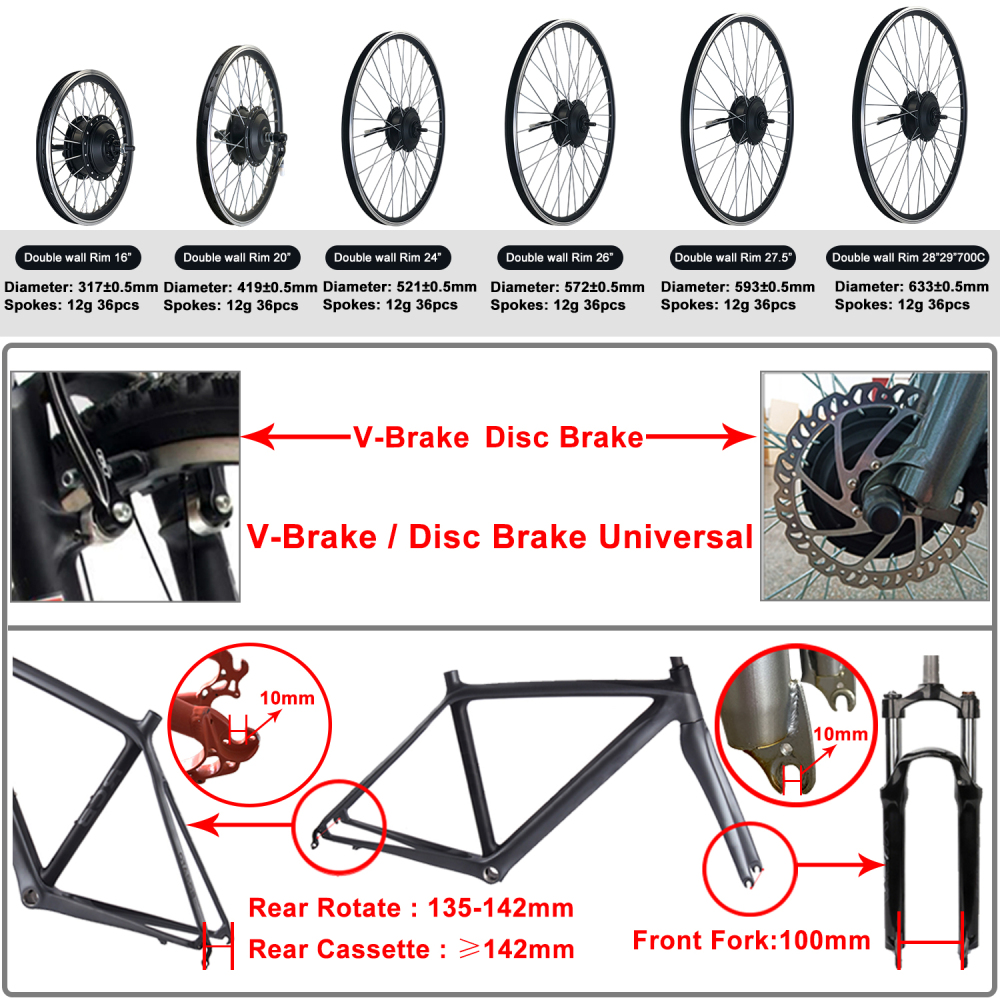

Fit bicycle: Road and mountain Bicycle convrsion Kit, front and rear wheel.

350W Brushless Gear Motor Wheel
Voltage:36V 48V
Power: Rated 350W
Rated Speed: 25-28Km/h
Torque:31.8-33N/m
RPM:231-270
Spoken Specification:12g/13g
Rated Efficiency:＞＝83
Weight(kg): 2.8
Noise(db):＜55db
Fit bicycle: Road and mountain Bicycle convrsion Kit, front and rear wheel.

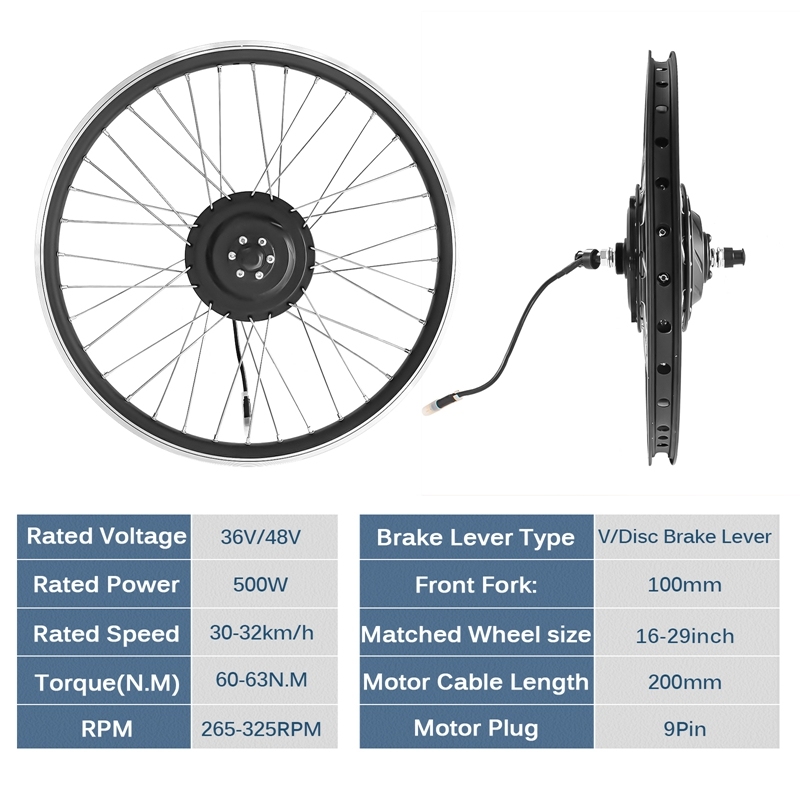

500W Brushless Gear Motor Wheel
Voltage: 36V 48V
Power: Rated 500W
Rated Speed: 30-32Km/h
Torque: 61-64.5N/m
RPM:265-325
Spoken Specification:12g/13g
Rated Efficiency:＞＝80
Weight(kg): 4.2
Noise(db):＜55db
Fit bicycle: Road and mountain Bicycle convrsion Kit, front and rear wheel.

Controller:
For 250W/350W Controller:
* Type:Brushless DC motor
* Rated voltage: 26/36/48V
* Current output:15A ±1A
* Cut-off voltage:19/29/39V±0.5V
* Size:53MM*80MM*30MM

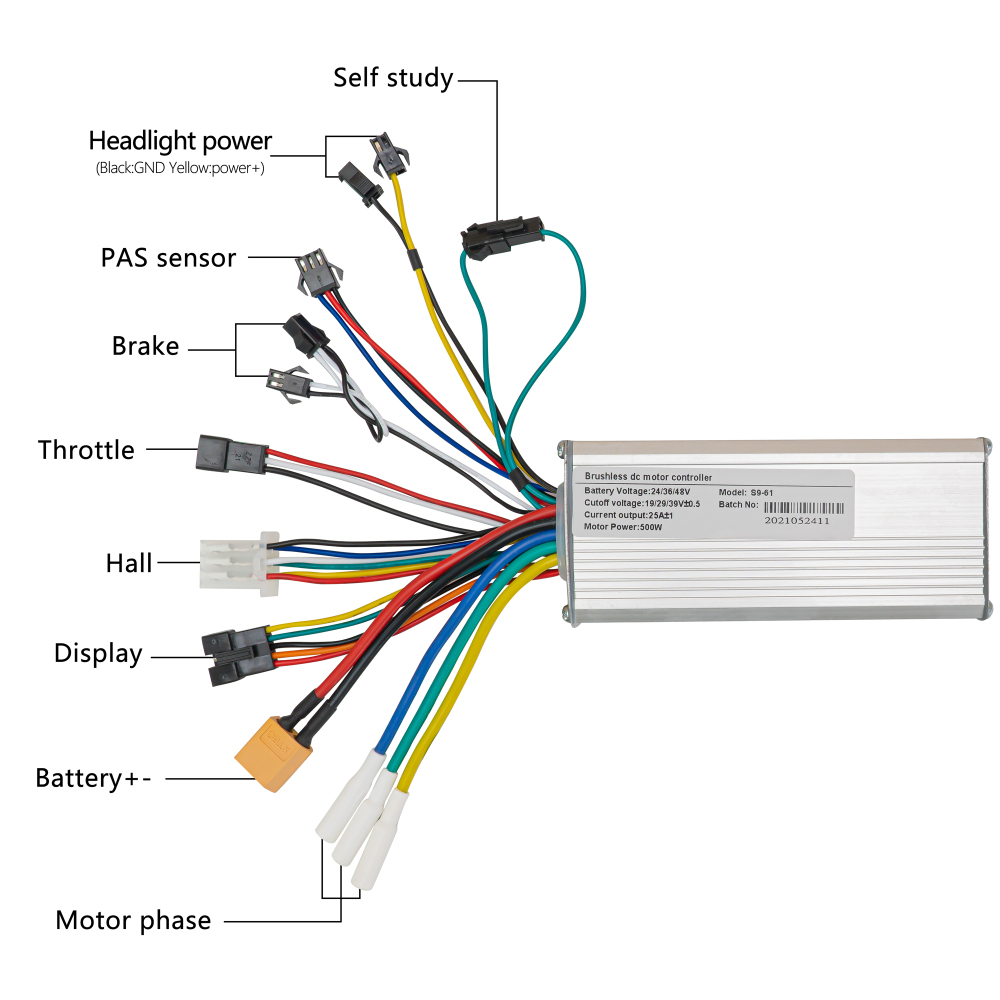

For 500W Motor Controller:
* Type:Brushless DC motor
* Rated voltage: 26/36/48V
* Current output:25A ±1A
* Cut-off voltage:19/29/39V±0.5V
* Size:50MM*120MM*30MM

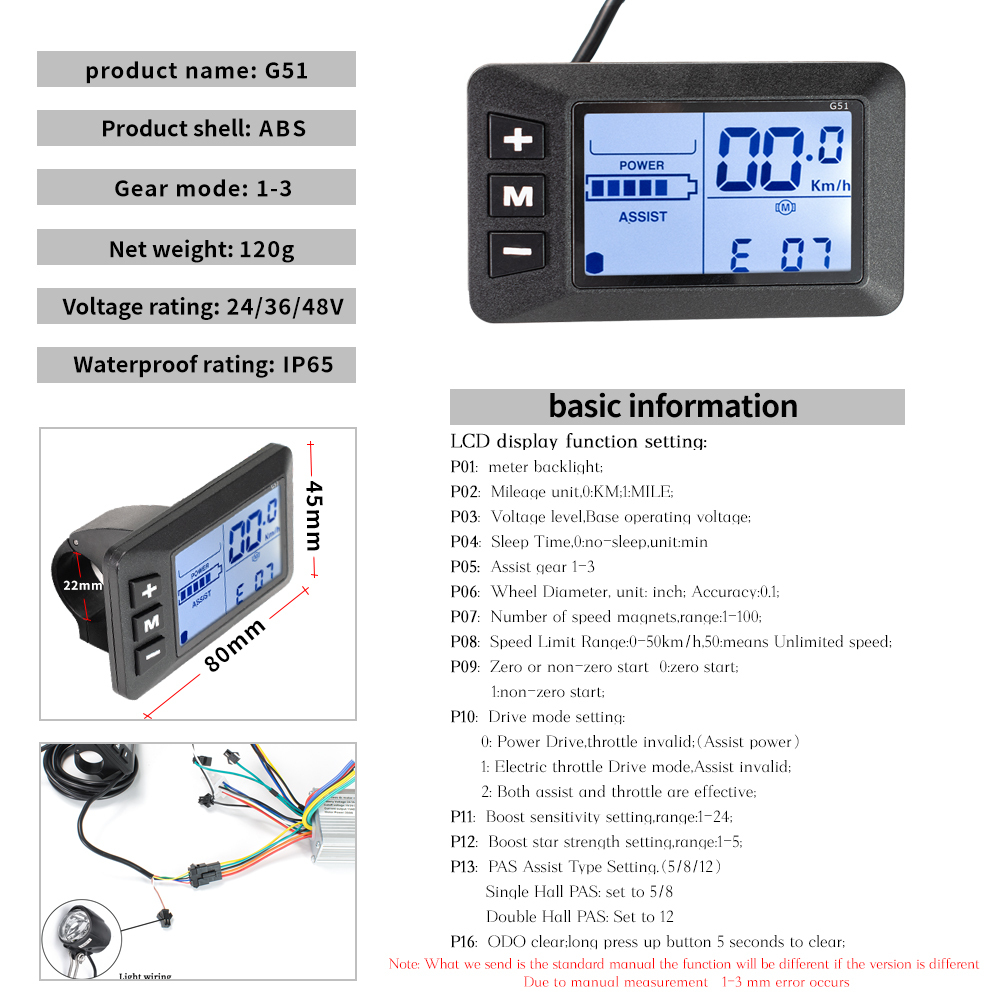

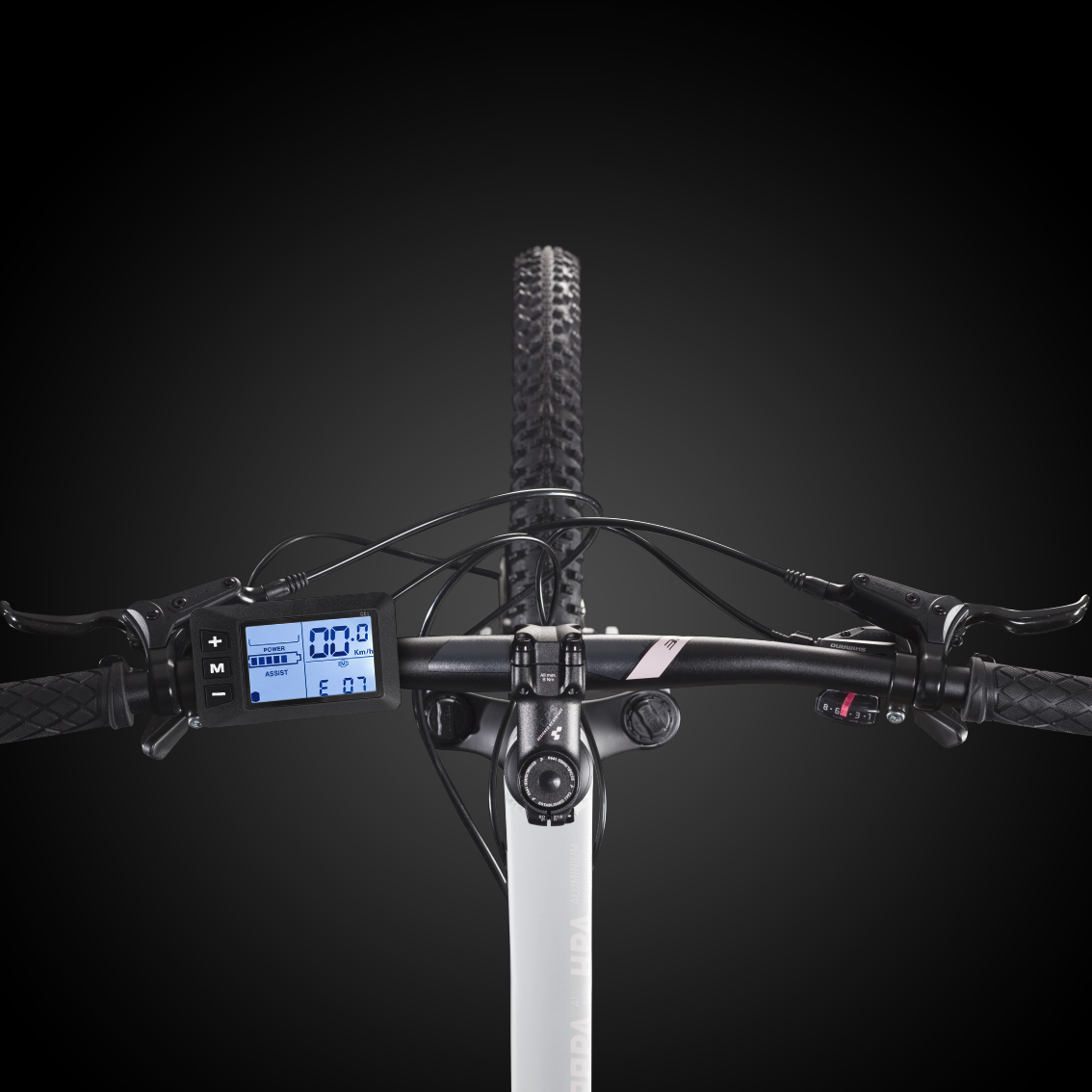

G51 Display:
* G51 Display is made of ABS and plastic , with easy installation, high quality, long service life.
* The display has strong functionality, includes mileage display, speed diaplay, headlight display, mode setting ,ect.
* The LCD screen is clear, various data are observable at any time

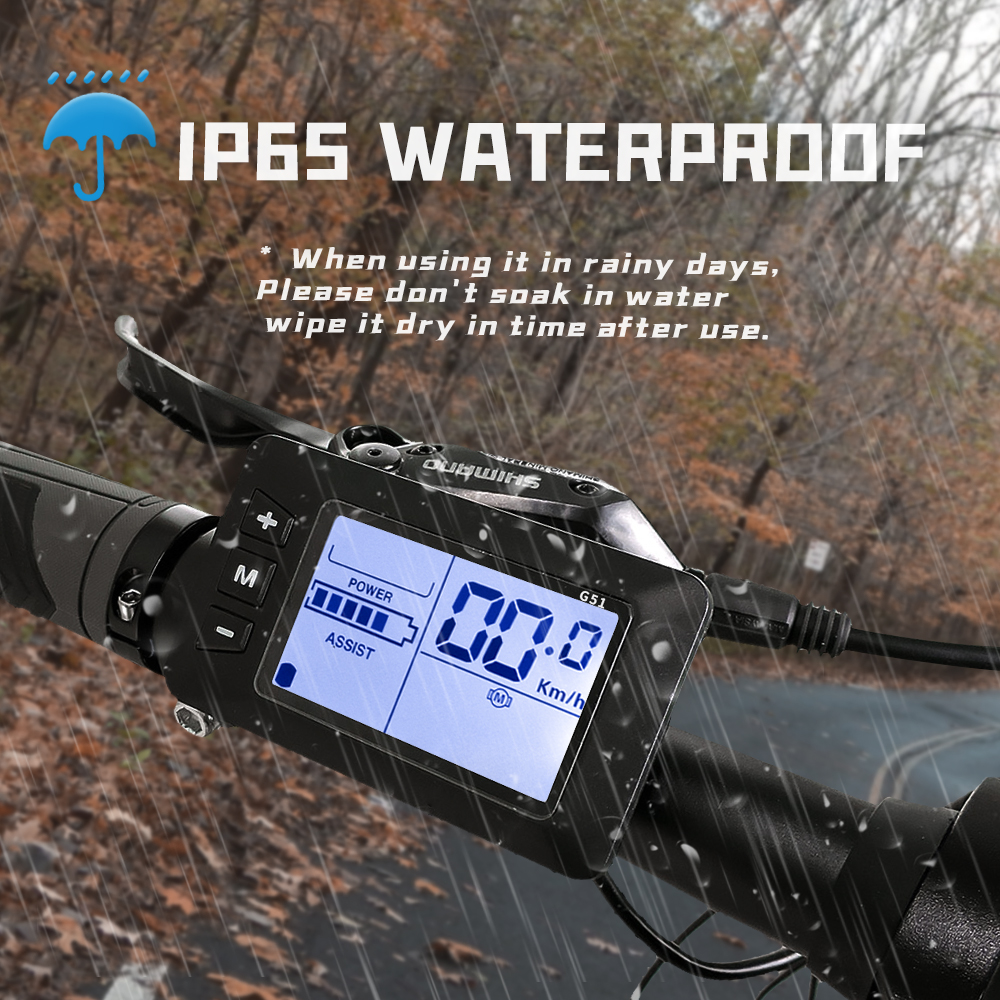

When using it in raining days,please don't soak in water,wipe it dry in time after use.
Rated Voltage 24V/36V/48V!!


250/350W Controller：


500W Controller：
