KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller

SKU: 48V2KW-WG-F-3IN1
  • Upgrade your ride with the MY1020-WG Motor Kit, a powerful plug-and-play solution designed for Razor upgrades, electric go-karts, scooters, and custom DIY builds.The kit includes the MY1020-WG brushless motor, NS12 FarDriver Bluetooth programmable controller, and easy-control twist throttle—everything you need for a clean, complete power upgrade.
  • The MY1020-WG offers two performance options:48V 2000W for stable, balanced everyday riding，72V 3000W for maximum torque and explosive acceleration.

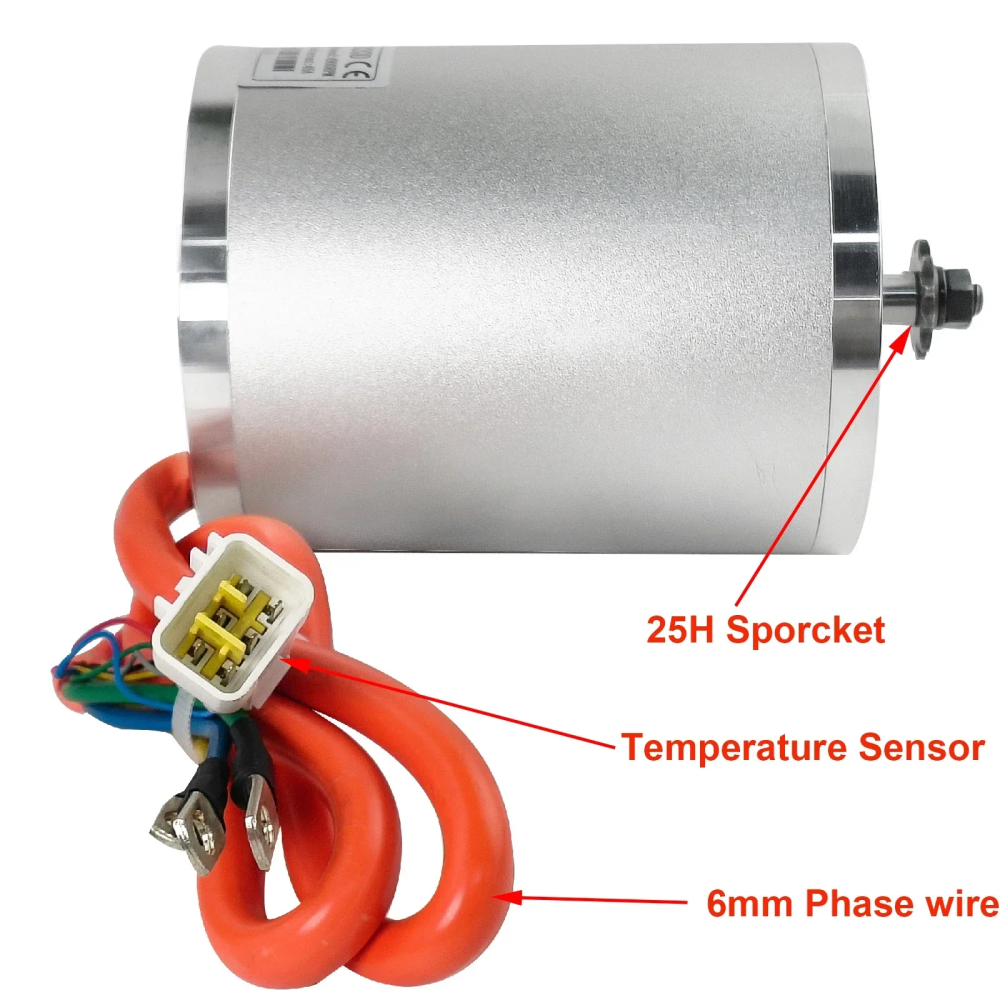

  • The MY1020-WG Motor Built with a KTY83-120 temperature sensor, 6mm² phase wires, and 8-pole magnet design, the motor stays cool under heavy loads.You can freely set temperature limits through the Bluetooth controller to prevent overheating and protect the motor during high-power runs.
  •  Compatible with Razor MX650 / MX500 / SX500 / RSF650, go-karts, e-scooters, mini e-motorcycles, and light ATVs.  The NS12 FarDriver controller ensures smooth sine-wave performance, strong low-end torque, Bluetooth built-in, supports both Android and iOS apps, and allows users to customize power, speed, and performance settings in real time.
  • The durable pure-copper coils, aluminum alloy housing, and reversible rotation design make this kit reliable, efficient, and perfect for riders who want a serious upgrade.
5 (6 Reviews)
40 Sold
$399.00 $315.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    US
    CN
  • Type:
    with bracket
    with bracket
    No bracket
    No bracket
  • Parameter:
    48V2000W
    72V3000W
Quantity:
-
+
Add to Favorites (2)
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
1/1
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 2000W 3000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • KUNRAY MY1020 48V 72V 3000W 2000W Brushless Motor with Temperature Sensor for Electeic Bike Scooter Go Karts Fardrive Controller
  • Description
motor
Rate Voltage 48VDC 72VDC
Rate Power 2000W 3000W
Rate Current 42A 45A
Rate Speed 4300rpm/min 4900rpm/min
Max Speed 5700rpm/min 6700rpm/min
Torque 5.1N.m 5.44N.m
Net weight About 5.5 kg About 5.5 kg
Load Weight about 150-200KG about 150-200KG

⚠️Note：If you want to match with new brand motor, some parameters should be tested by yourself. It maybe need Program again , and must download the APP, and buy fardriver bluetooth.

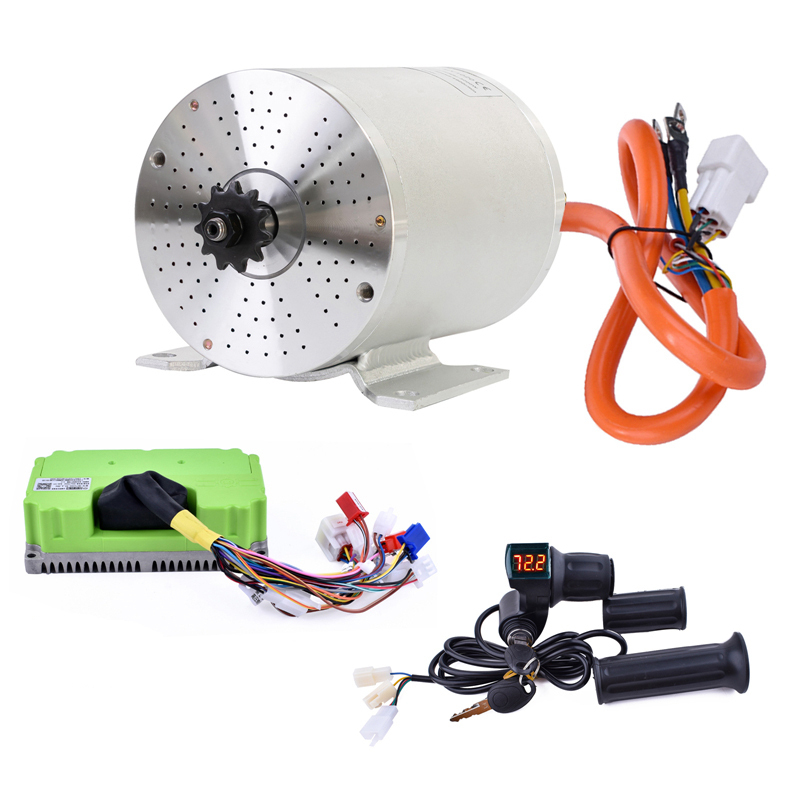

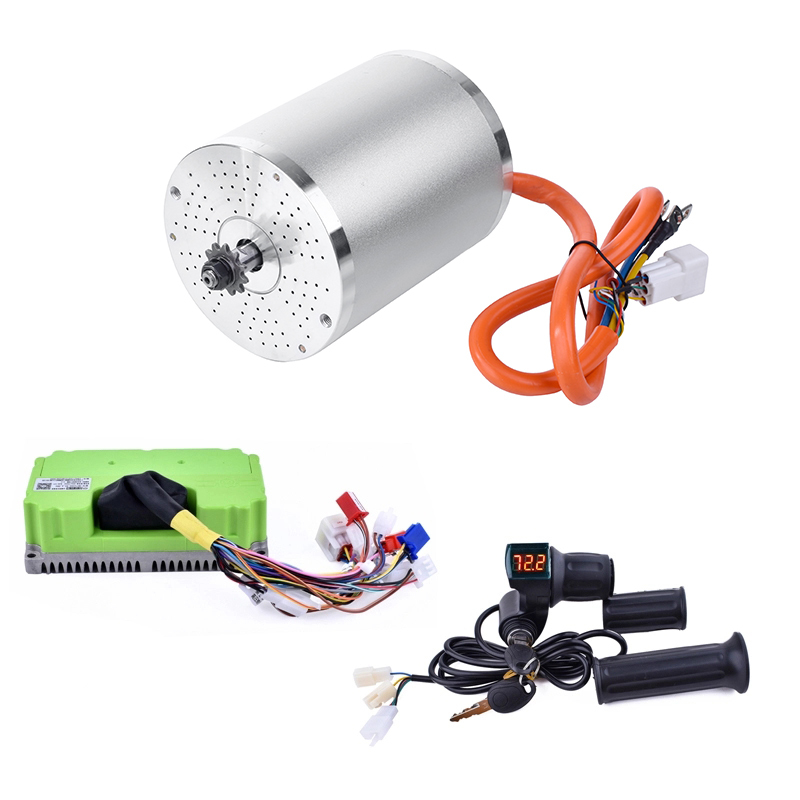

⭐Packing list:

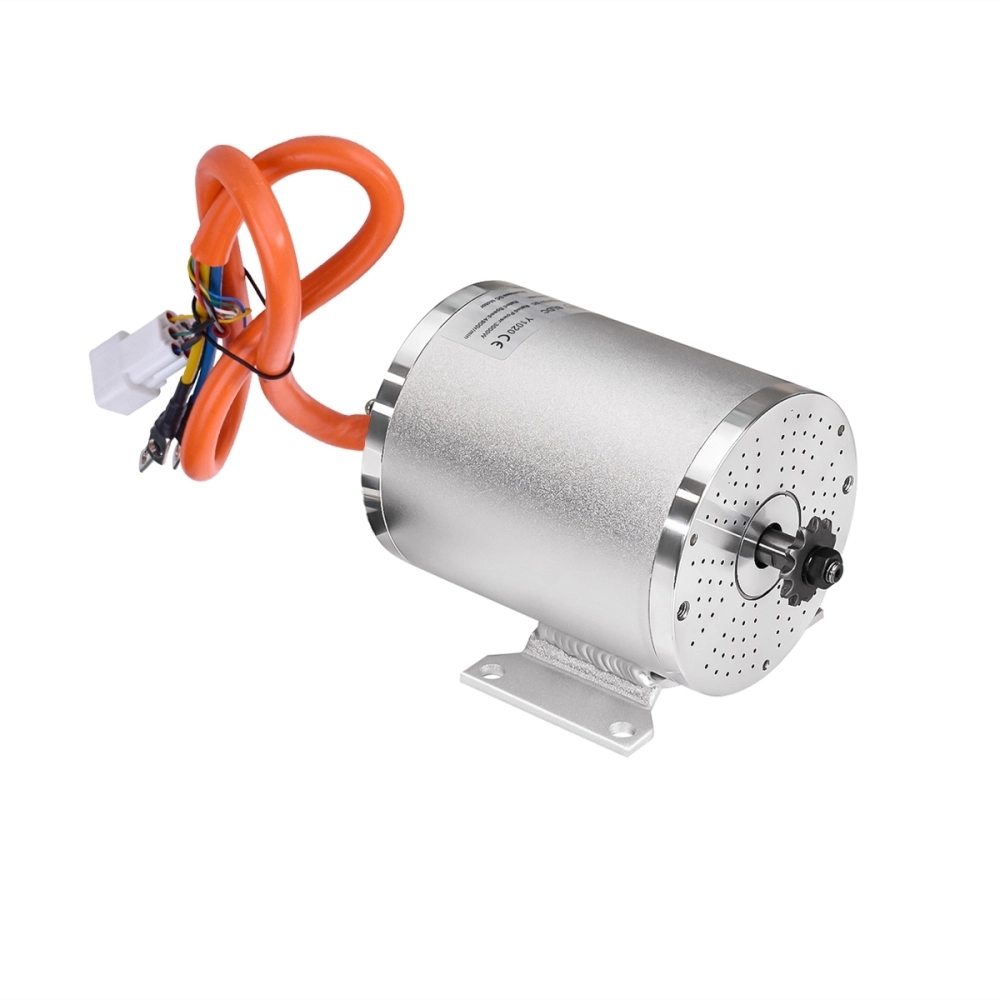

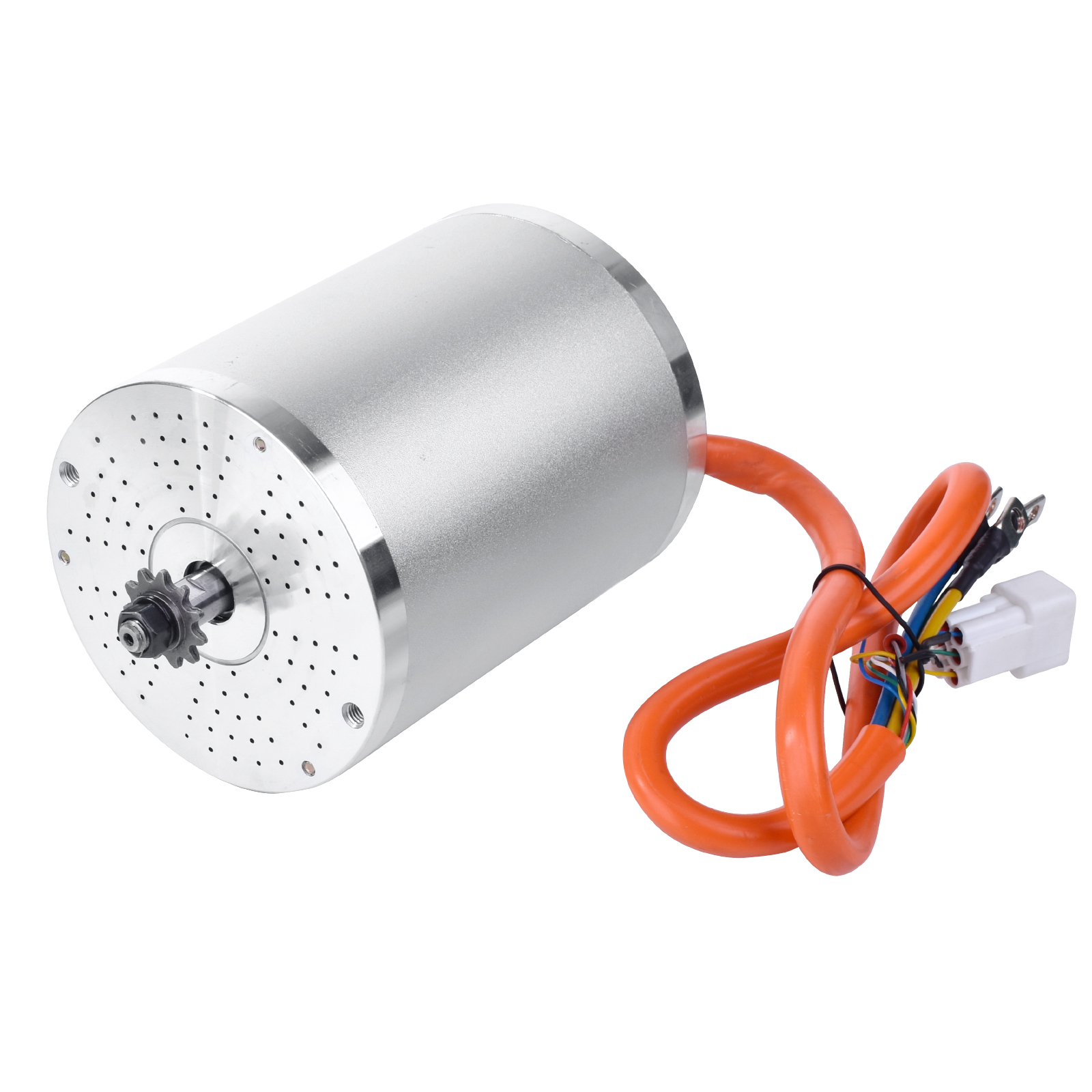

1x High Speed Brushless Motor

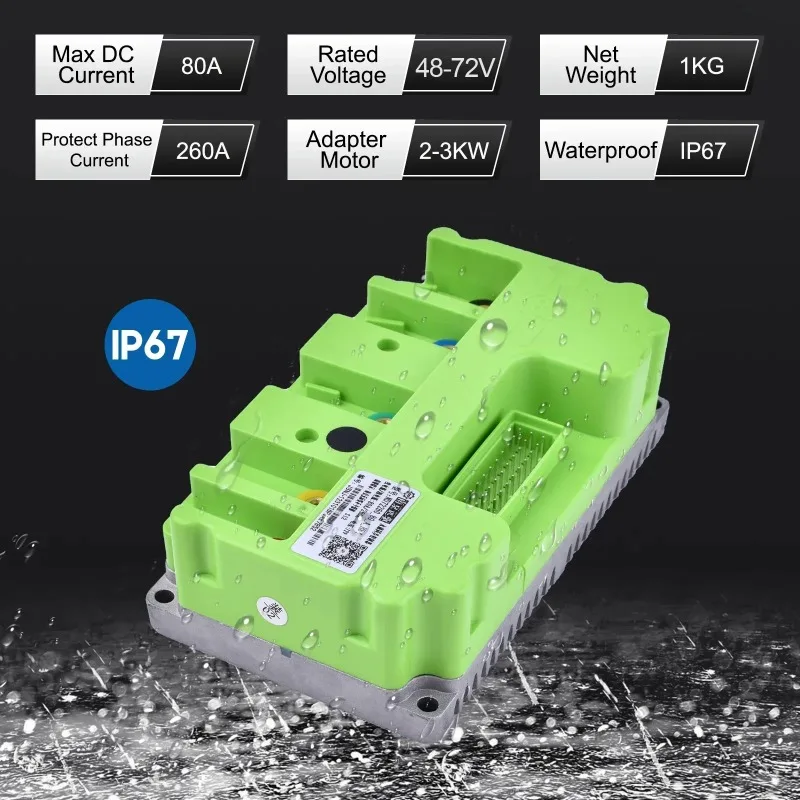

1x Fardrive Programmable Sine Wave Controller

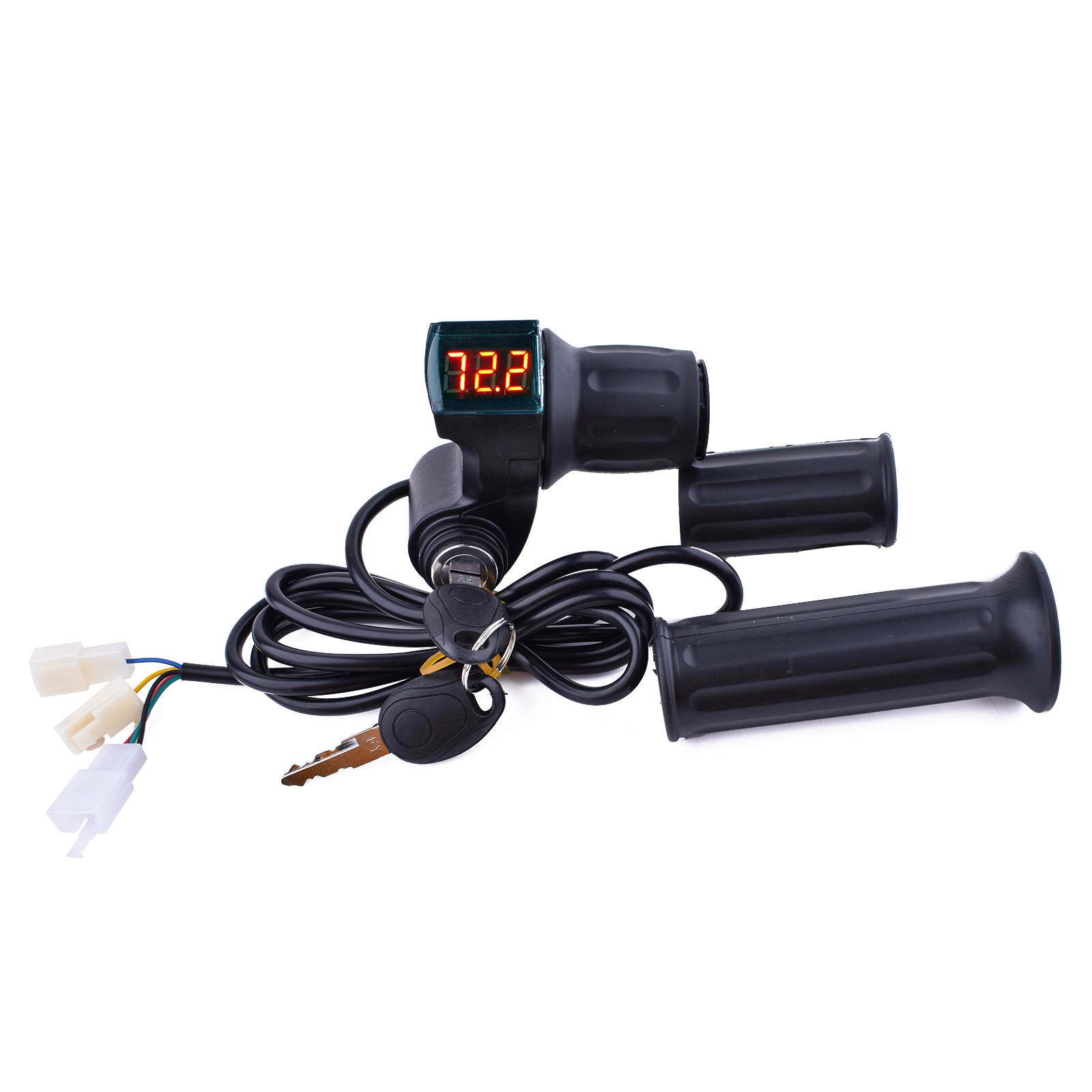

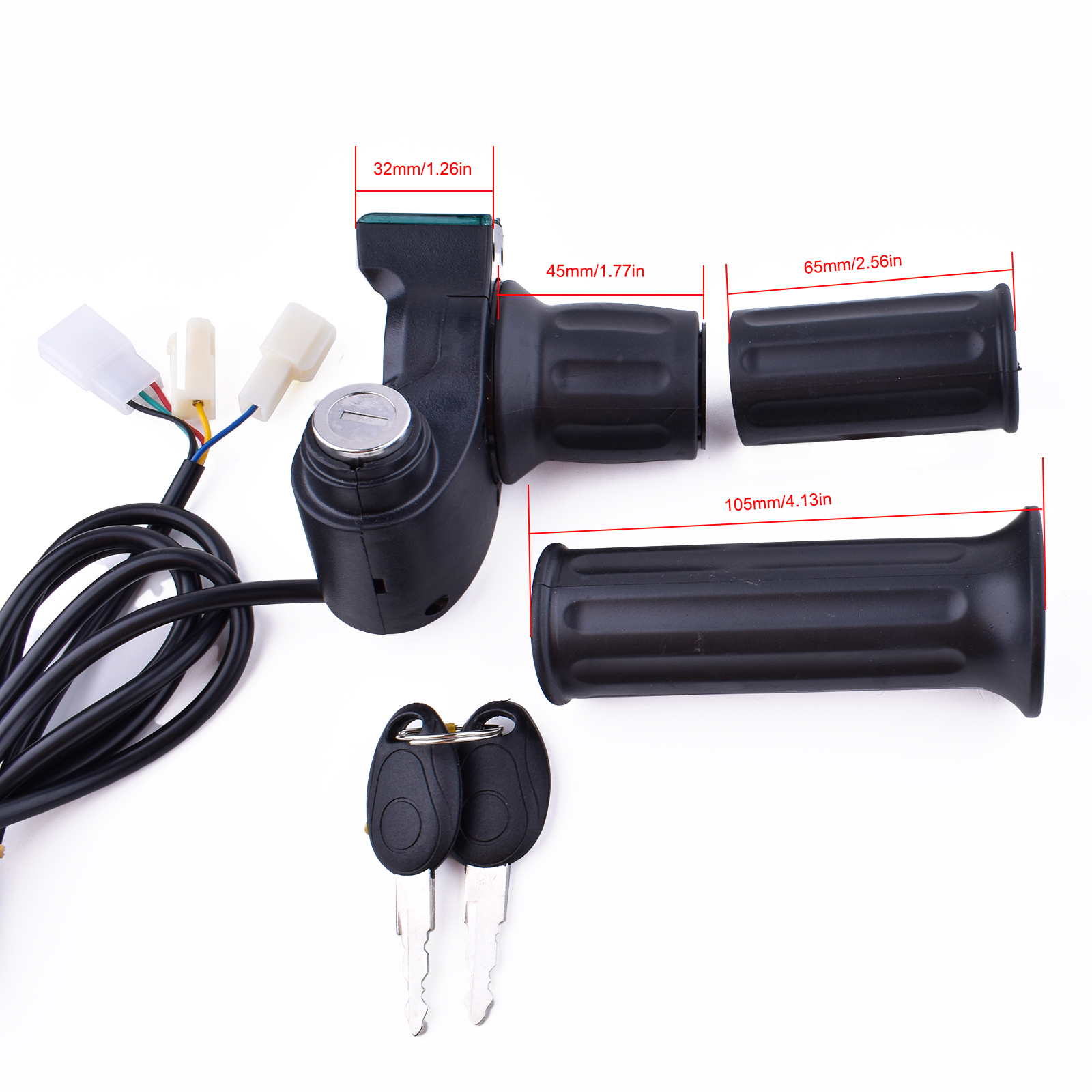

1x LED Twist Throttle

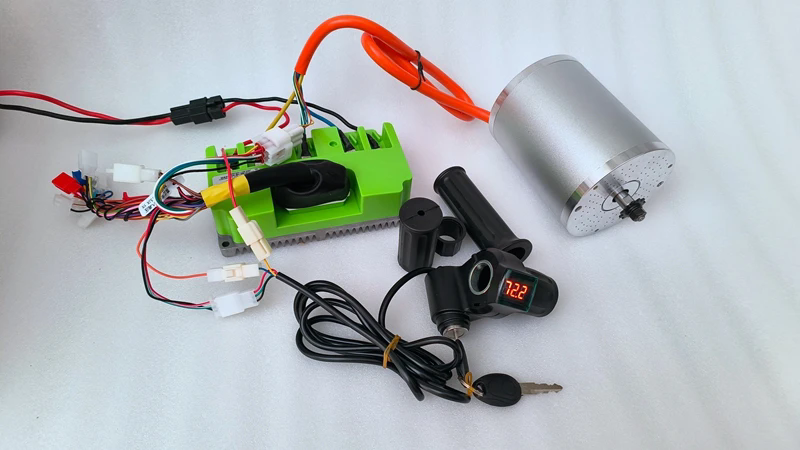

🔥MY1020-WG Motor Kit – Complete Plug-and-Play Power System
✔Perfect for Razor Upgrades • Go-Karts • Scooters • DIY EV Builds
  • The MY1020-WG Motor Kit is a fully integrated power system designed for riders who want a clean, simple, and powerful upgrade.
  • This complete kit includes the MY1020-WG brushless motor, NS12 FarDriver Bluetooth sine-wave controller, and easy-control twist throttle, all pre-matched and tuned so beginners can use it straight out of the box—no extra programming, no parameter adjustments, no guesswork.
✔One Complete System, Optimized to Work Together
  • The MY1020-WG motor and NS12 controller are factory-matched to deliver smooth acceleration, strong torque, and stable high-power output.
  • All temperature limits, hall settings, and motor parameters are pre-configured, making the entire kit a true plug-and-play solution for most Razor bikes and DIY electric vehicles.
✔Powerful Performance for Every Riding Style
  • 48V 2000W – balanced power for daily riding and moderate upgrades
  • 72V 3000W – extreme torque and faster top speed for performance riders
  • Both versions maintain excellent heat control thanks to the built-in KTY83-120 temperature sensor, which works seamlessly with the NS12 controller to prevent overheating or motor burnout.
✔Heavy-Duty Build for High Load Riding

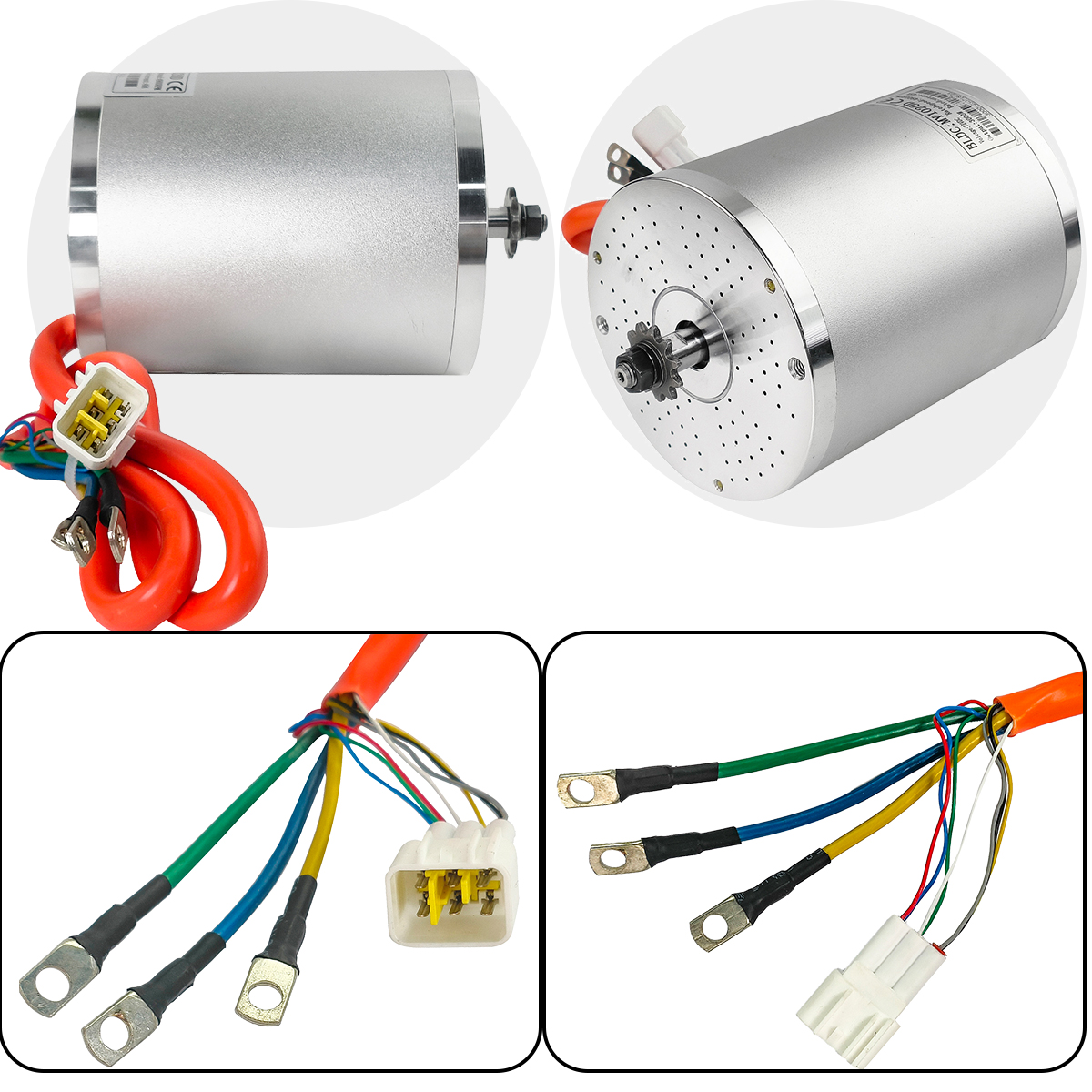

  • The integrated power kit uses 6mm² phase wires, pure copper winding, and a durable aluminum alloy shell to maintain stable output even under heavy torque.
  • The motor’s 8-pole magnet design improves throttle response and acceleration, making the riding experience more immediate and exciting.
✔Bluetooth Control—Adjust Settings Anytime
  • With the NS12 FarDriver controller’s built-in Bluetooth, you can connect to the mobile app (iOS & Android) to adjust power, acceleration, speed limits, and temperature protection.
  • However, beginners don’t need to adjust anything—the system already comes with ideal settings for the MY1020-WG motor.
✔Wide Compatibility for Razor & DIY Builds
The kit fits a wide range of vehicles, including:
  • Razor MX650 / MX500 / SX500 / RSF650

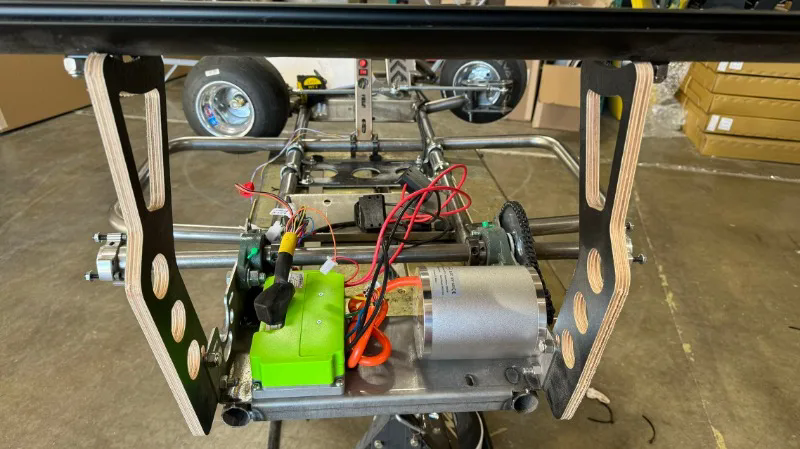

  • Electric go-karts & drift trikes
  • Mini electric motorcycles
  • E-scooters & mopeds
  • Custom EV engineering projects
✔Ready to Use—Just Install and Ride
  • The included twist throttle works directly with the NS12 controller for fast and accurate motor response.
  • Forward and reverse rotation is supported—just connect a reverse switch if needed.











📌Additional Notes

√ If you need to use the reverse function, you must enable it in the FARDRIVER APP.Please set the parameters according to the following image.（Using the Kunray NS12 as an example, the parameters should be set as follows.）


FAQ
What vehicles is this 48V/72V 2000W–3000W brushless motor compatible with?
This brushless motor works well with electric bikes (e-bikes), electric scooters, go-karts, minibikes, trikes, and other DIY electric vehicle builds. It’s also suitable for custom conversions with the FarDrive controller.
What is included in the motor kit?
MY1020 48V/72V brushless motor
Temperature sensor
FarDrive controller (compatible with 3-speed modes)
Mounting hardware
(The battery, throttle, and display are typically not included unless specified.)
What performance can I expect from this motor?
Performance varies based on vehicle weight, wheel size, and gearing.
• The 72V 3000W setup delivers higher torque and faster acceleration than the 48V 2000W version.
• Both configurations provide strong mid-range torque suitable for hilly terrain and heavier riders.
Can this motor be run in reverse?
Yes — with a properly configured controller (such as FarDrive or equivalent), you can enable reverse mode for easier maneuvering, especially useful on go-karts and utility vehicles.
What controller should I pair with this motor?
This motor is designed to work with controllers like the FarDrive unit included or any compatible brushless DC controller rated for 48V/72V and matching current output. Controllers with programmable throttle curves and thermal cutoffs are recommended.
Is installation difficult if I’m a beginner?
Installation is manageable for most DIYers with basic electrical knowledge. You will need to mount the motor, connect the controller to the battery and throttle, and secure all wiring. If you’re inexperienced, consider referring to installation guides or seeking help from a technician.

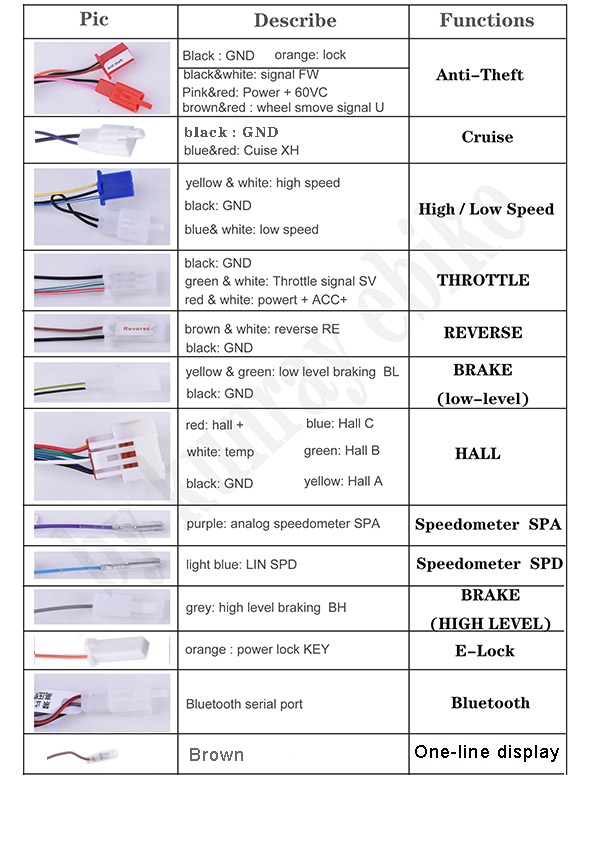

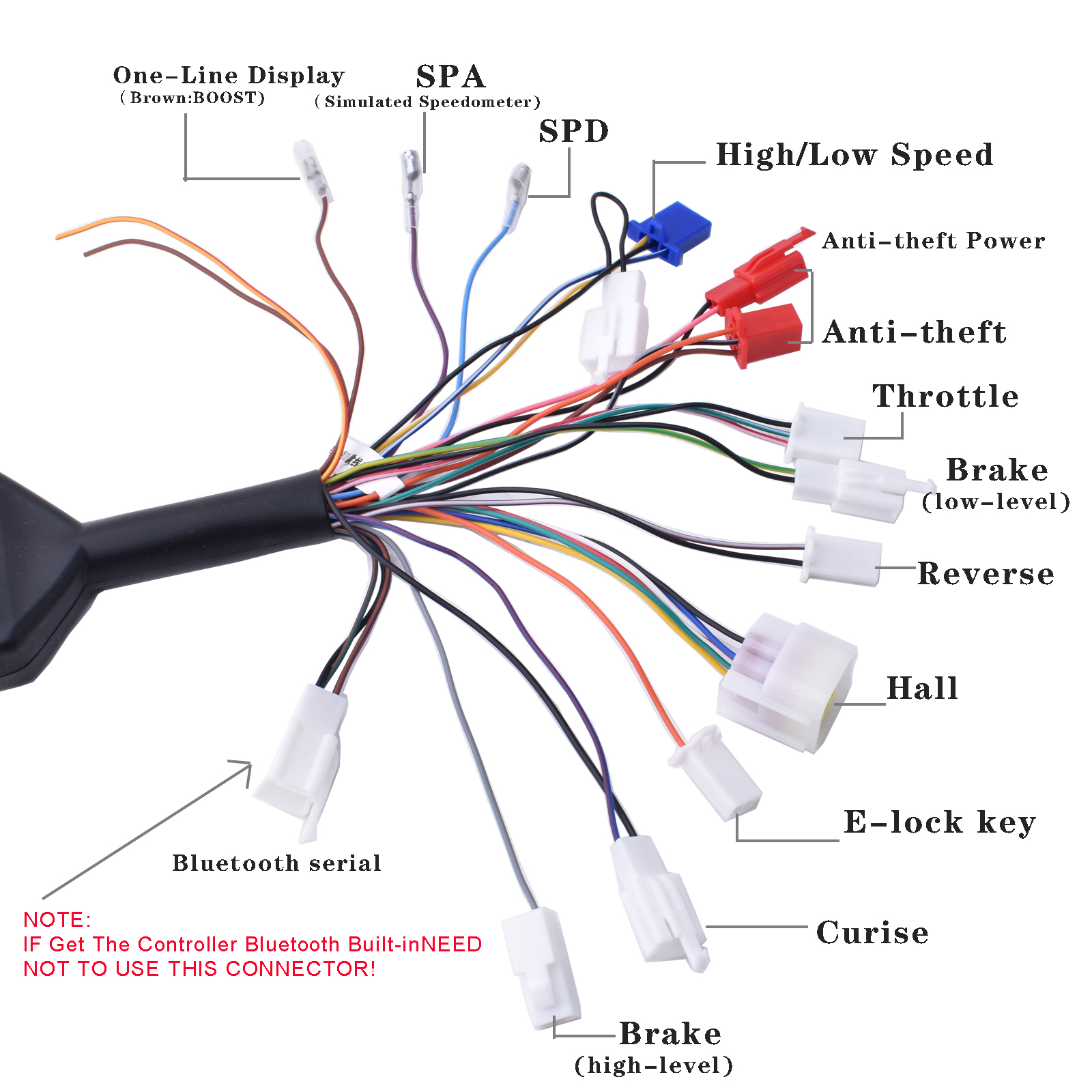

How should I wire the throttle and display?
Connect the throttle output to the controller’s throttle input. If your kit includes a display, follow the wiring diagram provided by the manufacturer for correct signal and power lines. Always ensure secure and correct polarity before powering on.
Will this motor handle hills and heavier riders?
Yes. Especially when paired with a 72V battery and appropriate gear ratio, this motor delivers strong torque capable of tackling inclines and heavier loads. Adjust gearing if you’re targeting more top speed vs hill climbing.
What maintenance does the motor require?
Brushless motors require minimal maintenance. Periodically check connectors and wiring insulation. Ensure the temperature sensor remains secured, and clean any dust or debris around mounting areas.
