Details:
1. Fit voltage: 12V-96V Universal.
2. Tube Size : fit for 22mm handlebar tube
3. Wire length : 150-160mm about
4. Cable type: random
5. Material: High-quality PVC
6.Work Voltage: DC 0.8V-42.V

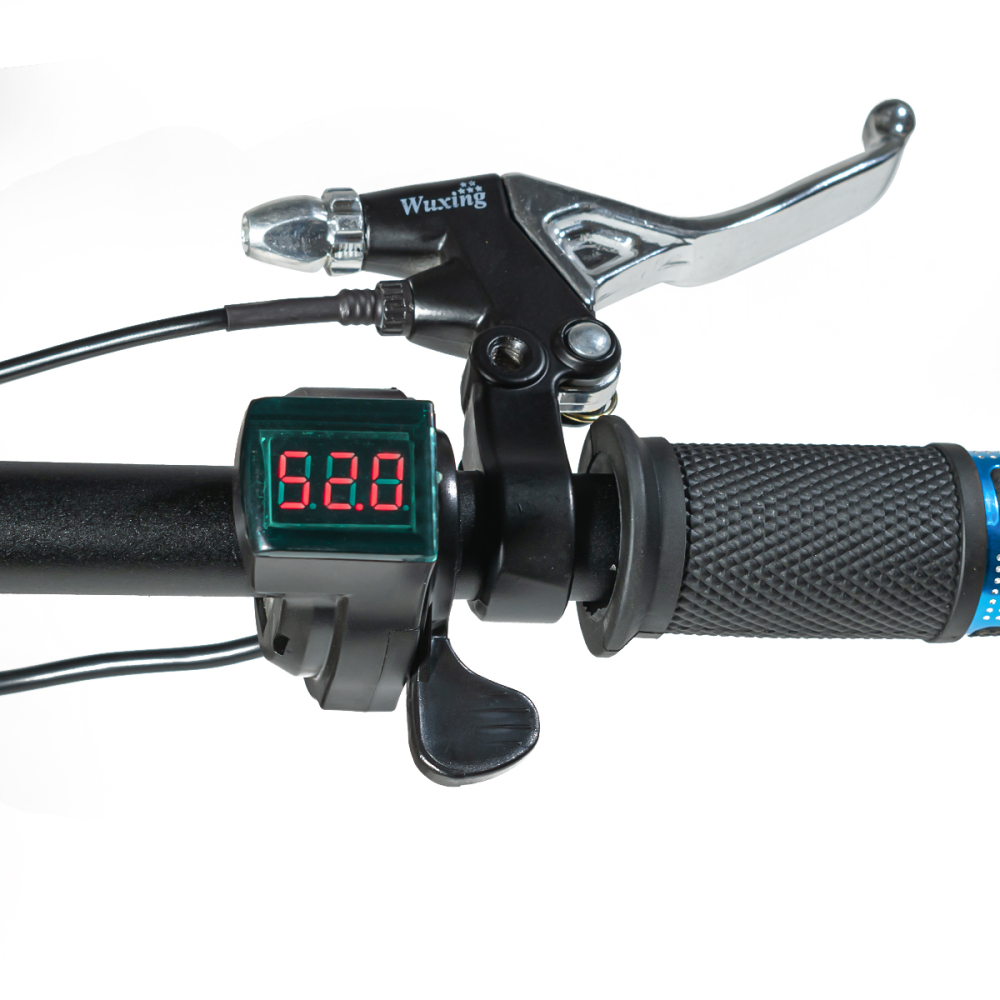

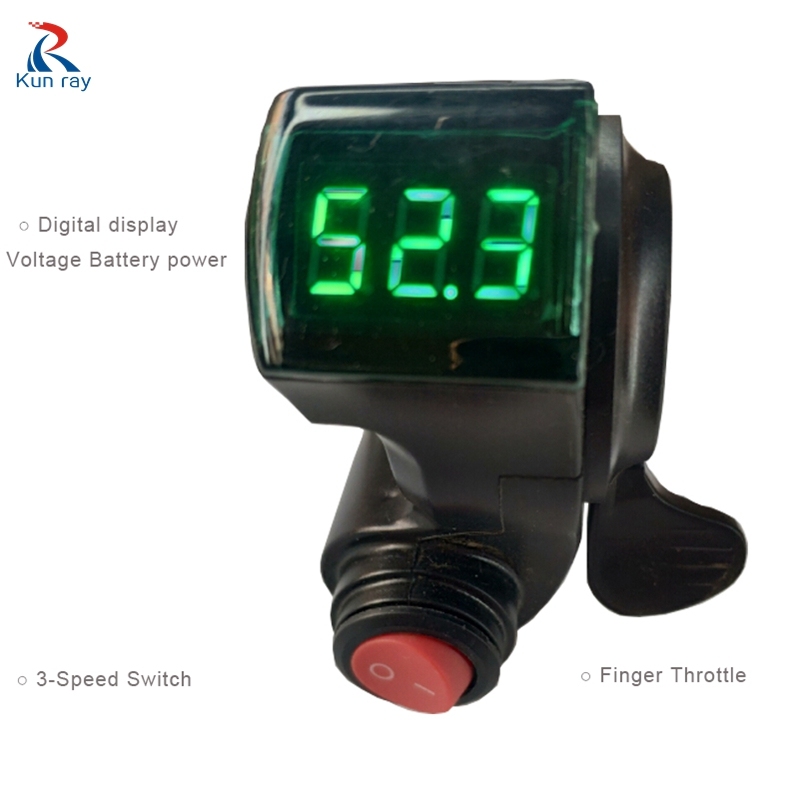

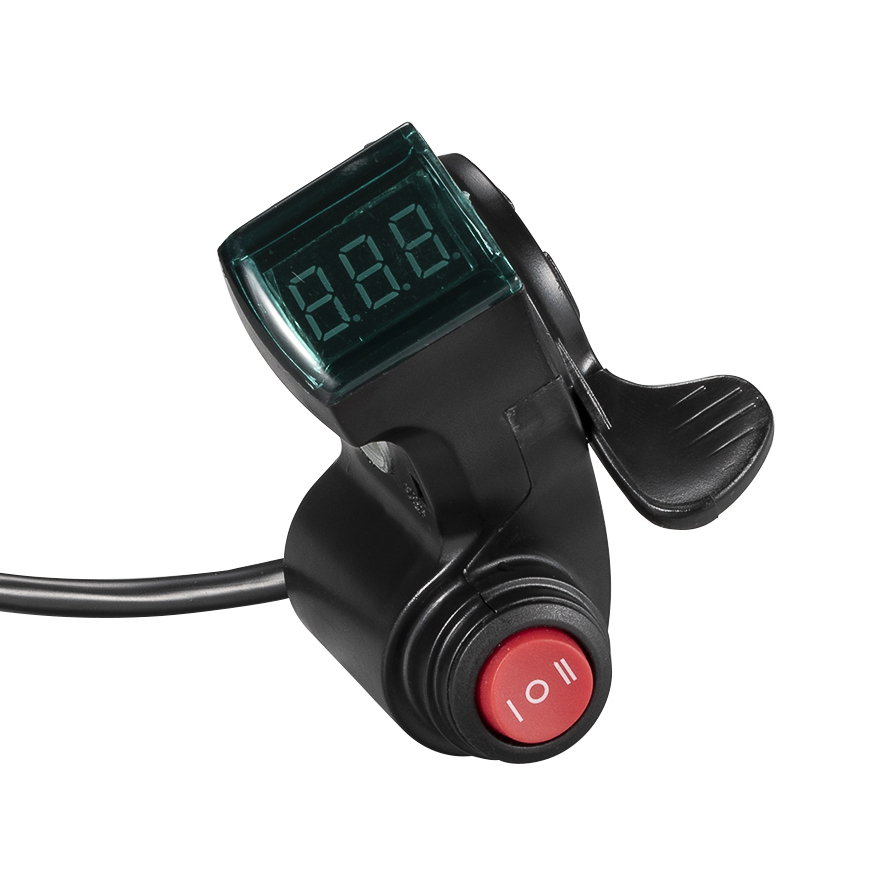

7. Thumb throttle Without Handle with LCD display and power switch.
About Wiring: ( according your itmes wiring number,below date not only for one items)
4 wires : yellow is for voltage display wire, connect with electric bike power positive.
5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive,

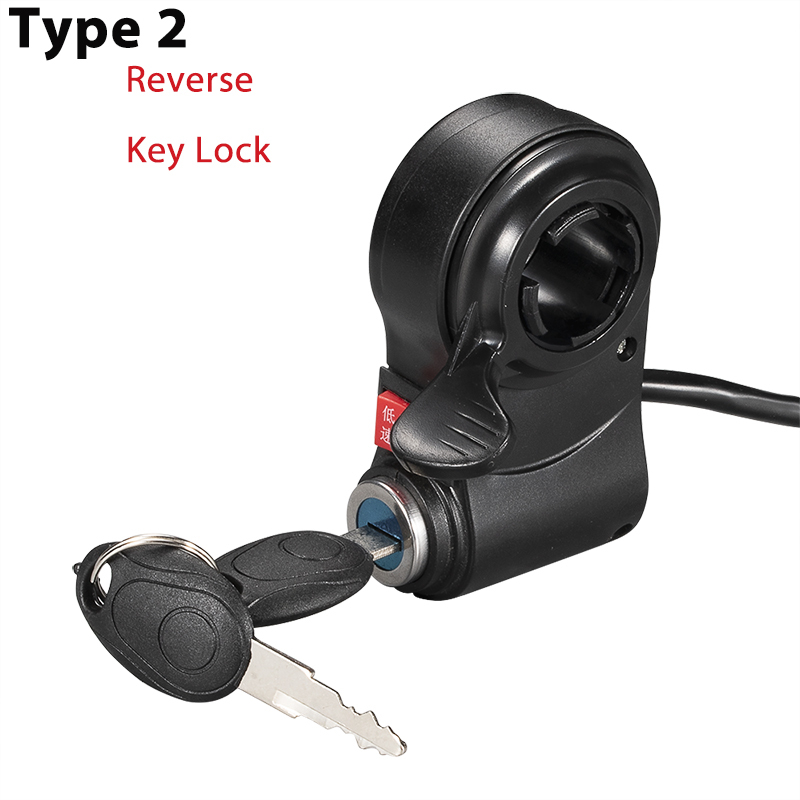

6 wires ; yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch, cruise switch, power lock and so on)

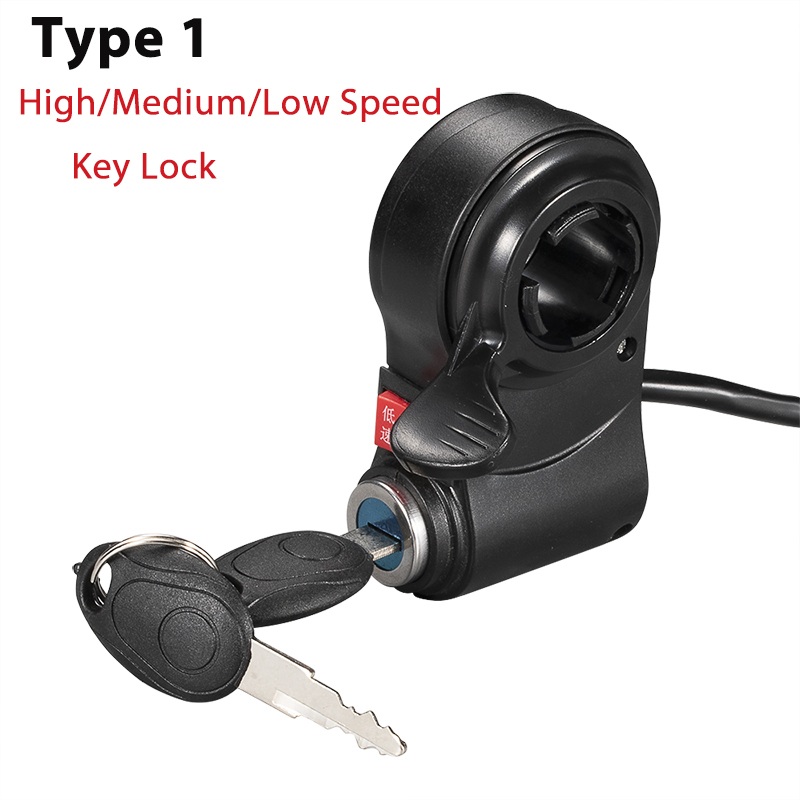

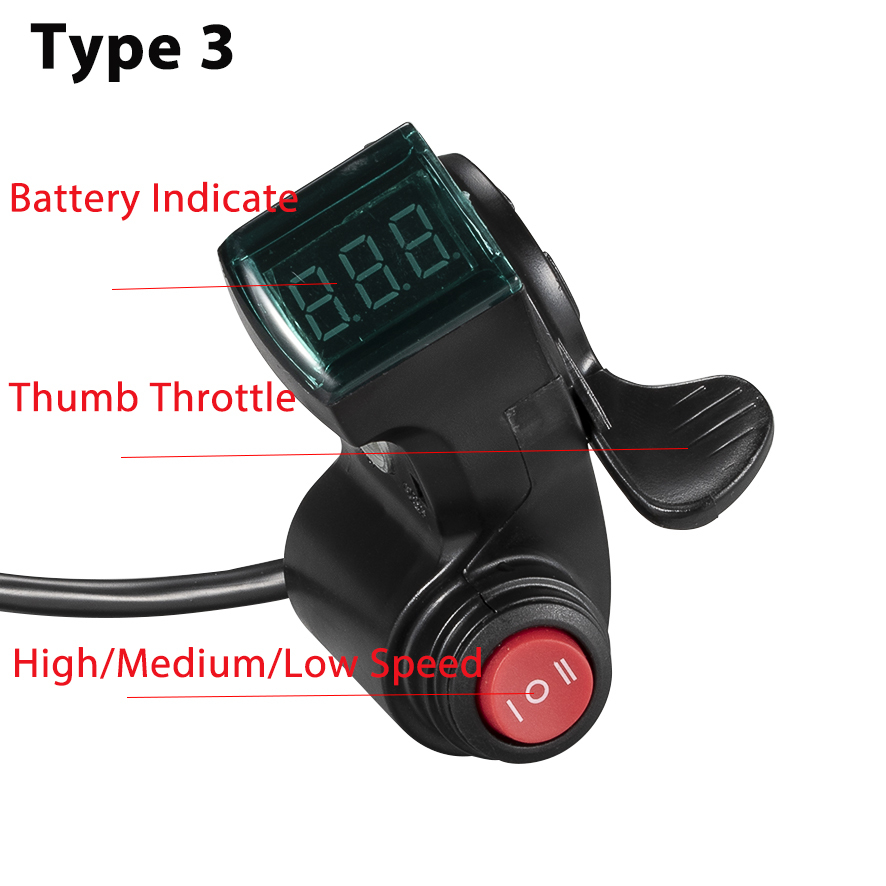

7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.
Features or buyer note :
For 12v electric bike, maximum voltage is about 12.6v, mini is about 9v or higher
For 24 electric bike, maximum voltage is about 29.4v, mini is about 21v or higher
For 36v electric bike, maximum voltage is about 42v, mini is about 29v or higher
For 48v electric bike, maximum voltage is about 54.6v, /58.8v, mini is about 40v or higher
For 60v electric bike, maximum voltage is about 72v, mini is about 49v or higher
For 72v electric bike, maximum voltage is about 84v, mini is about 60v or higher
For other electric bike with higher voltage there should be a voltmeter installed
