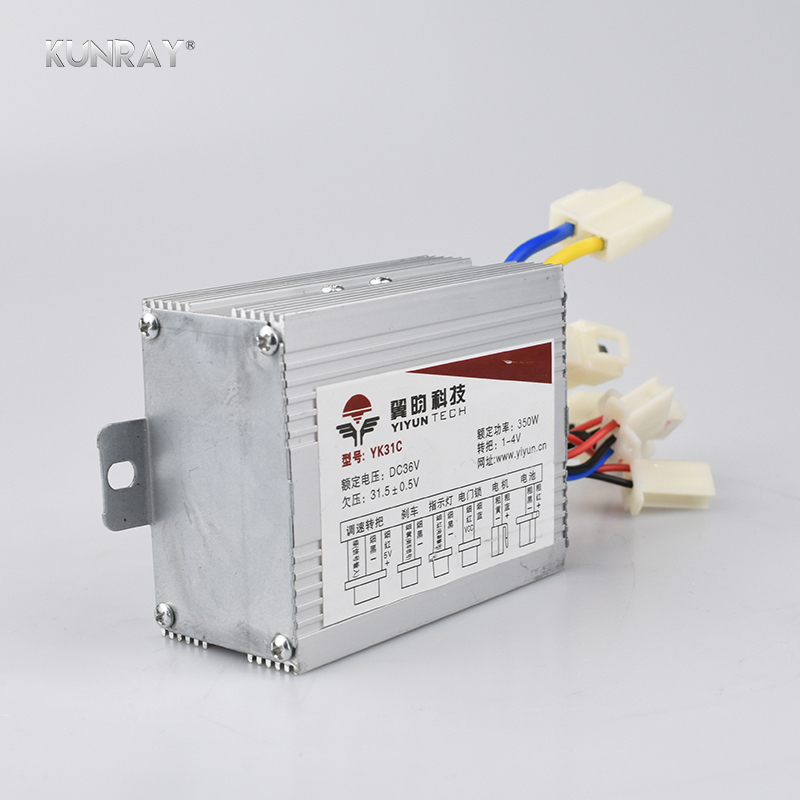

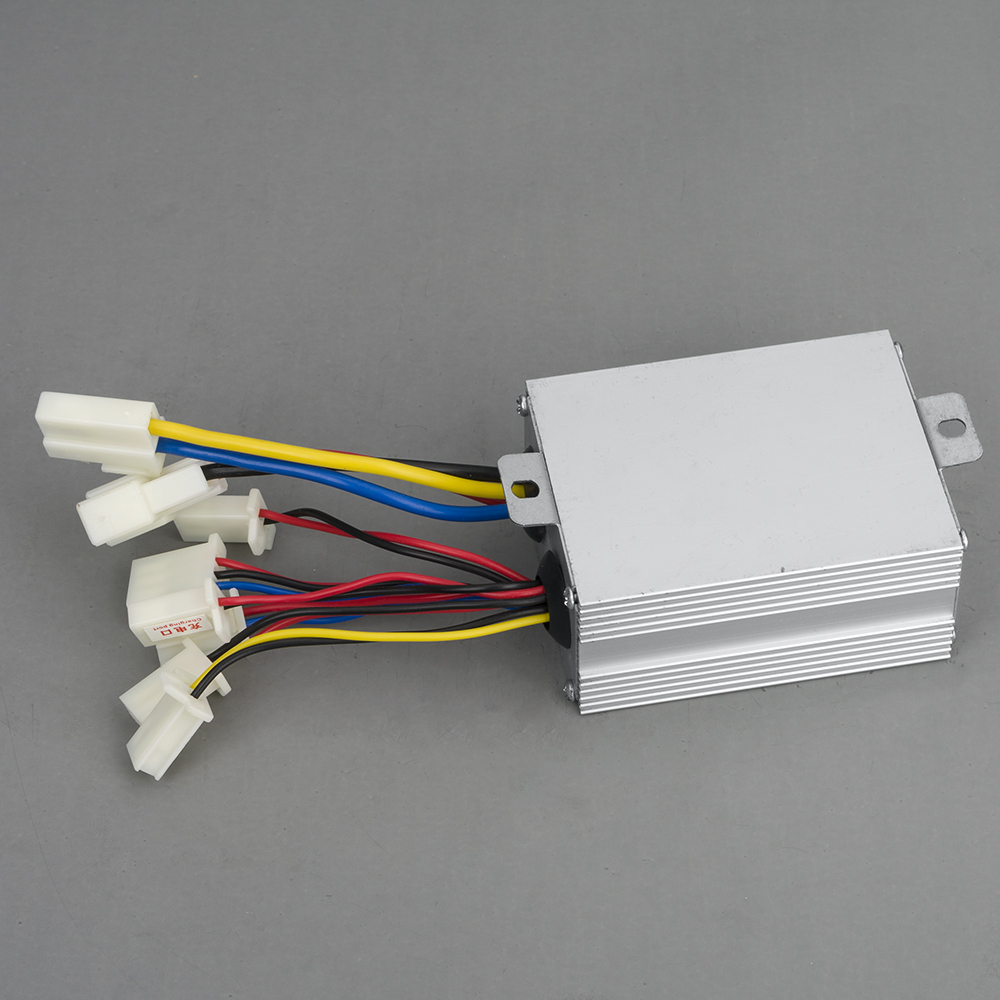

YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller

SKU: YK31C-24350
* This item is brush controller, Match Motor: 350-500-800W motor, Rated Voltage: 24V/36v/48v
* Brush motor controller, it can provide steady speed and sensitive control of braking and direction changes.

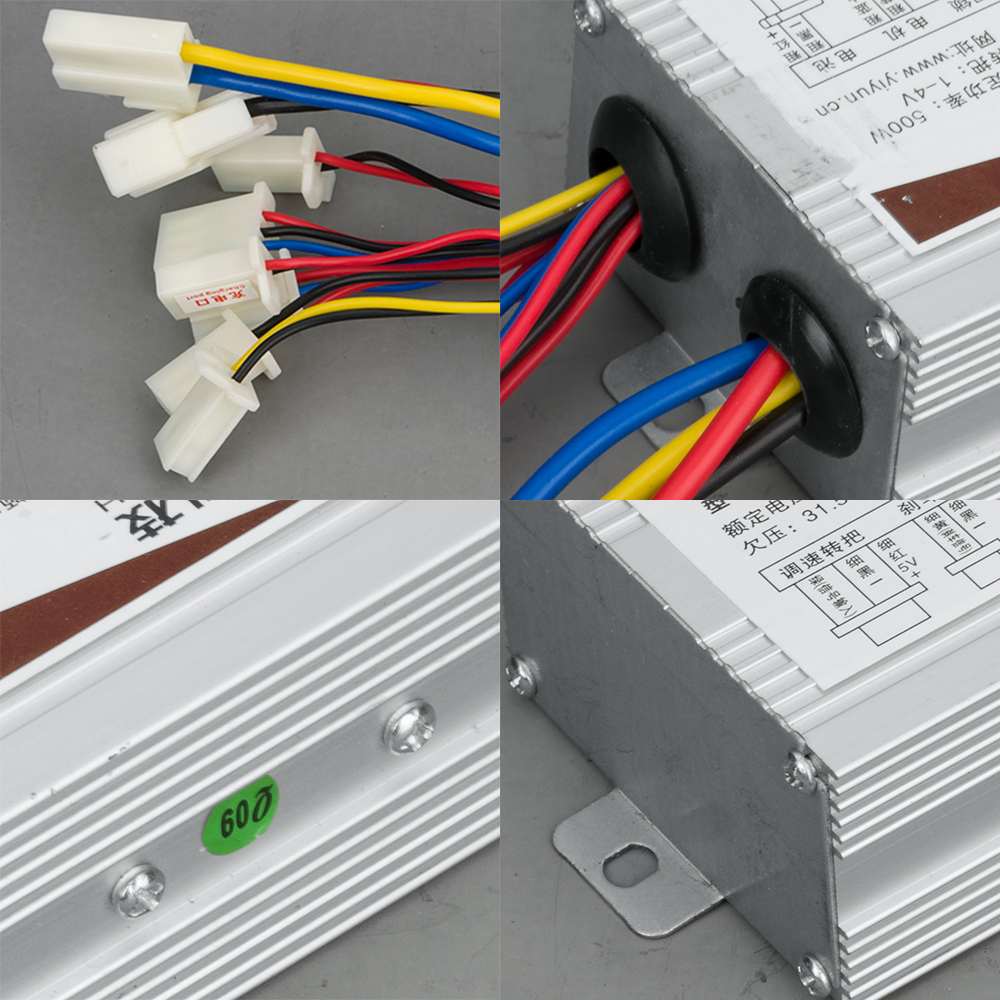

* The controller shell is made of aluminium alloy, which can the inner circuit and good for heat dissipation to avoid thermal overloading, the wires and interfaces are durable.
* Suitable for electric bicycles and scooter.
0.0 (0 Reviews)
0 Sold
$15.00 $7.90
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Parameter:
    24V350W
    36V350W
    48V350W
    24V500W
    36V500W
    48V500W
    36V800W
    48V800W
Quantity
-
+
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
1/1
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • YIYUN YK31C Brush Speed Controller 24V 36V 48V 350W 500W 800W Electric Bicycle Scooter Controller
  • Description

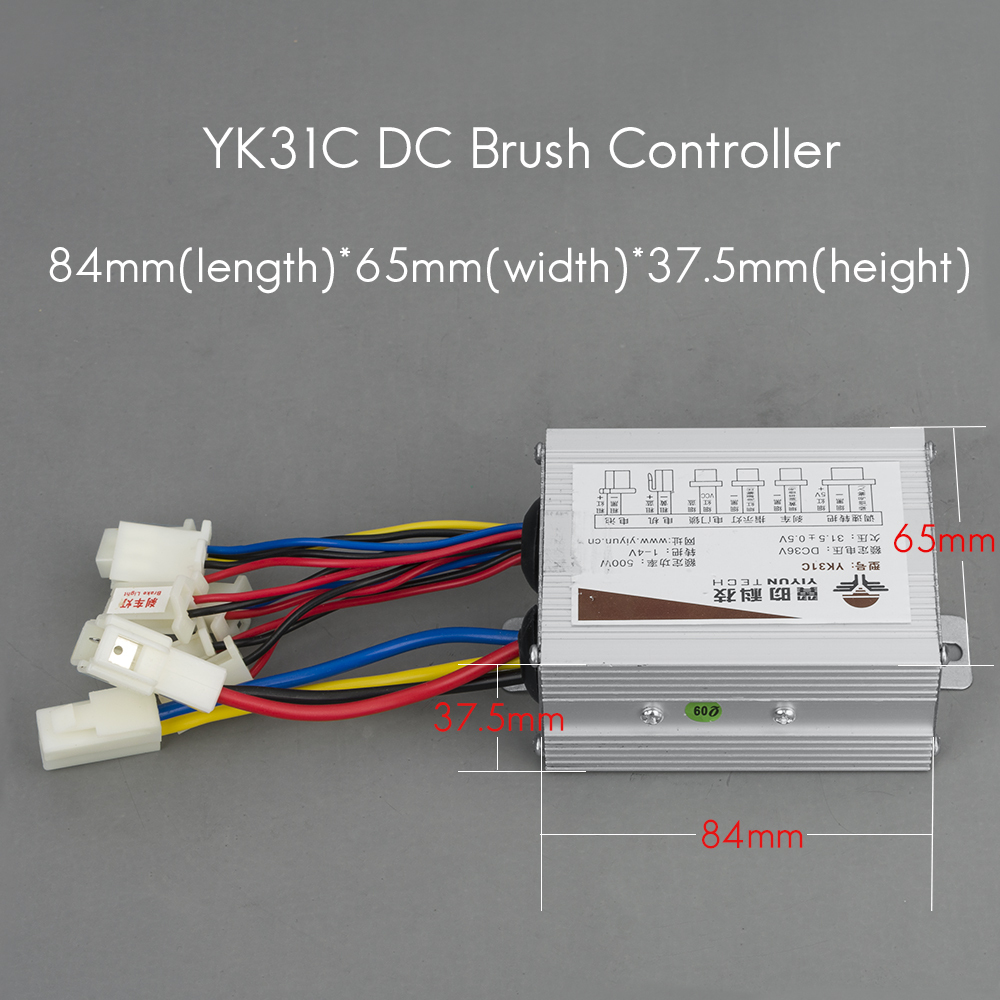

Specification:

Material: Aluminium alloy

Rated Voltage: 24V/36v/48v

Under-Voltage Protection: 20±0.5V

Speed Regulator: 1-4V

Match Motor: 350/500/800W motor

Suitable for: electric bicycles and scooterWeight: Approx. 200g

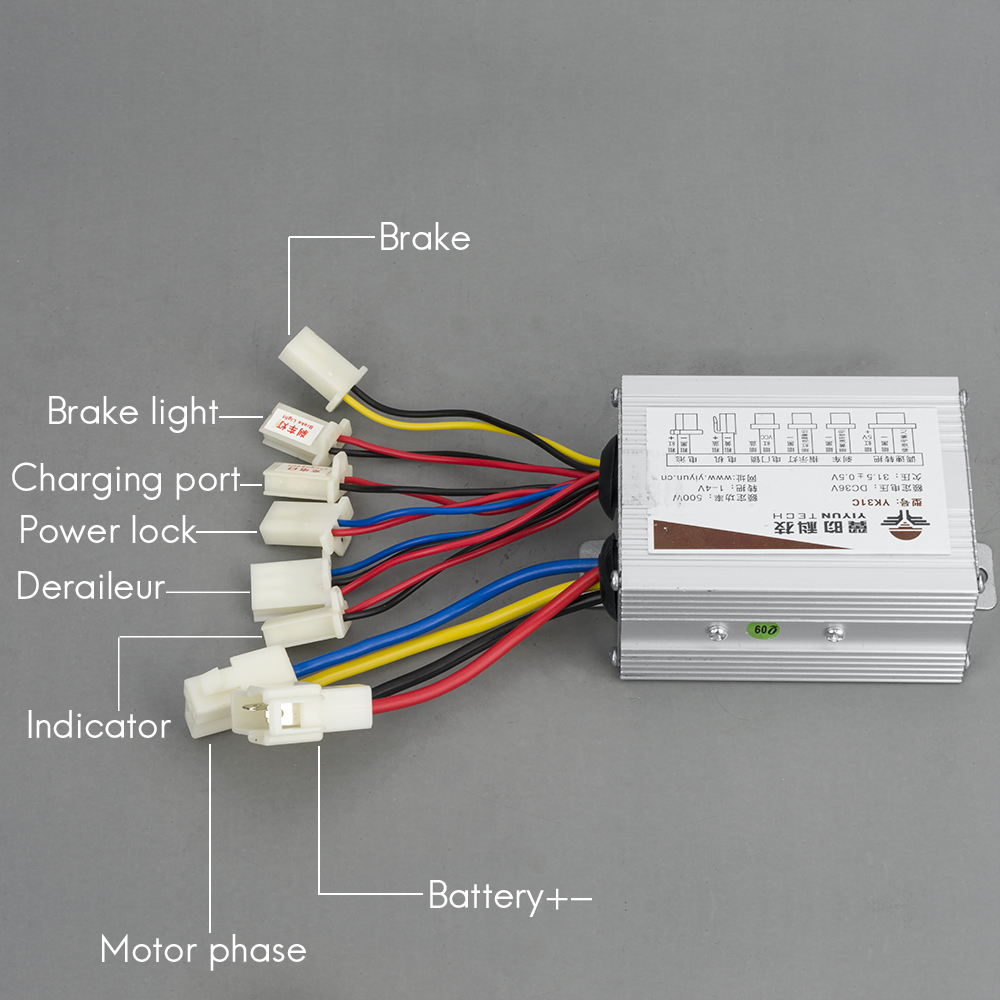

Installation Information:

1. Power ( rough red connect the positive pole ,rough black connect the negative )

2. Motor ( rough blue connect the positive pole ,rough yellow connect the negative )
3. Indicator light (thin black connect the negative , thin red connect the power output )
4. Brake light
5. Brake (thin black connect the negative , think yellow connect brake signal )
6. charging port
7. Electric lock
8. Speed handle ( thin red connect +5V , thin black connect negative , green connect signal )
