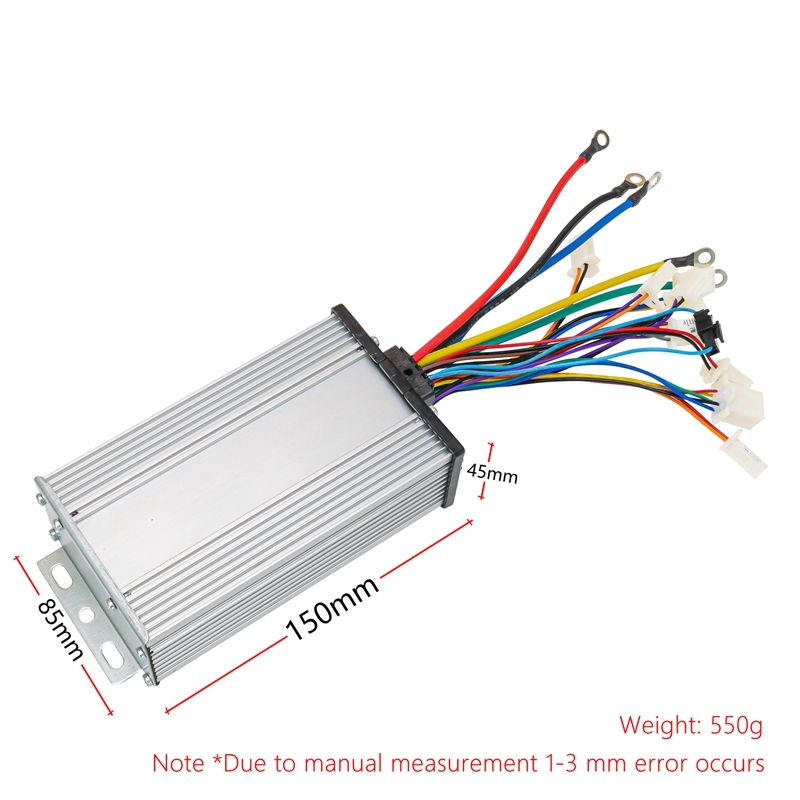

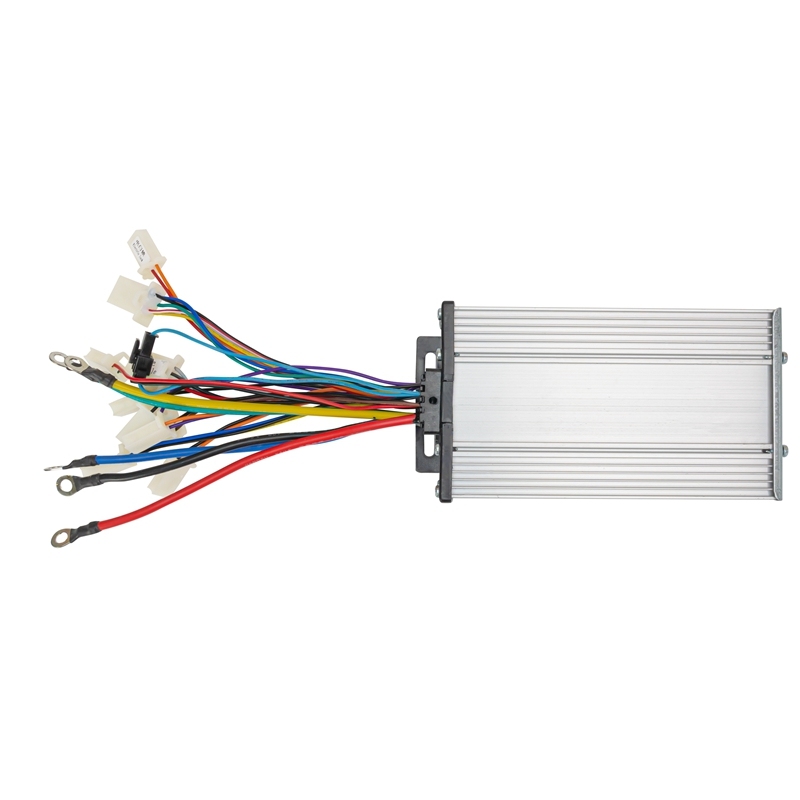

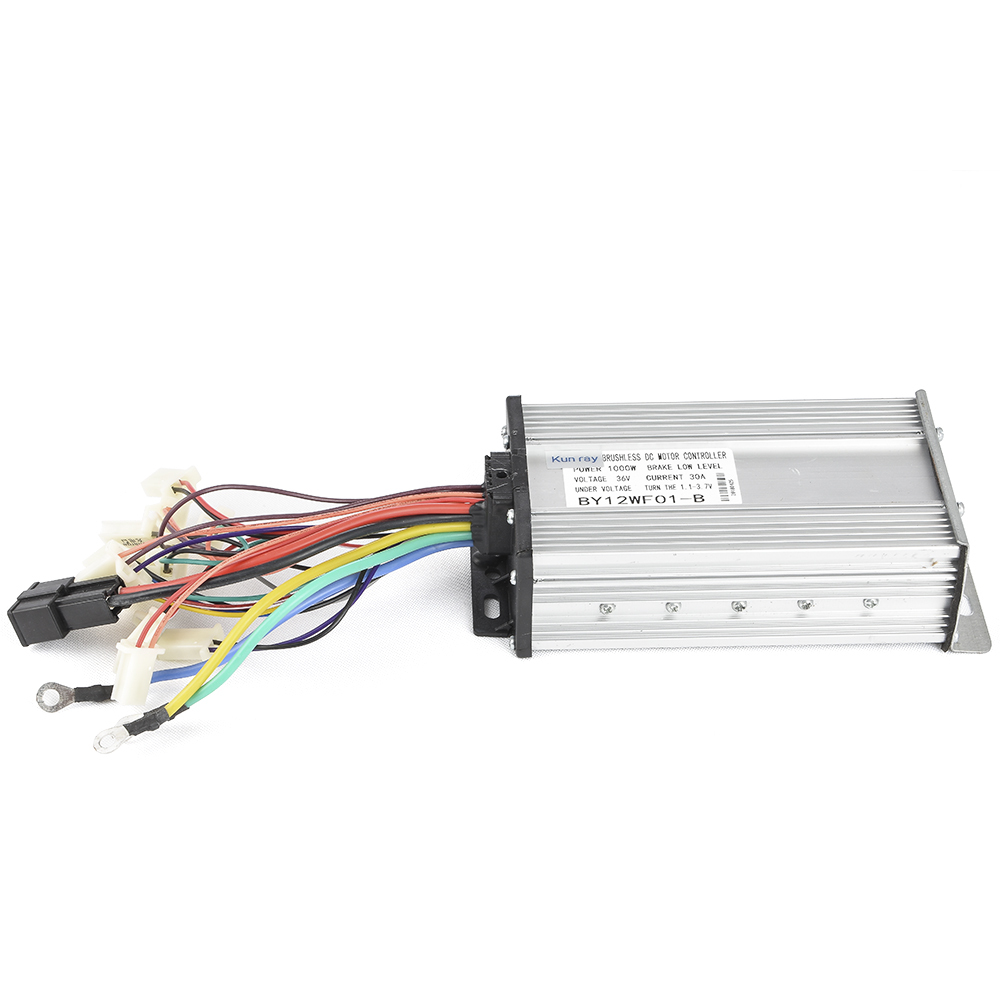

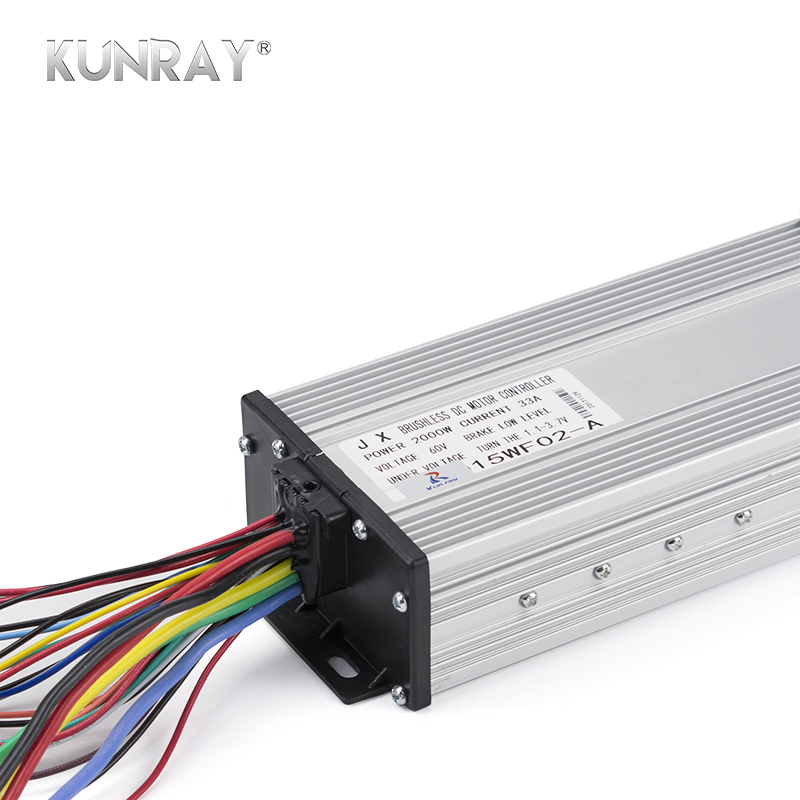

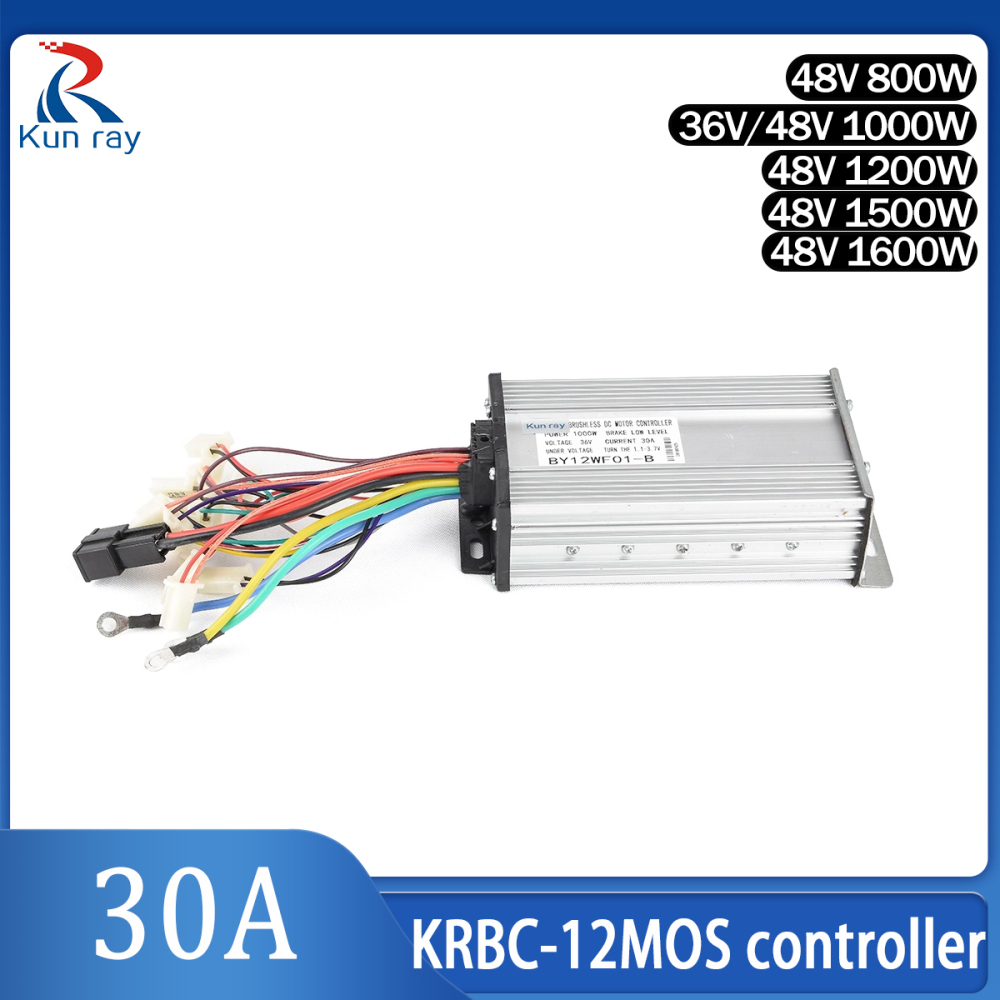

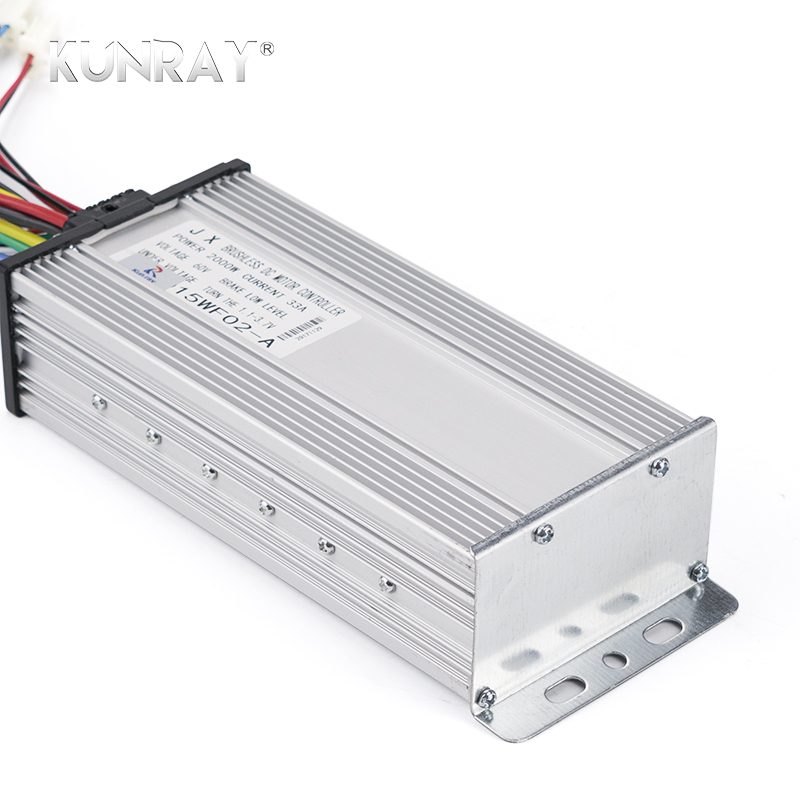

Kunray KRBC-12MOS 30A Brushless Motor Controller 36V 48V 800W-1600W for Electric Bicycle Scooter Accessories

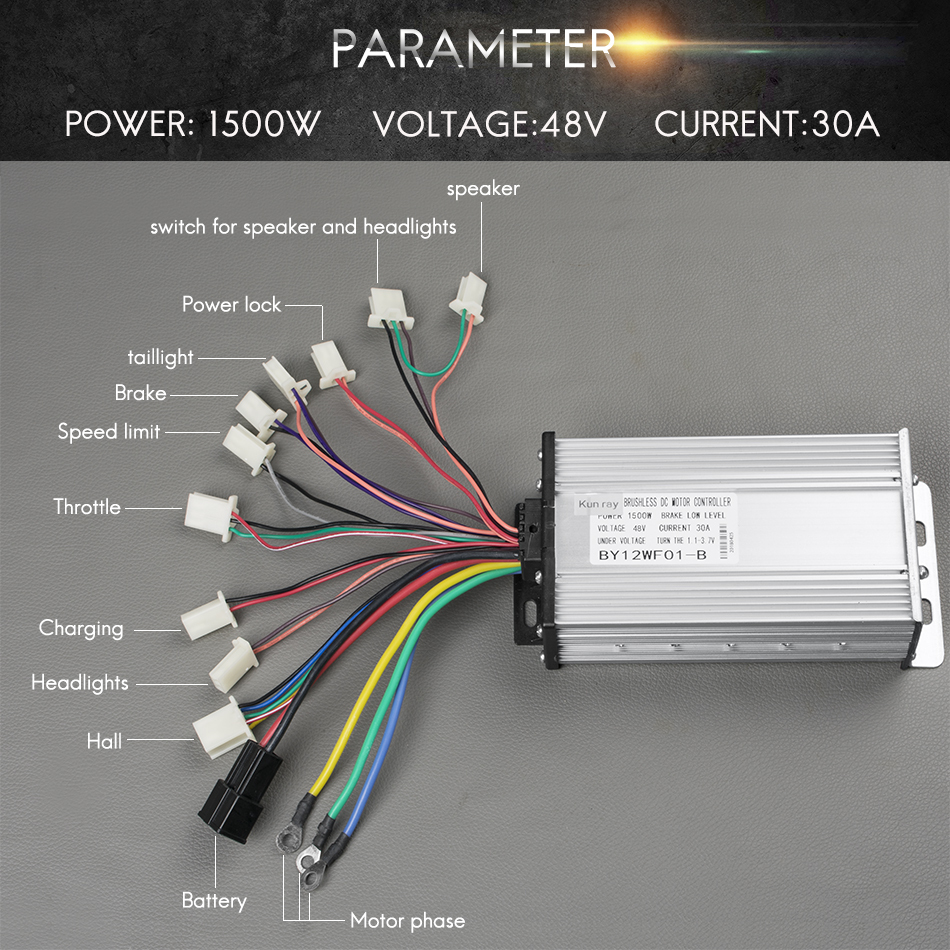

Wiring instructions:

1.Batter:Black+Red (big)
2.Motor: Yellow green blue (big)
3.Hall: red black yellowgreen blue (2.8B-6)
4.Throttle: red black green (2.8B-3)
5.Linited Speed: black gray Orange (2.8B-3)
6.Power Lock : red v+ orange vcc (2.8B-2)
7.Brake: black GND +purple SL (2.8B-2)
8.BUTTON: Green orange(VCC) (2.8B-2)
9. Light : Green Orange(CVV) (2.8B-2)
10.Charge: red (V+) BLACK(GND) (2.8B-2)
Note: reference controller wire plug sticker and Wiring instructions.
Wiring errors that cause product damage do not provide after-sales service.
